Overview

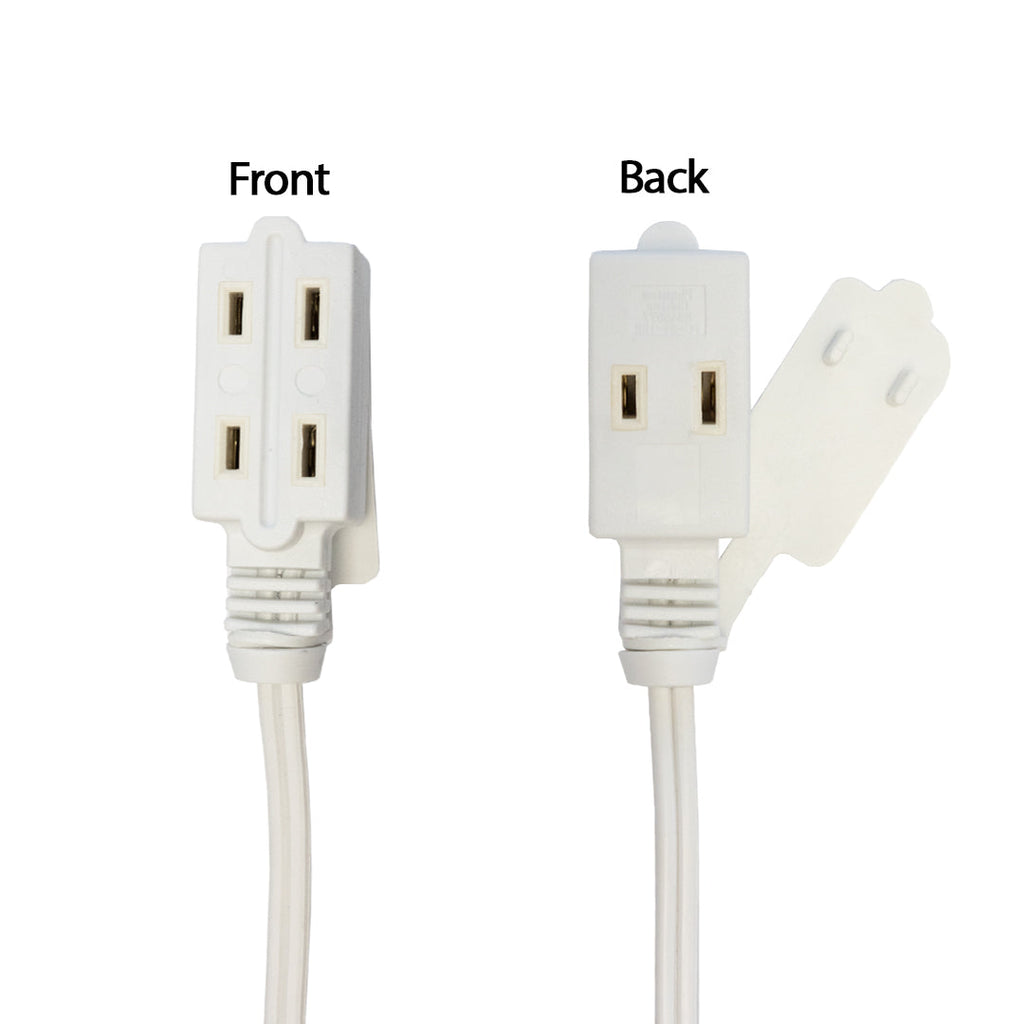

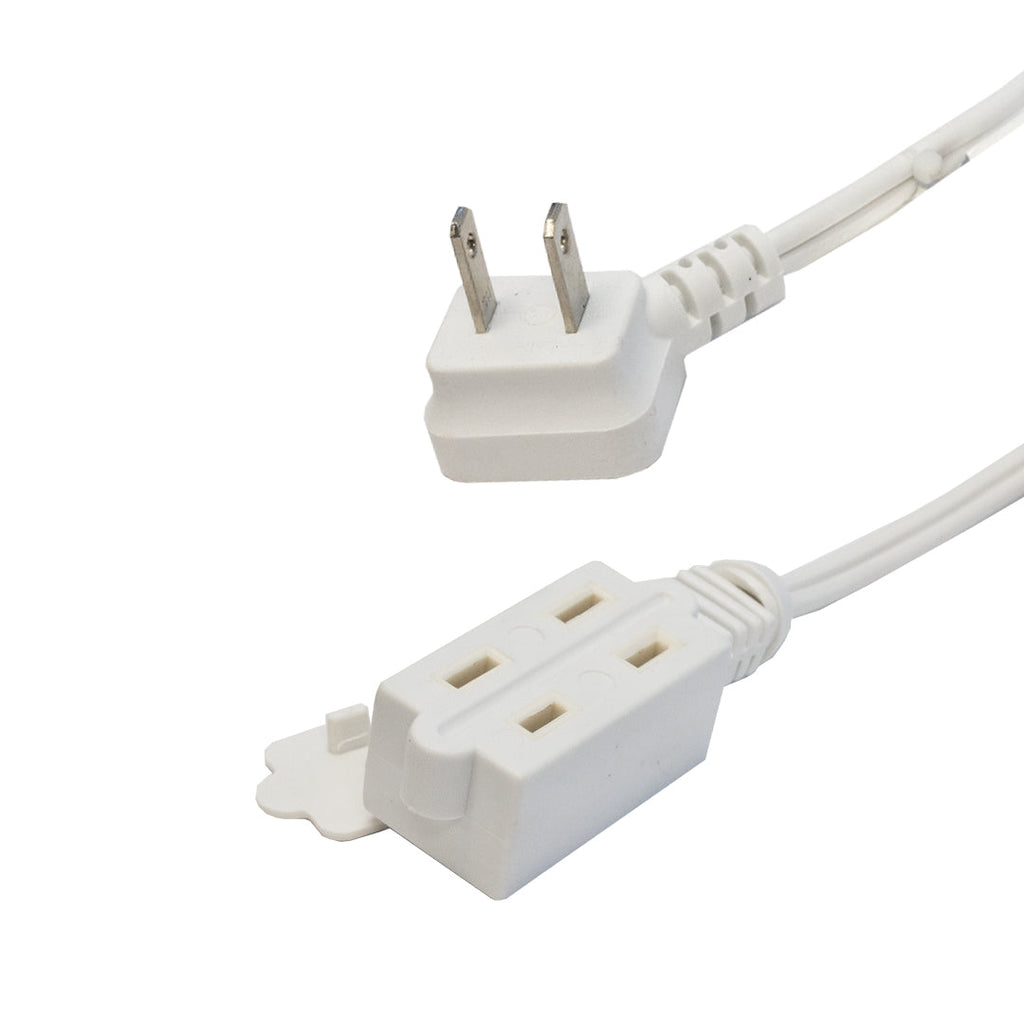

This power cord consists of a 45 degree 1-15P male on one end and a power tap that consists of three 1-15R female on the other end. It is typically used as a power extension cord. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. Premium quality connectors are used to ensure a secure fit. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Heavy Duty SPT-2 JacketMolded strain relief combined with a SPT-2 jacket makes for a high quality, robust cable. 100% Continuity and High Voltage TestedAll cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping. c(UL)us ApprovedBoth cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | White |
| Wire Gauge | 16 AWG |
| Jacket | SPT-2 |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Conductor Material | 100% bare copper |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Connector(s) | |
| Connector A | 1 - NEMA 1-15P (45 Degree Angle) |
| Connector B | 3 - NEMA 1-15R (Power Tap) |
| Performance | |
| Power Rating | 13 Amp / 125 Volt |
| Approvals | |
| 1-15P | c(UL)us |
| 1-15R | c(UL)us |
| Cable | c(UL)us |
| ISO | ISO 9001:2015, ISO 14000 |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
