Description

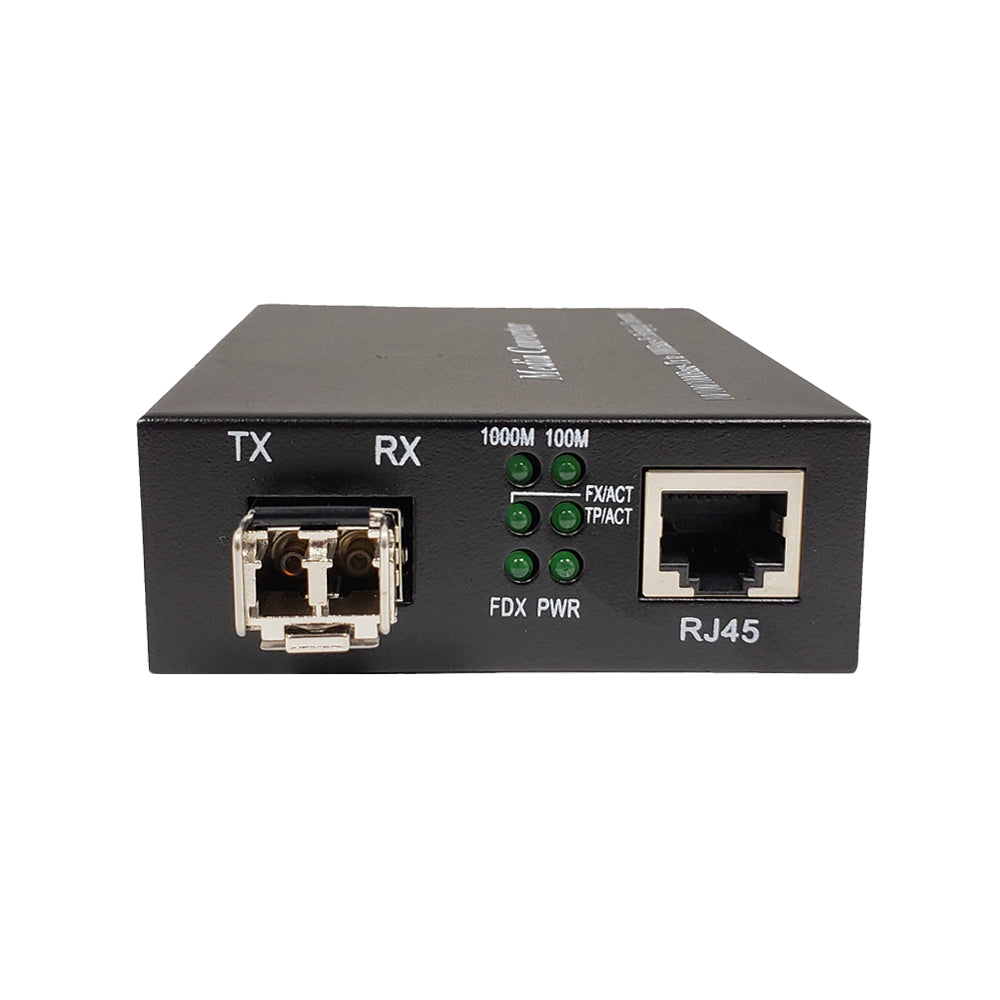

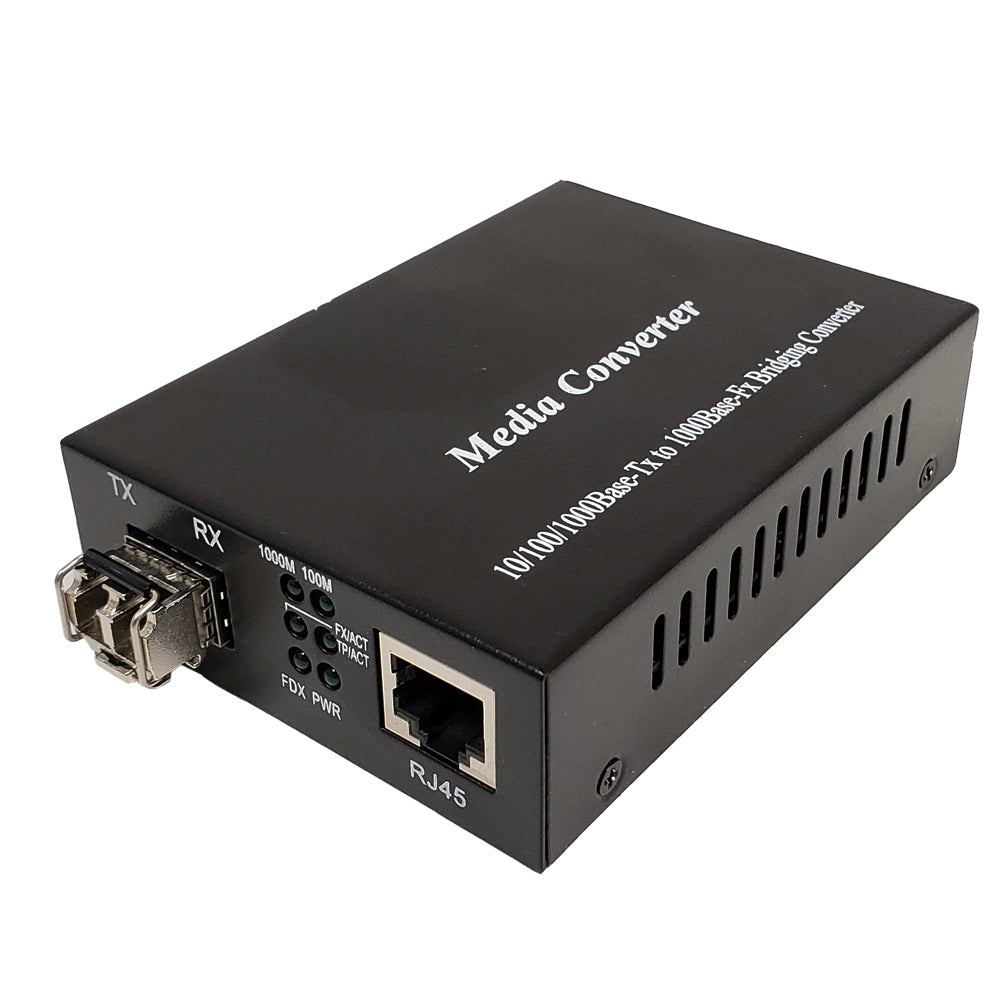

This multimode fiber optic media converter can extend a 10/100/1000 Mbps Ethernet connection up to 550m over a multimode LC fiber optic cable. The converter can be used as a standalone unit or in pairs.
Features
- Supporting inter-conversion between10/100/1000Base-TX and 1000Base-SX
- Supporting full-duplex and half-duplex and its auto-sensed
- Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
- Supporting the transmission of extra-long VLAN packets
- Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
- Supporting STP to form a redundant network
| Physical Characteristics | ||
|---|---|---|
| Color | Black | |
| Dimensions | 94mm x 70mm x 26mm (L x W x H) | |
| Housing | Metal | |
| Operating Temperature | -10℃ ~ 55℃ | |
| Relative Humidity | 5% to 90% (non-condensation) | |
| Standards |
IEEE802.3ab 1000Base-T |
|
| Power | ||
| Power Supply |

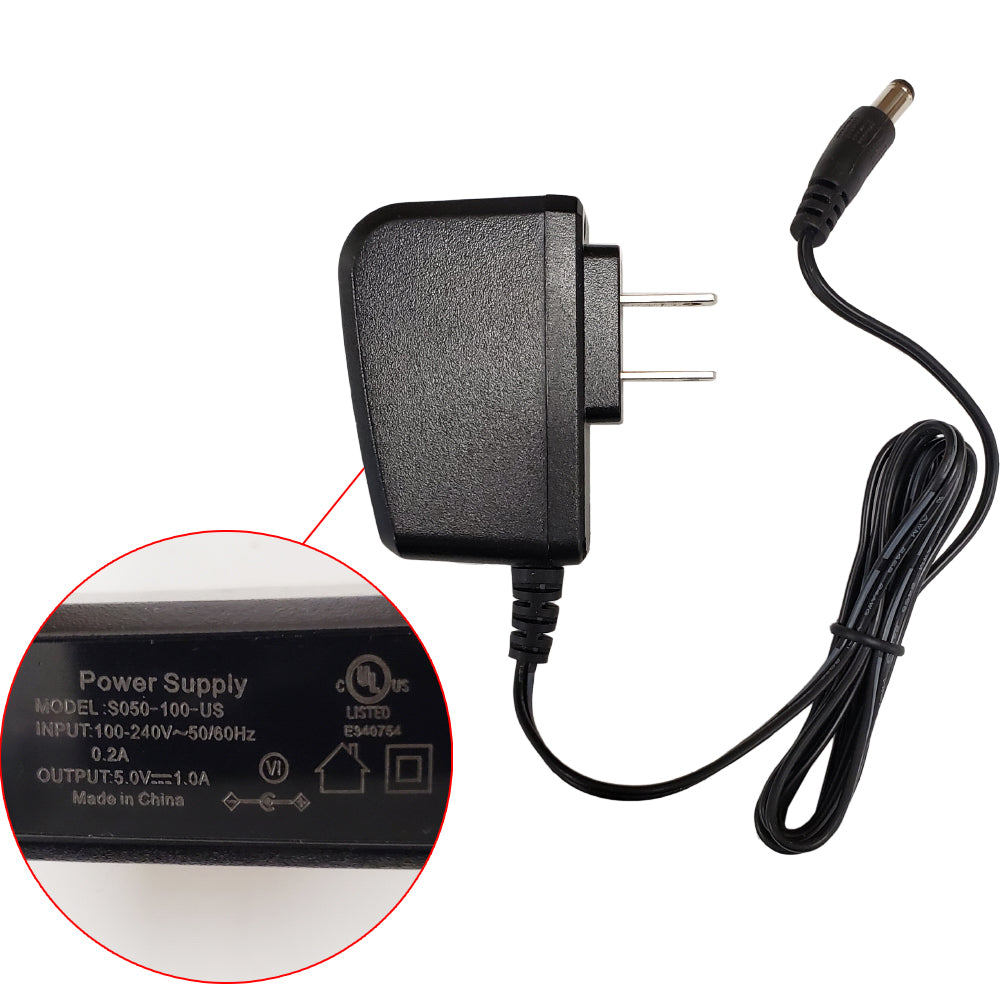

Input: 100-240VAC 50/60Hz |
|
| Power Consumption | 5W | |
| Connectors | ||
| Fiber Connector | LC | |
| Ethernet Connector | RJ45 STP/UTP | |
| Performance | ||
| Media Supported | 10/100/1000Base-T and1000Base-SX/LX |
|
| Referenced Transmission Distance |
Duplex-Fiber 62.5/125 Multimode up to 220m Duplex-Fiber 50/125 Multimode up to 550m |
|
| Data Forward Rate | 10Mbps, 100Mbps, 1000Mbps | |
| LED |
PWR (power supply) FX LINK (optical link action) TP LINK1000 (twisted pair link1000M) TP LINK100 (twisted pair link 100M) TP ACT (twisted pair packet forwarding) |
|
| Certifications | ||
| CE | Compliant | |
| FCC | Compliant | |
| RoHS | Compliant | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.85 lbs [0.03kg] | |
| Warranty Information | ||
| Warranty | 3 Year | |
