Description

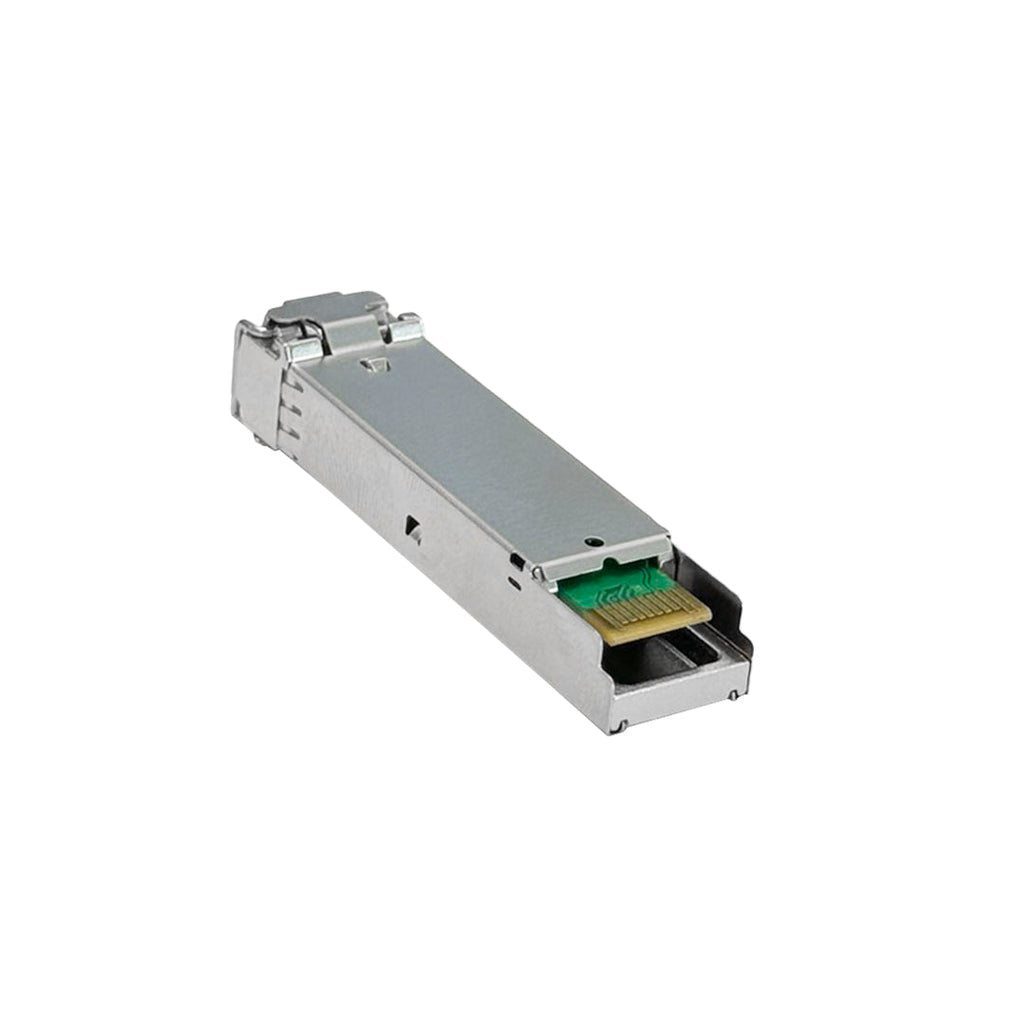

This industrial grade Small Form-factor Pluggable (SFP) transceiver module has a maximum data transfer rate of 1.25 Gbps with extended distance of 40km over singlemode fiber cable and wide temperature range of -40 to 85°C. It is used in compatible network devices with an SFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Features:
- Data-rate of 1.25Gbps operation
- 1310nm DFB laser and PIN photodetector for 40km transmission
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- Compatible with RoHS
- Compatible with SONET OC-24-LR-1
- Operating case temperature: -40 to +85°C
- +3.3V single power supply
Applications:
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
Specifications
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | -40 to 85°C | |
| Operating Humidity | 5% ~ 85% | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector | LC Duplex | |
| Performance | ||
| Media Supported | 1000Base-LX Singlemode Fiber |
|
| Maximum Transmission Distance | 40km |
|
| Wave Length | 1310nm | |
| Data Transfer Rate | 1.25 Gbps | |
| DDM Support | Compliant | |
| Certifications | ||
| CE | Compliant | |
| FCC | Compliant | |
| RoHS | Compliant | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | 5 Year Warranty | |
Spec Sheets
Compatibility List
- Avaya
- Force10
- D-Link
- EMC2
- F5 Networks
- Hirschmann
- Linksys
- Moxa
- MRV
- Netgear
- Nokia Siemens Networks
- Palo Alto Network
- Qlogic
- RAD
- Ruijie Networks
- Supermicro
- Synology
- Telco Systems
- TP-Link
- Trendnet
- Ubiquit
- WatchGuard
- ZTE
