Description

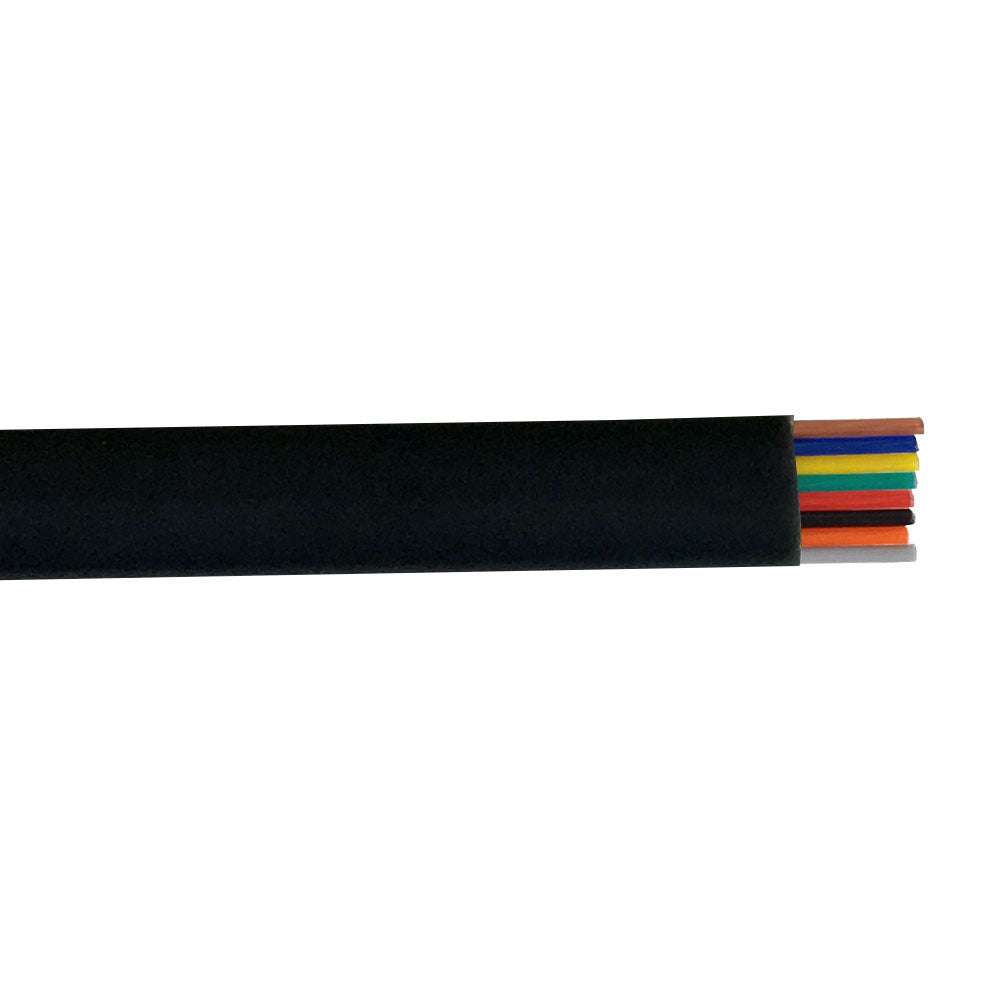

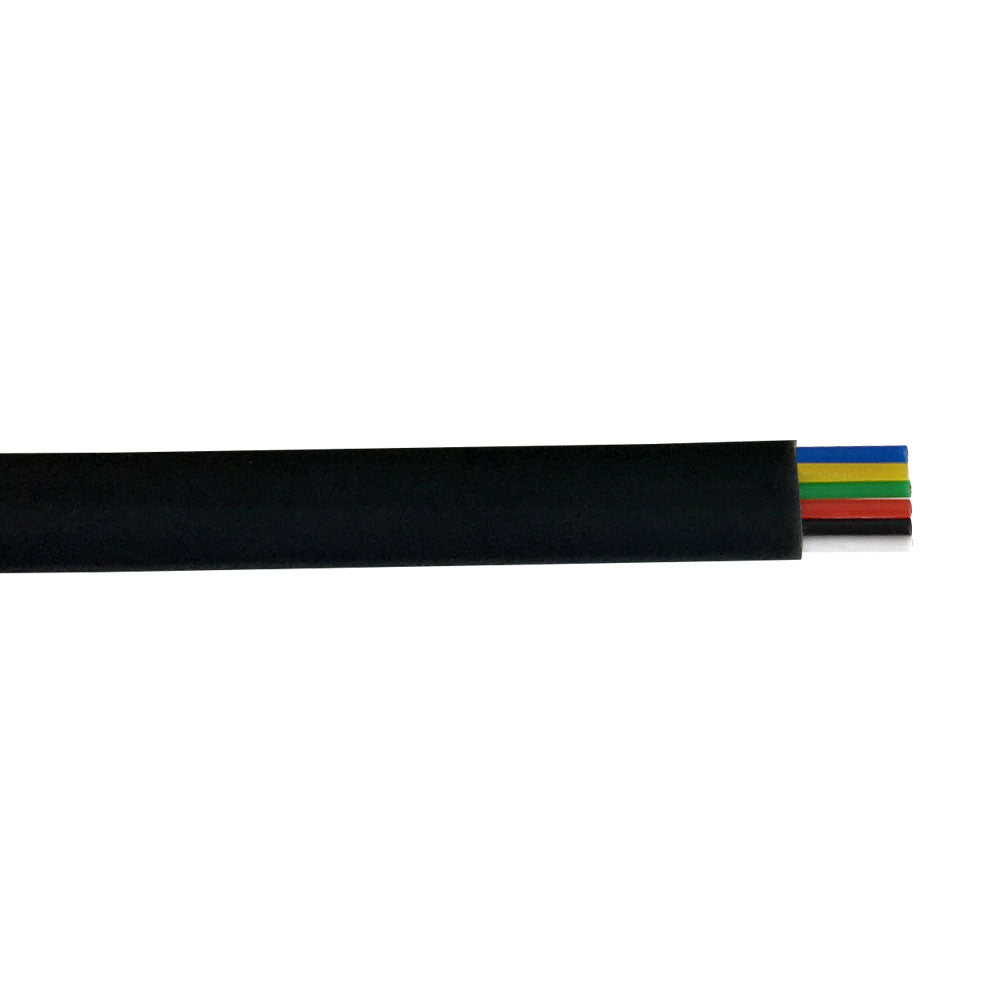

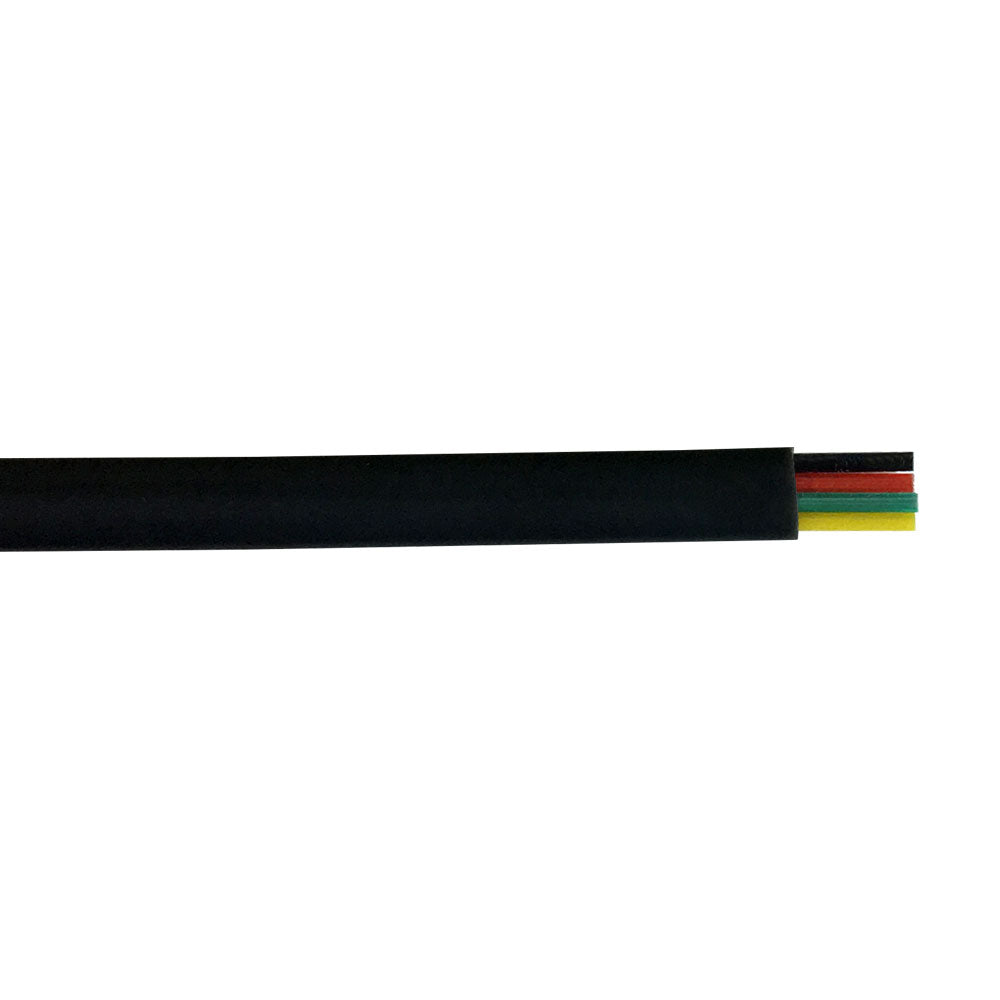

This bulk modular flat phone cable consists 8, 6 or 4 conductors and is 26 gauge. It is typically used to manufacture modular phone/data cables.
| Physical Characteristics | |||
|---|---|---|---|
| Cable Length | 1000 foot [305m] | ||
| Color | Black | Silver Satin | ||
| No. of Conductors Cable Diameter |
4 Conductor 5mm x 2.5mm |
6 Conductor |
8 Conductor |
| Wire Gauge | 26AWG CCA | ||
| Jacket Material | PVC - Polyvinyl Chloride | ||
| Jacket Rating | VW-1 | ||
| Temperature Rating | -10℃ to +60℃ | ||
| Cable Voltage Rating | 150V | ||
| Approvals | |||
| UL | Compliant | ||
| cUL | Compliant | ||
| Environmental | |||
| RoHS | Compliant | ||
| Reach | Compliant | ||
| Conflict Minerals | Compliant | ||
| Packaging Information | |||
| Package Quantity | 1 | ||
| Product Weight | 4 Conductor 9.35 lbs [4.21 kg] |
6 Conductor 14.15 lbs [6.41 kg] |
8 Conductor 17.88 lbs[8.11 kg] |
