Product Weight
Description
- Description
- Spec Sheets
- Warranty

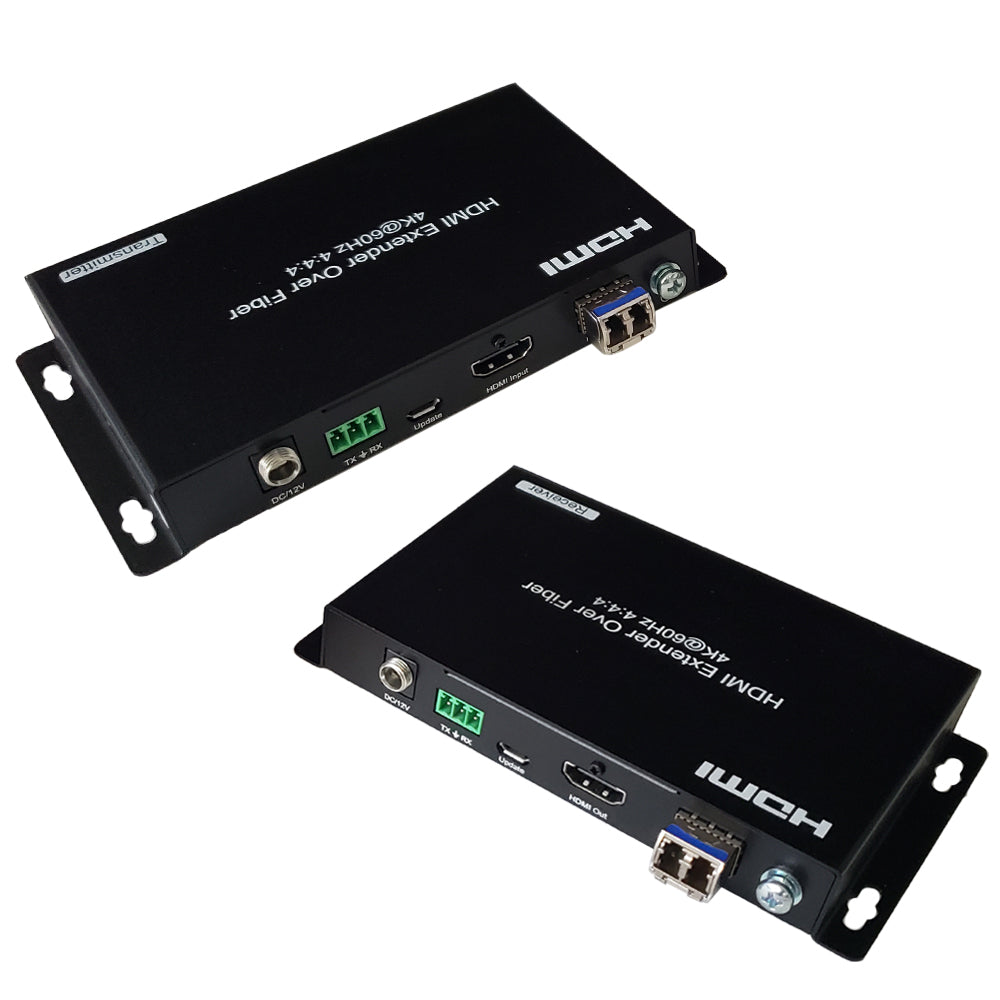

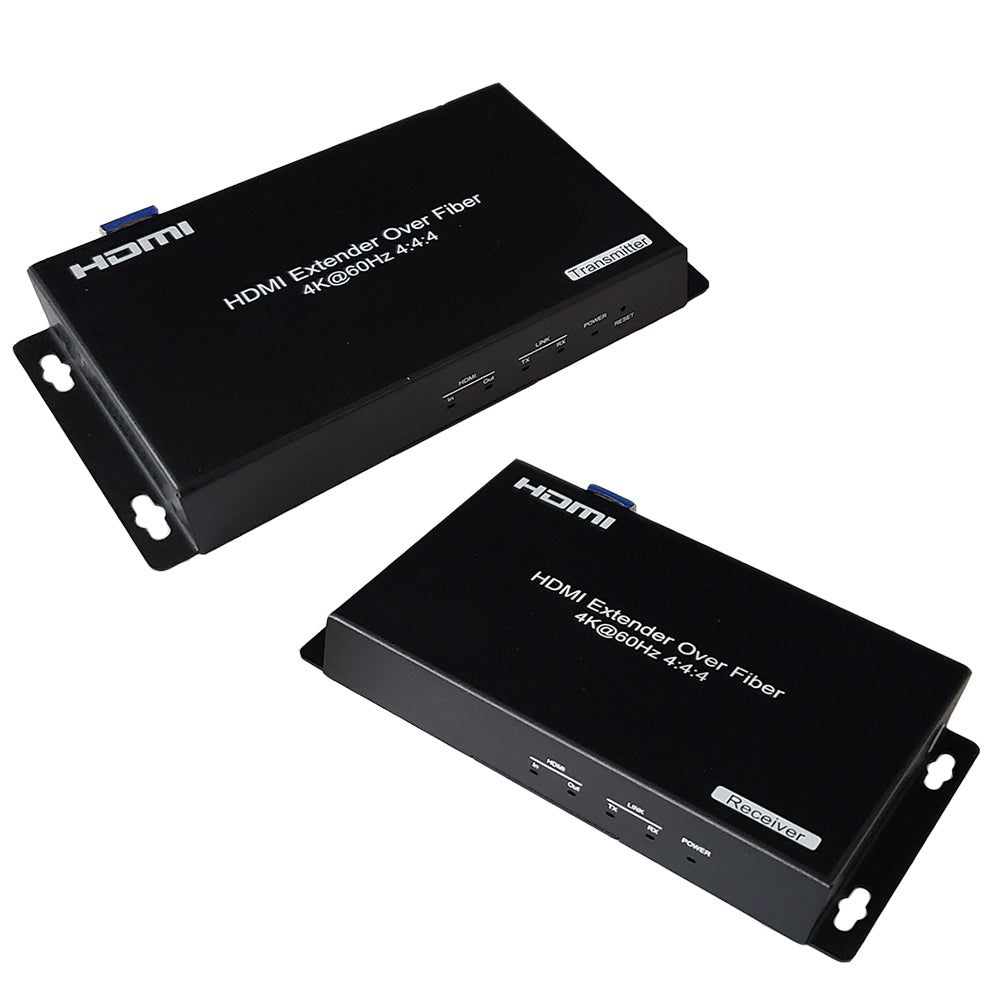

This HDMI extender allows you to extend your display up to 32808ft (10km) away from your source device over singlemode fiber optic cables at a resolution of 4K@60Hz.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Cable Type | LC Duplex Singlemode Fiber Cable |
| Housing | Metal Enclosure |
| Dimensions | Transmitter: 96 x 100 x 21mm Receiver: 96 x 100 x 21mm |
| Operating Temperature | -5℃ ~ 40℃ |
| Operating Humidity | 5 to 90%RH (No Condensation) |
| Power | |
| Power Consumption | Transmitter: 3W (Max) Receiver: 3W (Max) |
| Power Supplies | Input: 100-240V, 50/60Hz 0.4A Output: 12V, 1Amp DC Converter |
| Connector(s) | |
| Transmitter | HDMI Input Female, LC Duplex Female |
| Receiver | HDMI Output Female, LC Duplex Female |
| Performance | |
| Video Resolution | Maximum 4K*2K@60Hz YUV4:4:4 |
| Bandwidth | Up to 18Gbps |
| Audio | LPCM 7.1, Dolby True HD, DTS-HD Master Audio |
| HDCP Compliant | HDCP2.2 In, Out or HDCP 1.4 In, Out |
| Automatic EDID | Compliant |
| Approvals | |
| Power Adapter | c(UL)us, FCC, CE |
| Environmental | |
| RoHS | Compliant |
| Certification(s) | |
| CE | Compliant |
| FCC | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.2 lbs [0.5kg] |
| Contents | |
| Included in Package | 1 - Transmitter |
| 1 - Receiver | |

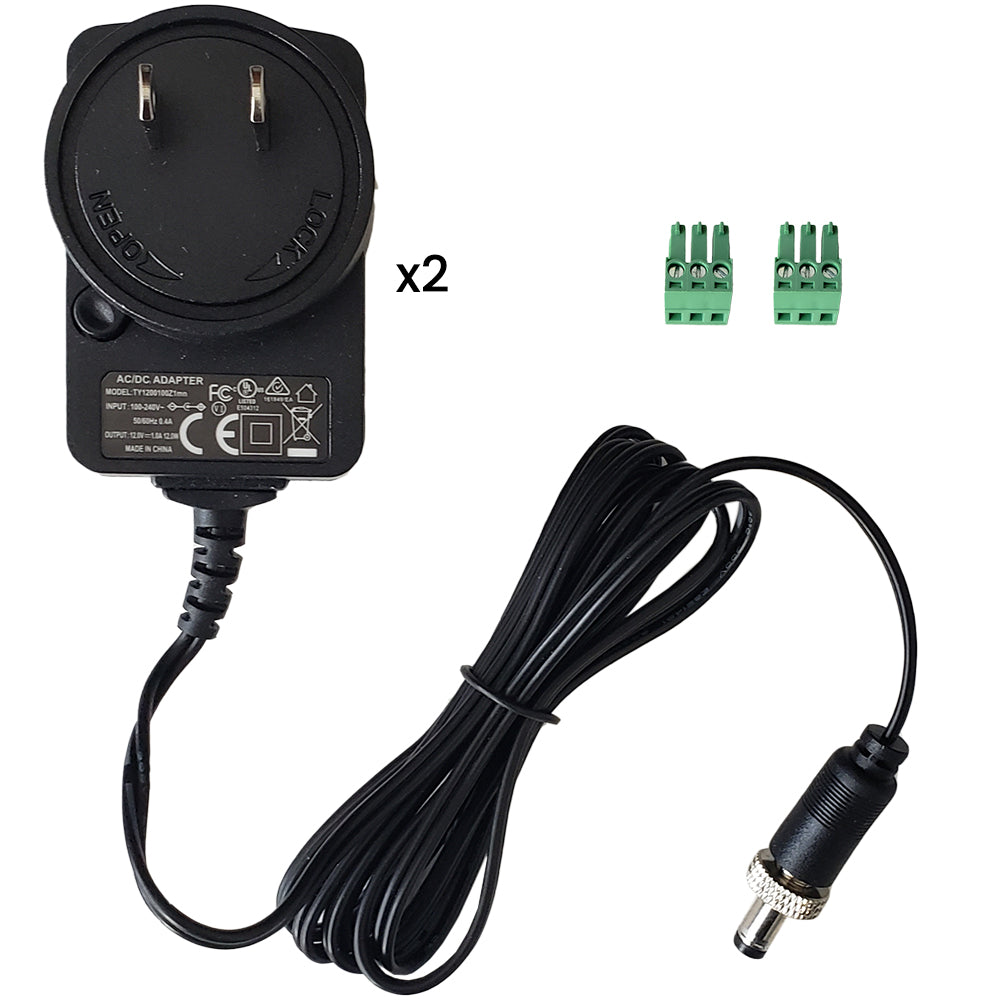

| 2 - DC12V Power Adapter | |
| 2 - Phoenix Plugs | |
| 1 - Manual | |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on NVR/DVR's, network switches and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
