Description

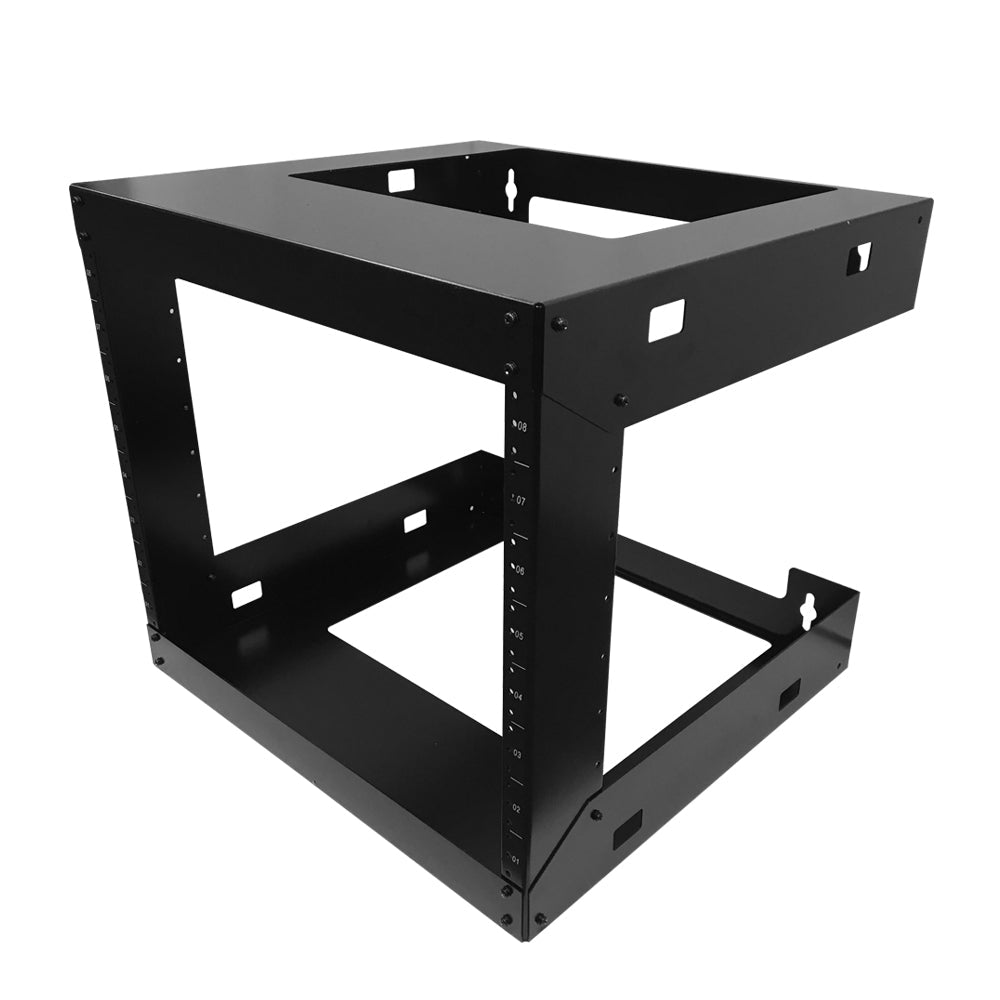

This open frame wall mount rack is 8U in height and 18 inch in depth. It is used for mounting 19 inch wide networking equipment.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Finish | Powder Painted |
| Material | SPCC Cold Rolled Steel |
| Material Thickness | Rails:2.0mm, Others: 1.5mm |
| Mounting Height in units | 8U |
| Mounting Height in inches | 14 inch |
| Mounting Depth | 18 inch |
| Rail Mounting Style | 10-32 Threaded Hole |

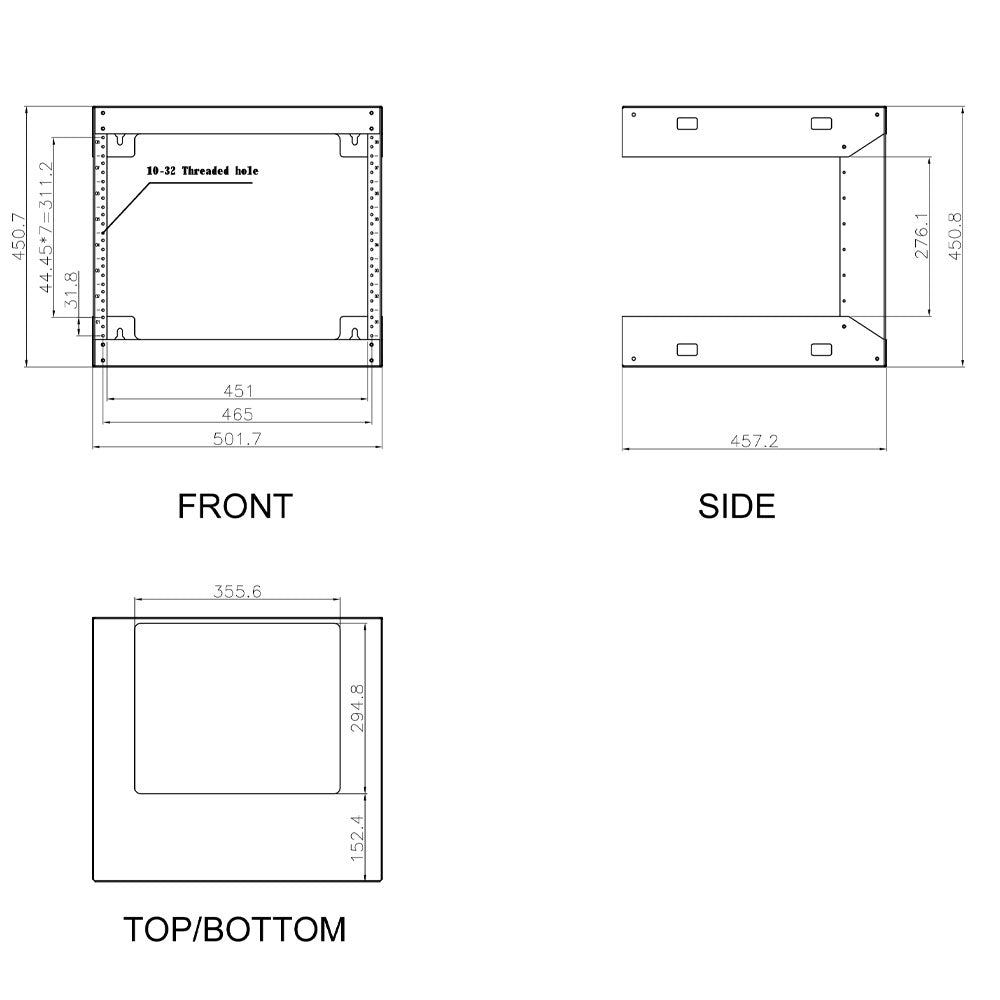

| Overall Dimensions | 17.75H x 19.75W x 18D inch |
| Load Capacity |
150 lbs [68 kg] |
| Wall Mounting Hardware |
Not Included |
| Equipment Mounting Hardware |
Included |
| Approvals | |
| ANSI/ | Compliant |
| RS-310-DCompliant | Compliant |
| IEC60297-2Compliant | Compliant |
| DIN41494Compliant | Compliant |
| PART1Compliant | Compliant |
| PART7Compliant | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 19.84 lbs [9.0 kg] |
| Contents | |
| Included in Package | 1 - Wall Mount Bracket (Un-Assembled, Flat Packed) |
| 16 - Assembly Screws | |
| 20 - 10/32 Screws | |
