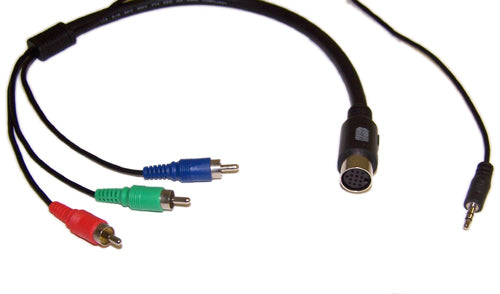

This disconnecting SVGA/UXGA adapter consists of 3 RCA male on one end, a 3.5mm male and a slim locking connector female on the other end. It is typically used to connect with the SVGAD-XX series of cables.
| Physical Characteristics | |
|---|---|
| Cable Length | 1 foot [0.31m] |
| Color | Black |
| Connector Plating | Nickel |
| Wire Gauge - Coax | 3 - 28AWG Mini-Coax |
| Wire Gauge - Conductors | 5 - 24AWG Pairs, 2 - 24AWG Conductors |
| Cable Diameter | 9.0 mm |
| Shielding | 85% Copper Braid, 100% Mylar Foil, Ferrite Cores |
| Jacket Fire Rating | CL2/FT4 |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Connector(s) | |
| Connector A |
3 - RCA (Red,Green,Blue) Male |
| Connector B |
1 - Slim Line Connector Female 1 - 3.5mm Male |
| Performance | |
| Resolution | 1600 x 1200px |
| Impedance | 75 ohm |
| Approvals | |
| c(UL)us | Approved Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 - Cable |
| Product Weight | 0.15 lbs [0.07kg] |
| Warranty Information | |
| Warranty | Limited Lifetime |
