Description

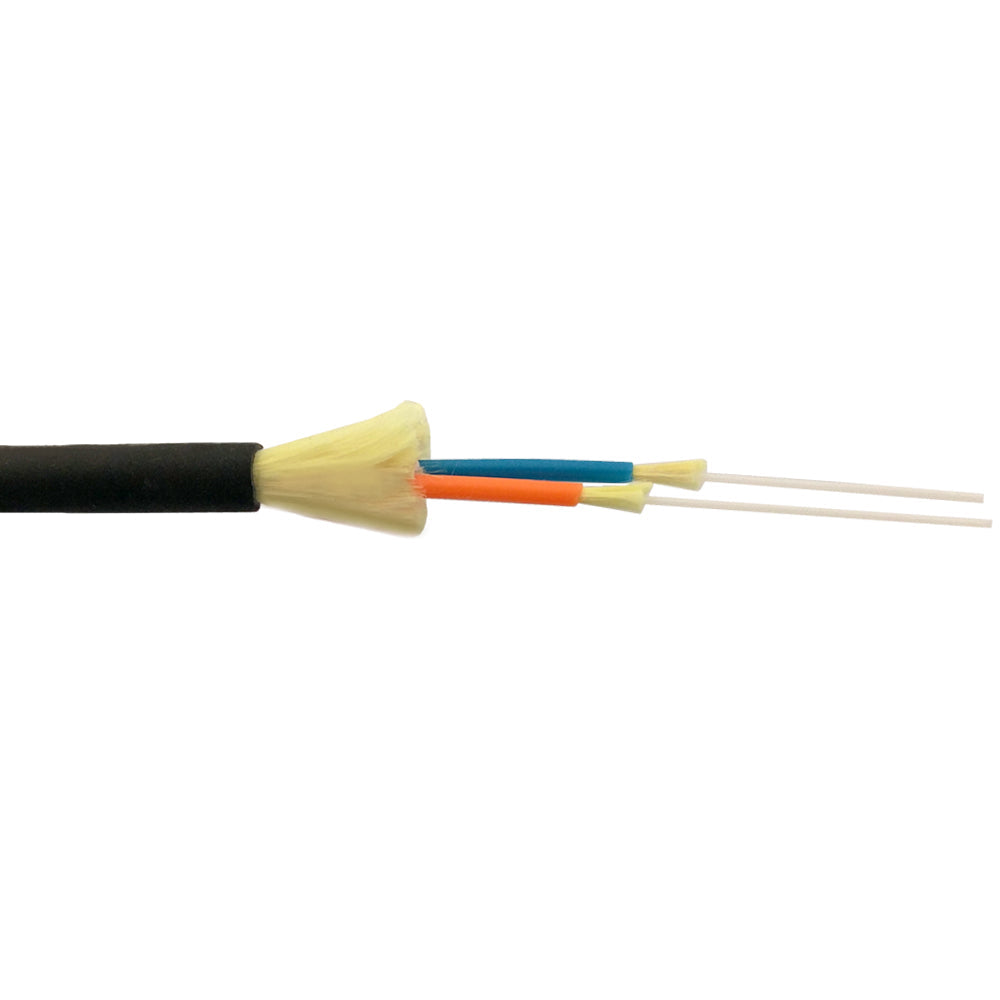

This bulk 2-strand OM1 tactical fiber cable can be used outdoors in permanent or temporary applications. Ideal for use in installations where extreme Product Support conditions are present. Common applications for this cable include installation on outdoor service poles, field deployment in abusive environments, high traffic areas, security and sensing applications, broadcast deployments and temporary installation of critical communications lines where quick retrieval and re-use is necessary.
Features
- Cut resistant polyurethane jacket
- Highly flexible construction allows for multiple deployments
- All aramid strength members
- Performance in wide temperature range
- High impact and crush resistance
- Durable in high traffic areas
- Perfect fit for IP67 fiber optic connectors

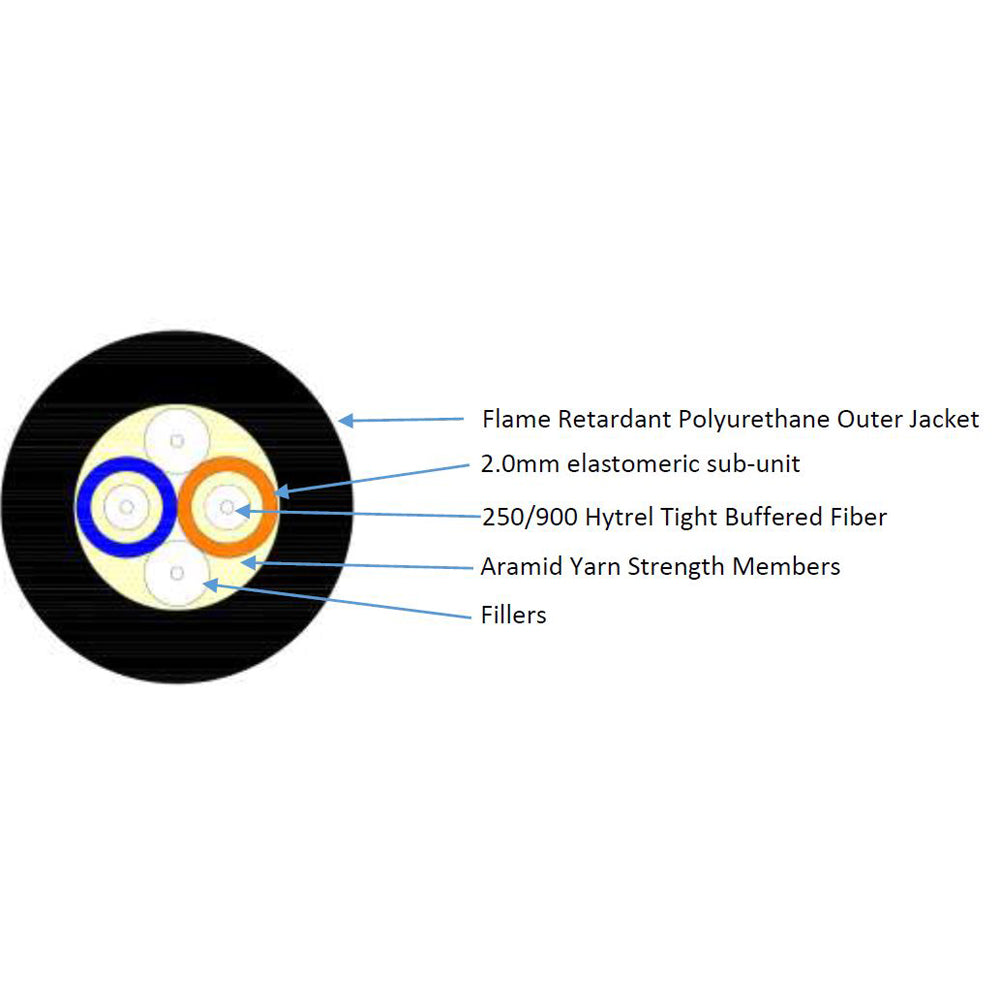

| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OM1 62.5 micron multimode Tactical AFL Cable |
| Fiber Count | 2-Strand |
| Glass Fiber | Corning InfiniCor |
| Nominal Diameter | 6.4mm |
| Sub Unit Diameter |
2.0mm |
| Tension(Installation) | 490 lbs |
| Tension(Long Term) | 120 lbs |
| Bending Radius | 6.4cm |
| Operating Temperature | -55℃ ~ +85℃ |
| Storage Temperature | -60℃ ~ +85℃ |
| Attenuation Range | @850nm 3.5dB/km @1300nm 1.2dB/km |
| Bandwidth Range | @850nm > 200 MHz/km @1300nm > 600 MHz/km |
| Gigabit Ethernet Min. Link Distance | 850nm = 300 1300nm = 550 |
| 10 Gigabit Ethernet Min. Link Distance | 850nm = 32 |
| Certification(s) | |
| ETL | Compliant |
| c(ETL) | Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | USA |
Spec Sheets
Open here
