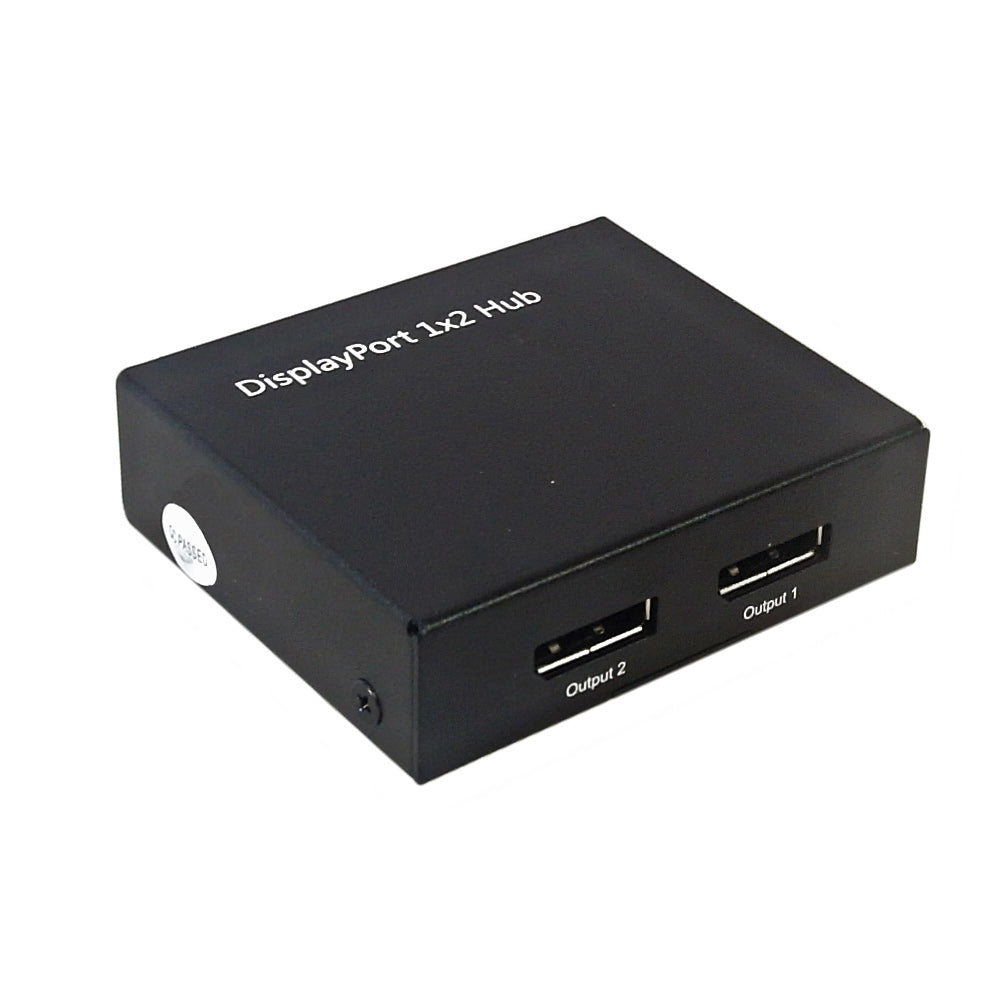

This two port DisplayPort hub is designed for transmitting signals from one DisplayPort source device to two DisplayPort displays. This hub has both SST and MST functions which allow you to display one picture with dual monitors or independent pictures on each monitor respectively. The input port supports DP1.2 and the dual output ports support DP++.
Features
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0°C to +70°C |
| Power | |
| Input Voltage | 125V |
| Power Supply | 5VDC@2A |
| Connector(s) | |

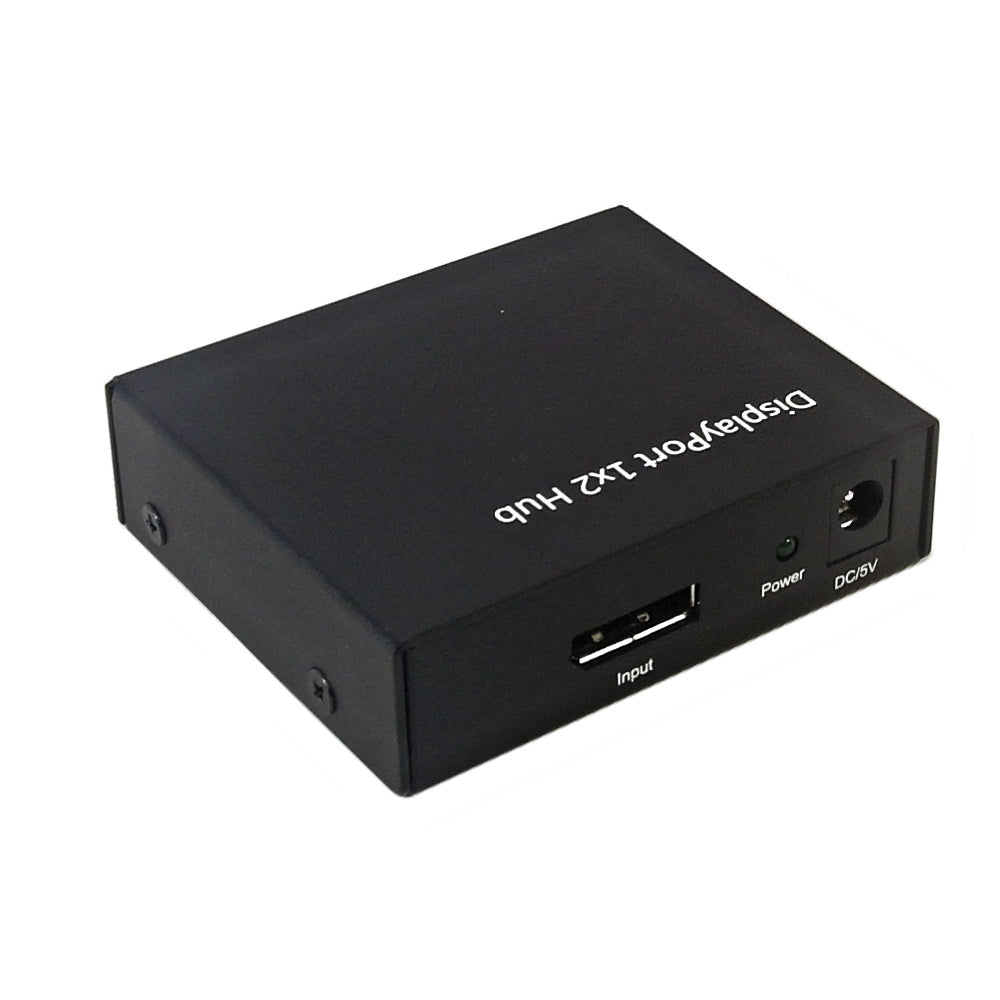

| Input | 1 x DP1.2 Standard type 20 pin female |
| Output | 2 x DP++ |
| Performance | |
| DisplayPort Resolution | 4k x 2k |
| HDMI Resolution | 4k x 2k |
| Vertical Frequency Range |
50/60Hz |
| Video Amplifier Bandwidth |
5.4Gbps per lane (HBR2) from the source |
| Approvals | |
| Power Adapter | cETLus |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| FCC | Yes |
| UL | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.3 lbs [0.1kg] |
| Package Weight | 0.8 lbs [0.4kg] |
| Contents | |
| Included in Package | 1 - DisplayPort Hub |

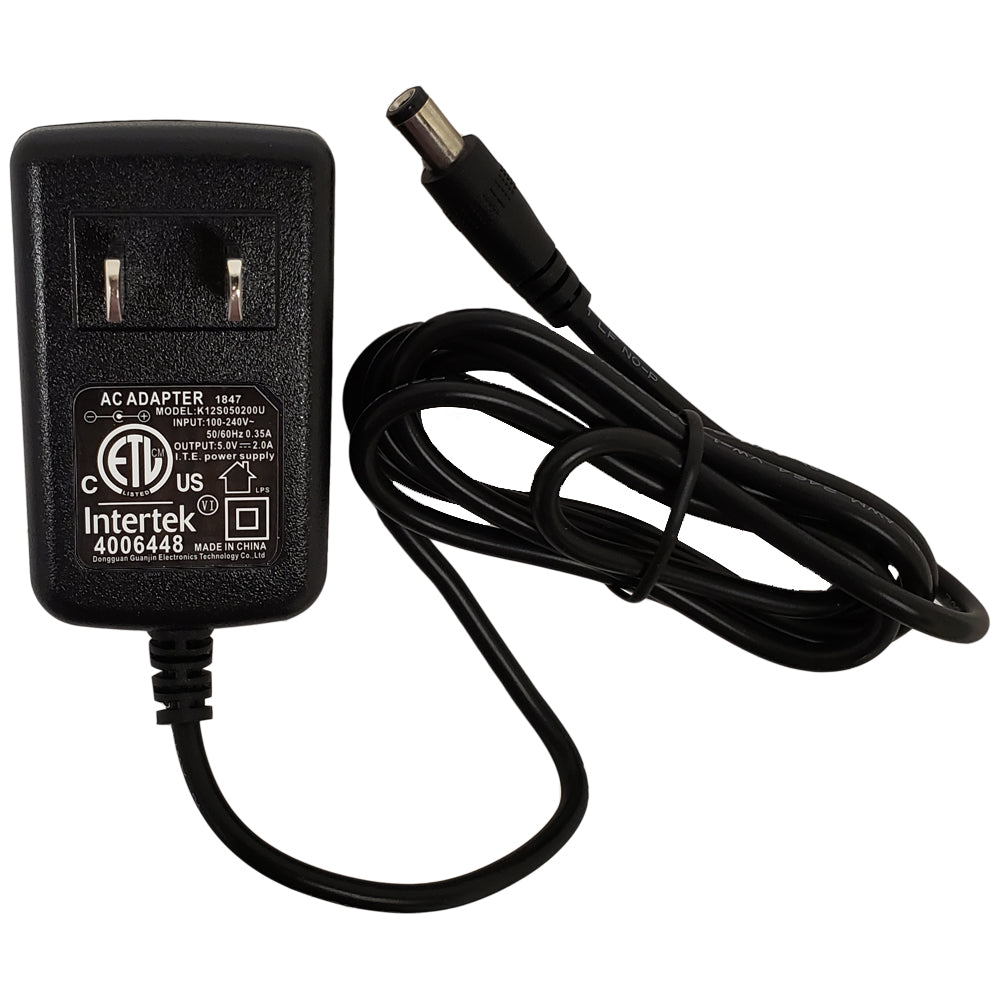

| 1 - DC5V Power Adapter | |
| 1 - Manual | |
One Monitor Works Only
|
Output Signal 1 |
Output Signal 2 |
Highest Resolution |
Highest Resolution |
|
DP1.2 |
DP 1.2 |
4Kx2K@60HZ |
4Kx2K@60HZ |
|
4Kx2K@60HZ |
4Kx2K@30HZ |
||
|
4Kx2K@30HZ |
4Kx2K@60HZ |
||
|
DP 1.2 to HDMI 2.0 |
DP 1.2 to HDMI 2.0 |
4Kx2K@60HZ |
4Kx2K@60HZ |
|
4Kx2K@60HZ |
4Kx2K@30HZ |
||
|
4Kx2K@30HZ |
4Kx2K@60HZ |
Two Monitors Work Simultaneously
Output Signal 1 |
Output Signal 2 |
Highest Resolution |
Highest Resolution |
DP 1.2 |
DP1.2 |
4Kx2K@30HZ |
4Kx2K@30HZ |
DP 1.2 to HDMI 2.0 |
DP 1.2 to HDMI 2.0 |
4Kx2K@30HZ |
4Kx2K@30HZ |
DP 1.2 to HDMI 1.4 |
DP 1.2 to HDMI 1.4 |
4Kx2K@60HZ(Practical output is 4KX2K30HZ |
4Kx2K@60HZ(Practical output is 4KX2K30HZ |
DP 1.2 to HDMI 1.4 |
DP 1.2 to HDMI 2.0 |
4Kx2K@30HZ |
4Kx2K@30HZ |
DP 1.2 to HDMI 2.0 |
DP 1.2 to HDMI 1.4 |
4Kx2K@30HZ |
4Kx2K@30HZ |
