Description
Overview

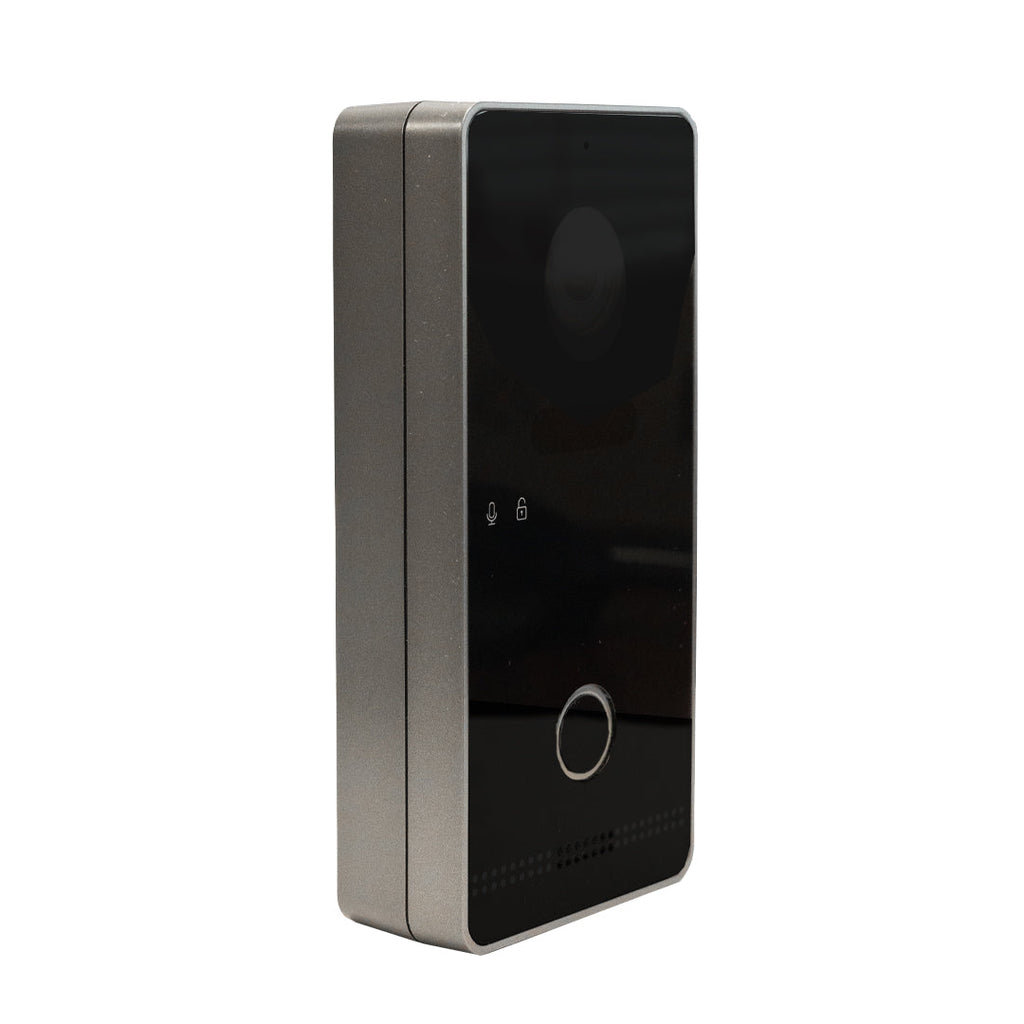

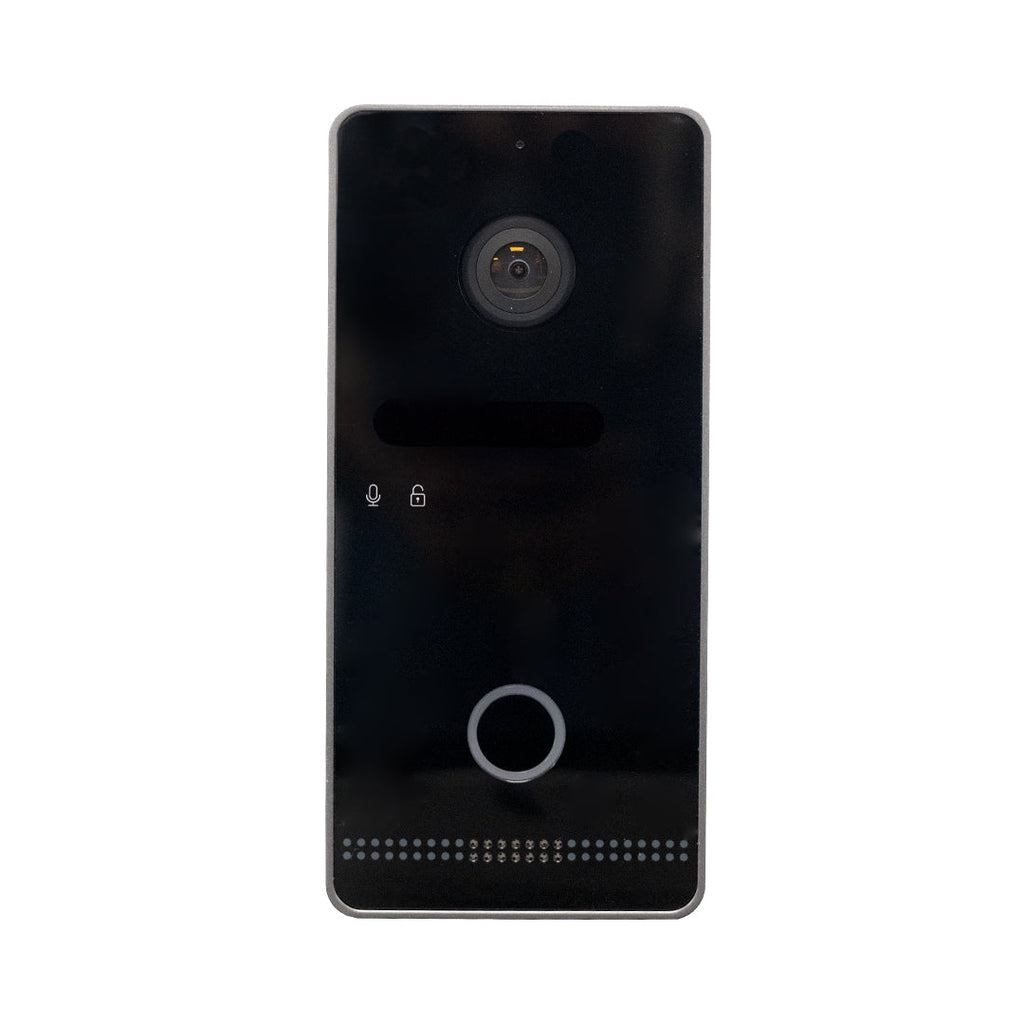

This 2MP Video Doorbell featuring Ethernet and WiFi connectivity. This sleek, black doorbell offers 2-way talk, smart IR night vision, and an IP65 protection grade for reliable performance in any weather. With a wide-angle view of 125° horizontal and 72° vertical, you'll never miss a visitor. The device supports H.265 and H.264 video compression and is powered by POE IEEE 802.3af, DC12-48V, or AC12-36V. Perfect for any home, it operates in temperatures from -30°C to 60°C and supports a wireless chime.
Features
- 2MP resolution with smart IR night vision
- Ethernet/WiFi connectivity for flexible installation
- 2-way audio communication
- IP65 weatherproof and IK07 impact-resistant
- Wide-angle view: H:125°, V:72°
- Supports H.265 and H.264 video compression
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Dimensions |
133 x 63 x 28mm |
| Operating Temperature |
-30°C ~ 60°C |
| Working Humidity |
10%RH – 90%RH (non-condensing) |
| Protection Grade |
IP65; IK07 |
| Power Supply |
POE IEEE 802.3af / DC12-48V / AC 12-36V |
| Angle of View | H:125°, V:72° |
| Video Compression Standard | H.265 (default), H.264 |
| Night Vision | Smart IR |
| Network | 10M / 100M adaptive belt POE |

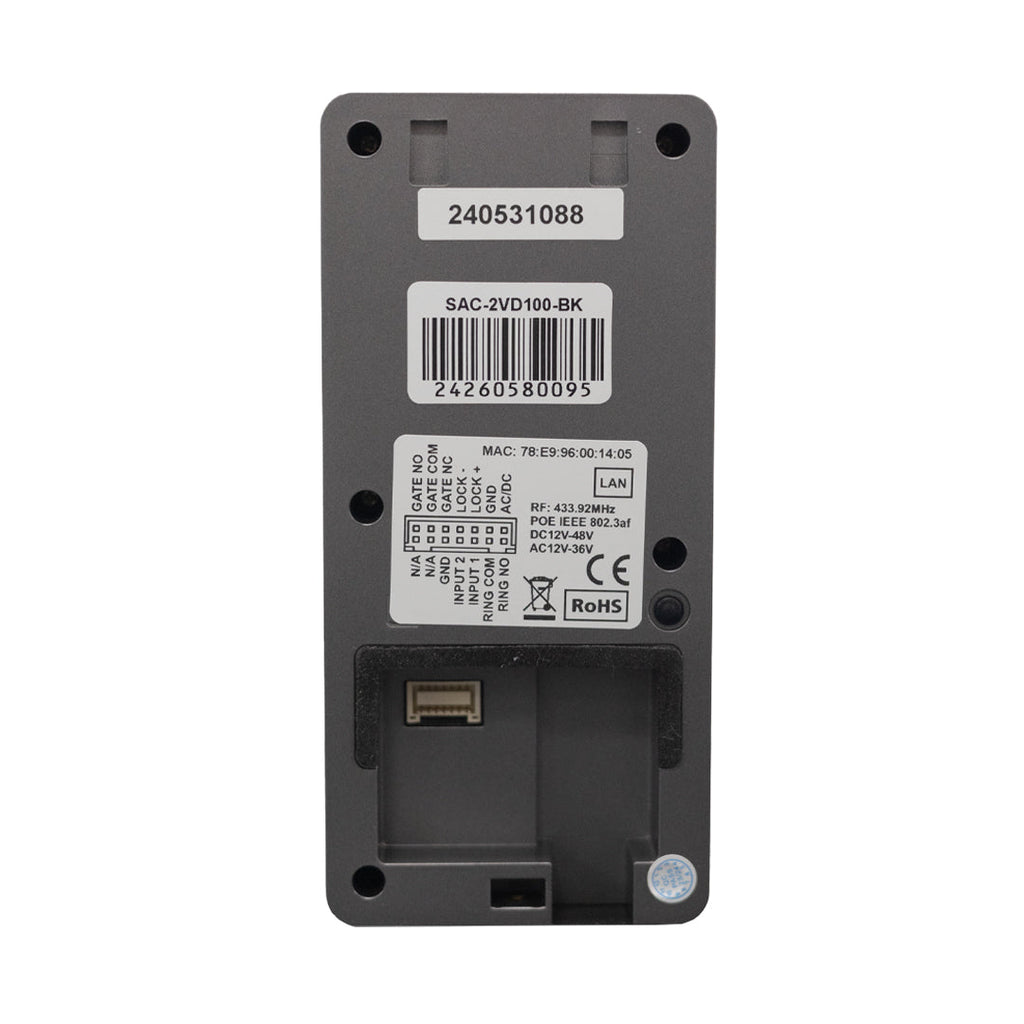

| Gate | NO/NC (MAX AC/DC30V 4A) |
| Output Unlocking | NO: MAX DC12V 120mA (Transient current: 700mA-40ms) |
| Chime | NO (MAX AC/DC30V 4A) |
| Wireless Chime | RF433.92MHz Transmitter |
| Support SD Card | Yes, Micro SD |
| Approvals | |
| CE | Compliant |
| FCC | Compliant |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
|
Product Weight |
0.83 lbs [0.37kg] |
