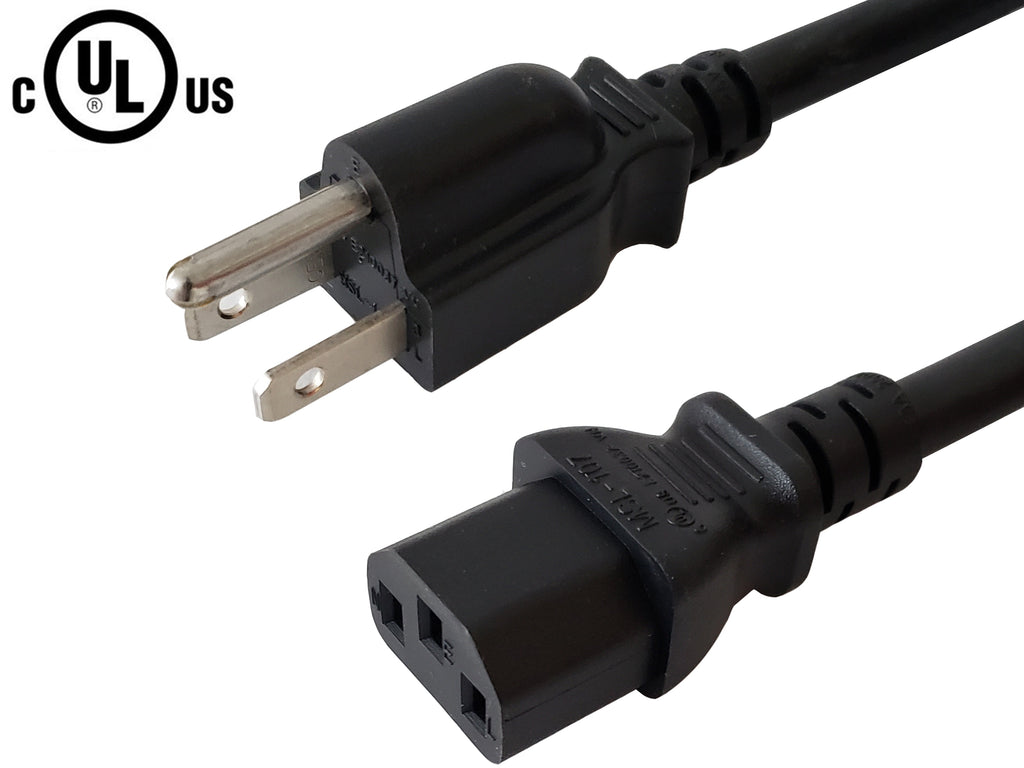

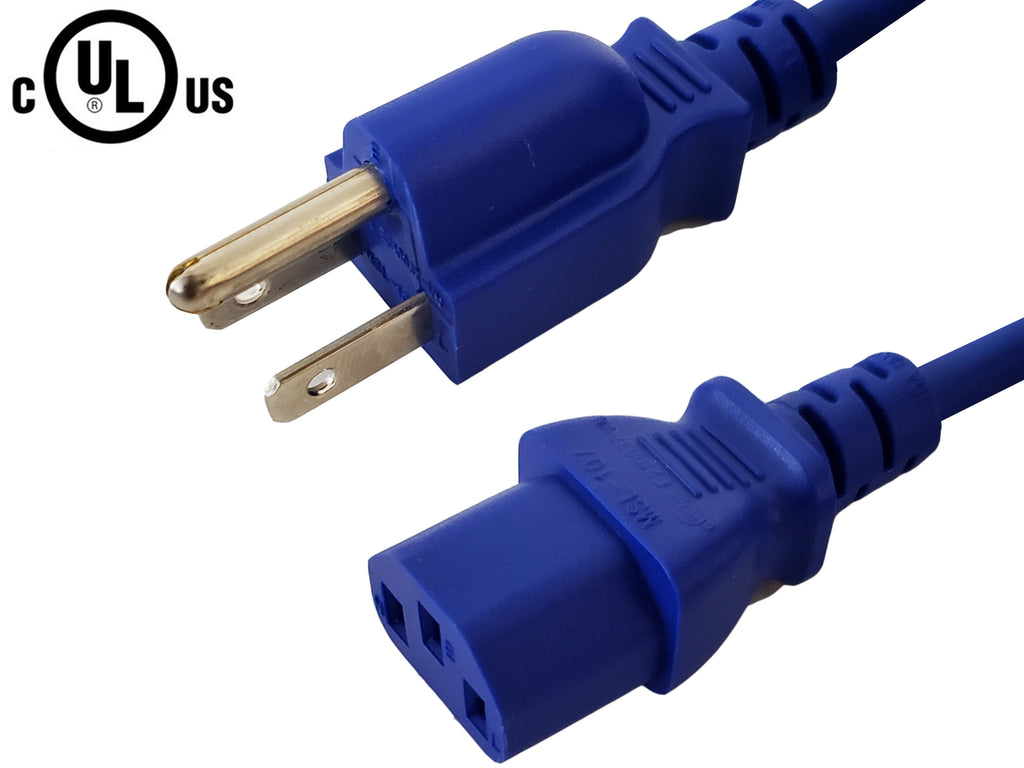

This power cord consists of a 5-15P male on one end and a C13 female on the other end. It is typically used to connect a networking equipment such as a server to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
| Physical Characteristics | |
|---|---|
| Color | Black/ Blue |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 14AWG (PWC-105C-CT) 18AWG (PWC-105-CT) |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Conductor Material | 100% bare copper |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector(s) | |
| Connector A | IEC 60320 C13 |
| Connector B | NEMA 5-15P |
| Performance | |
| Power Rating | 10 Amp / 125 Volt (PWC-105-CT) 15 Amp / 125 Volt (PWC-105C-CT) |
| Approvals | |
| C13 | c(UL)us |
| 5-15P | c(UL)us |
| Cable | c(UL)us |
| ISO | ISO 9001:2015, ISO 14000 |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft |
|---|---|---|---|---|
| 0.20 lbs | 0.40 lbs | 0.70 lbs | 1.00 lbs | 1.57 lbs |
