500ft 12.5Pr Lowcap 24AWG Stranded Foil Shield Data Cable FT4 - Black
500ft 12.5Pr Lowcap 24AWG Stranded Foil Shield Data Cable FT4 - Black
500ft 12.5Pr Lowcap 24AWG Stranded Foil Shield Data Cable FT4 - Black
500ft 12.5Pr Lowcap 24AWG Stranded Foil Shield Data Cable FT4 - Black

500ft 12.5Pr Lowcap 24AWG Stranded Foil Shield Data Cable FT4 - Black

Data Bulk CableSKU: BK-DT12.5P24L-500BK
No reviews
Price:
$499.60
Stock:
Sold out

Product Weight

BK-DT12.5P24L-500BK
45.19 lb

Description

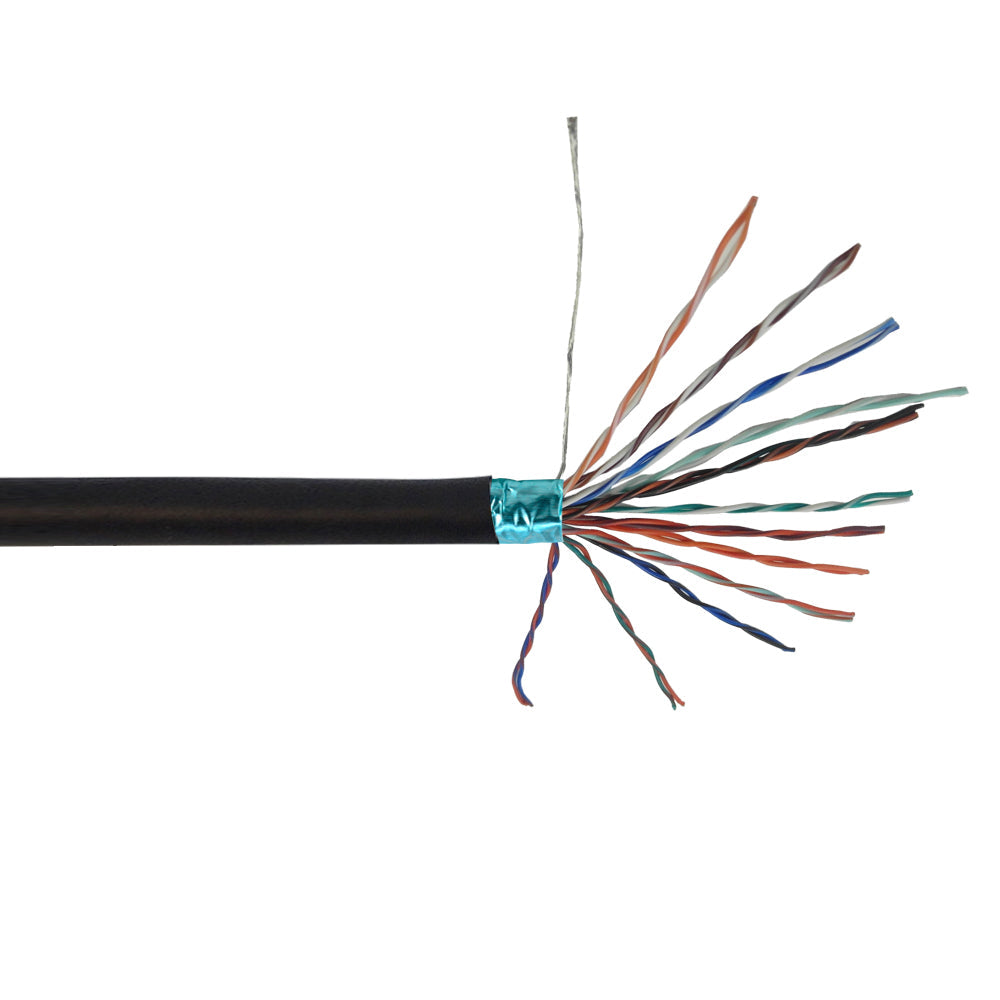

This bulk low-cap data cable is 500ft in length and consists of 12.5 pairs of 24 gauge stranded with foil shield wire. It is typically used to interconnect RS-232 data applications.

Physical Characteristics
Cable Length 500 foot [152.4m]
Color Black
Cable Diameter 9.50 mm
Number of Pairs 12.5 Pairs
Wire Gauge 24AWG
Conductor Material Tinned Copper
Stranding Count & Diameter 7/0.205±0.008
Jacket Material PVC - Polyvinyl Chloride
Jacket Rating CMR/CL3/FT4 [Riser Rated]
Cable Shielding 100% Mylar Foil
Temperature Rating 75℃
Electrical Features
Voltage Rating
 30V
Dielectric Strength AC-500V/MIN
Insulation Resistance 10 M (OHMS*KM MIN at 20℃)
Approvals
c(UL)us Compliant
Environmental
RoHS Compliant
Packaging Information
Package Quantity 1
Product Weight 45.19 lbs [20.5kg]
