Description

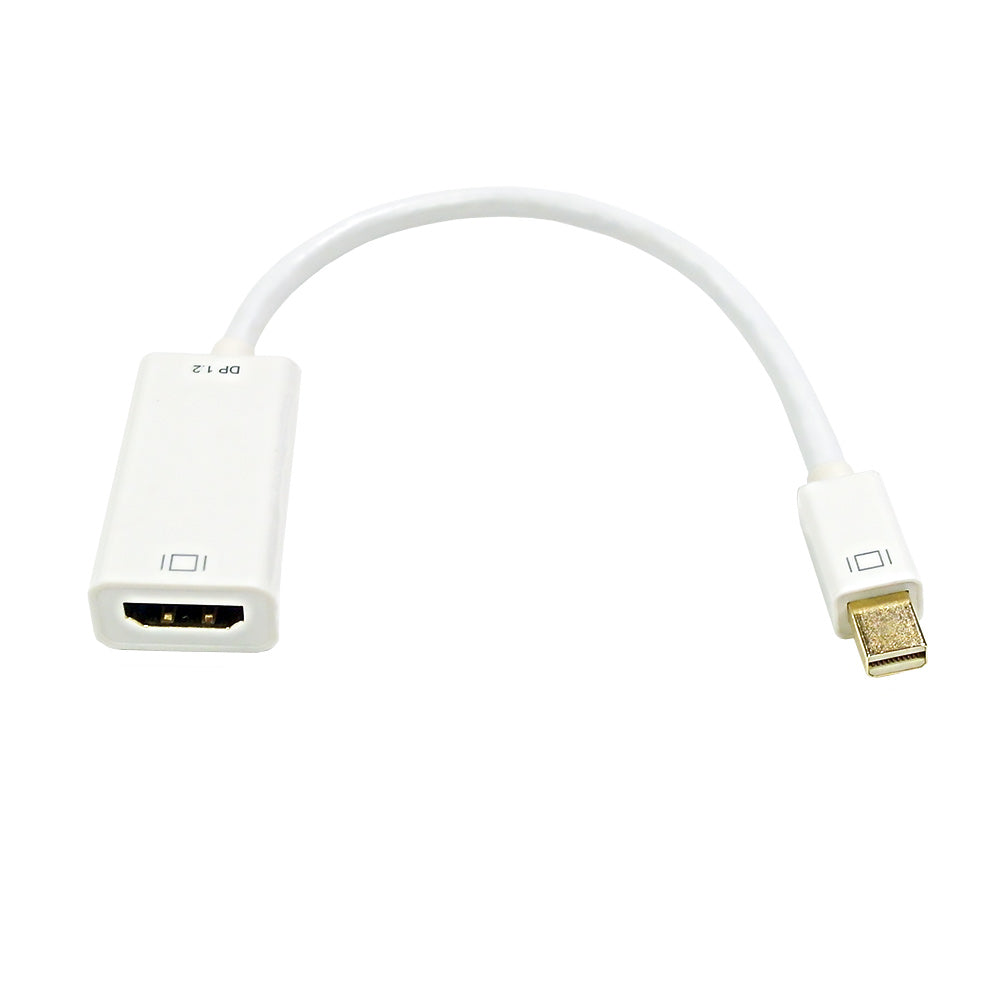

This adapter consists of a Mini DisplayPort male on one end and a HDMI female on the other. It is primarily used to adapt a 4kx2k Mini DisplayPort source to a HDMI display.
*Please note: Only 4Kx2K source media will display 4Kx2K resolution
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | White |
| Connector Plating | Nickel |
| Connectors | |
| Connector A | Mini DisplayPort Male v1.2 |
| Connector B | HDMI Female v1.4b |
| Performance | |
| Speed | HDMI 225MHz / 3.4 Gbps per channel bandwidth (10 Gbps all channels) |
| Resolution | 4Kx2K @ 30Hz /1920 x 1080 @ 120Hz |
| 3D Support | No |
| Version | 1.4b |
| Operating Temperature | 0℃ to +70℃ |
| Maximum Power Consumption | 1 watt |
| Audio | Compliant |
| Power Source | DisplayPort |
| Approvals | |
| RoHS | Compliant |
| Reach | Compliant |
| FCC | Compliant |
| CE | Compliant |
| UL | Compliant |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.10 lbs [0.05 kg] |
