8-Fiber Multimode OM4 12-Position MPO Female no guide pins to 8x LC/UPC clipped in pairs - OFNP Plenum
8-Fiber Multimode OM4 12-Position MPO Female no guide pins to 8x LC/UPC clipped in pairs - OFNP Plenum

8-Fiber Multimode OM4 12-Position MPO Female no guide pins to 8x LC/UPC clipped in pairs - OFNP Plenum

Fiber Optic MPO/MTP CablesSKU: FOC-1413-03P
No reviews
Length: 1m
Price:
$57.50
Stock:
In stock

Product Weight

FOC-1413-03P
0.07 lb
FOC-1413-06P
0.1 lb
FO-1413-10P
0.15 lb
FO-1413-15P
0.2 lb
FO-1413-33P
0.33 lb
FO-1413-50P
0.5 lb
FO-1413-65P
0.63 lb
FOC-1413-100P
0.95 lb

Description

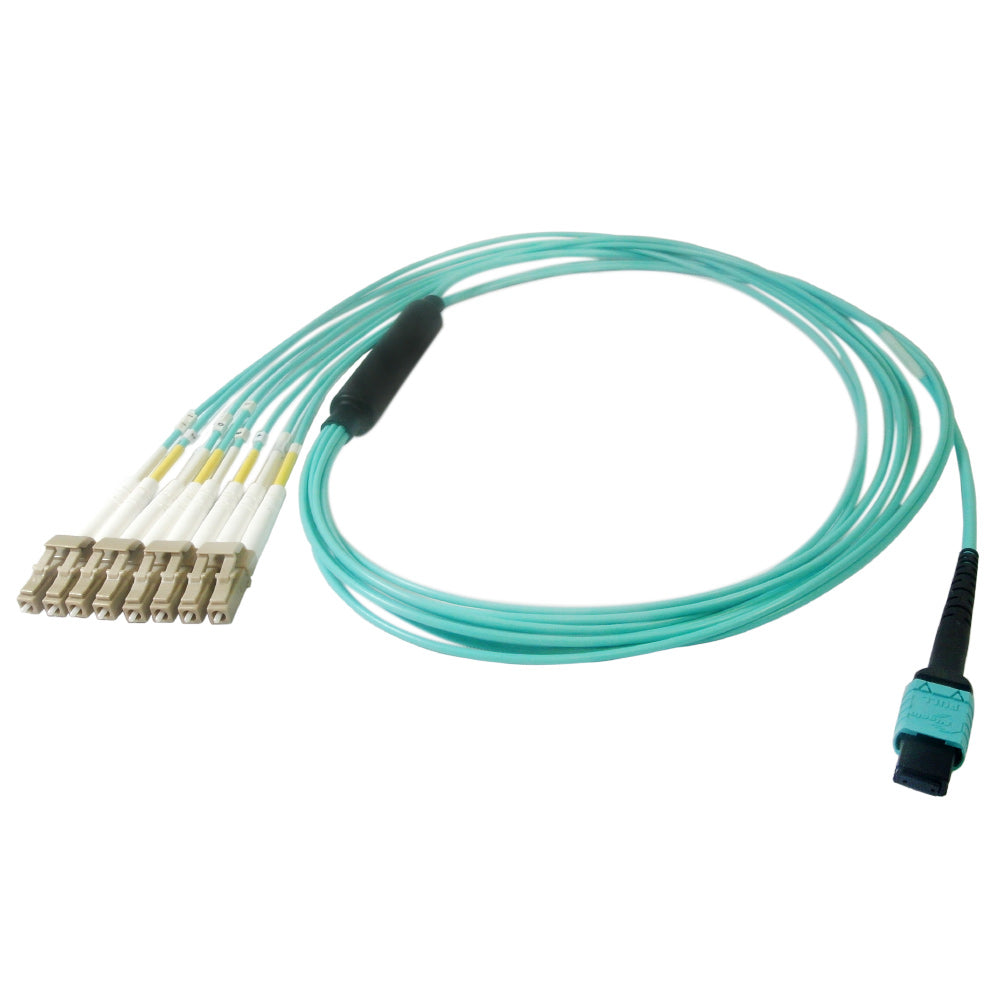

This multimode fiber optic MPO breakout cable is made with Corning glass fiber and consists of a MPO/MTP female connector on one end and 4 duplex LC male connectors on the other. It is used in high bandwidth datacenter applications connecting switches or MPO/MTP cassettes.

Physical Characteristics
Breakout Length 24 inches
Color Aqua
Cable Diameter 3mm
Fiber Count 8 Fibers
Fiber Type Multimode 50/125 Micron OM4
Glass Manufacturer Corning Glass ClearCurve OM4
Jacket Rating Plenum (OFNP)
Temperature Range 0 – 60°C
Connector(s)
Connector A 1 - 12-Position MPO Female (no guide pins) Elite Connectors
Connector B 4 - LC Duplex Male
Performance
MPO Insertion Loss ≤0.35 dB
MPO Return Loss ≥20db
LC Insertion Loss ≤0.3 dB
LC Return Loss ≥20 dB
Testing 100% IL, RL and Interferometer Tested
Environmental
RoHS Compliant
UL UL Listed Cable
Packaging Information
Warranty Limited Lifetime
Cable Weights
3ft - 1m 6ft - 2m 10ft - 3m 15ft - 5m 30ft - 10m 50ft - 15m 65ft - 20m 100ft - 30m
0.14 lbs 0.16 lbs 0.18 lbs 0.22 lbs 0.35 lbs 0.43 lbs 0.53 lbs 0.74 lbs

Download attachment

REACH Certificate

RoHS Certificate
