Description

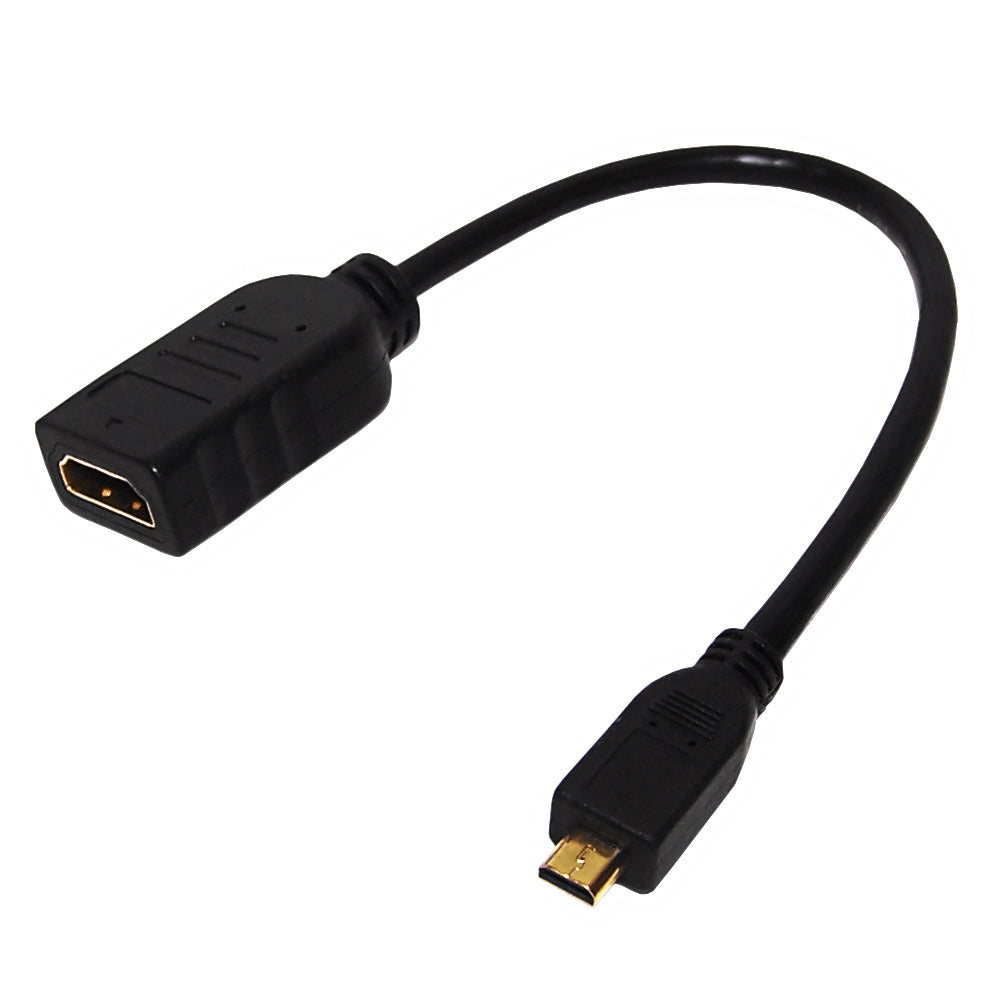

This High-Speed HDMI® cable consists of a HDMI female connector on one end and a micro-HDMI male on the other end. It is typically used to convert a HDMI cable to a micro-HDMI cable and supports ultra HD resolutions up to 4k x 2k.
| Physical Characteristics | |
|---|---|
| Cable Length | 8 inch [0.2m] |
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 4.2 mm |
| Wire Gauge | 34 AWG |
| Shielding | 85% Braid + 100% Aluminum-Mylar Foil |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Connectors | |
| Connector A | HDMI Type A (19 pin) Female |
| Connector B | Micro HDMI Type D Male |
| Performance | |
| Resolution | Ultra HD 4k x 2k |
| Built in Ethernet Channel | |
| 3D Compatible | |
| 13.8Gbps | |
| Audio return channel | |
| Approvals | |
| c(UL)us | Approved Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.05 lbs [0.02kg] |
| Contents | |
| Included in Package | 1 - Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
