Description
This active High-Speed HDMI® cable consists of a HDMI male connector on both ends. The cable has a built in active signal booster which allows it to maintain a HDMI 2.0 signal over a thin cable at longer lengths with no signal loss. It is typically used to connect a HDMI source such as Blu-Ray players and PC's to a HDTV or monitor and supports ultra HD resolutions up to 4k x 2k and works with splitters, switches and other video sharing devices.

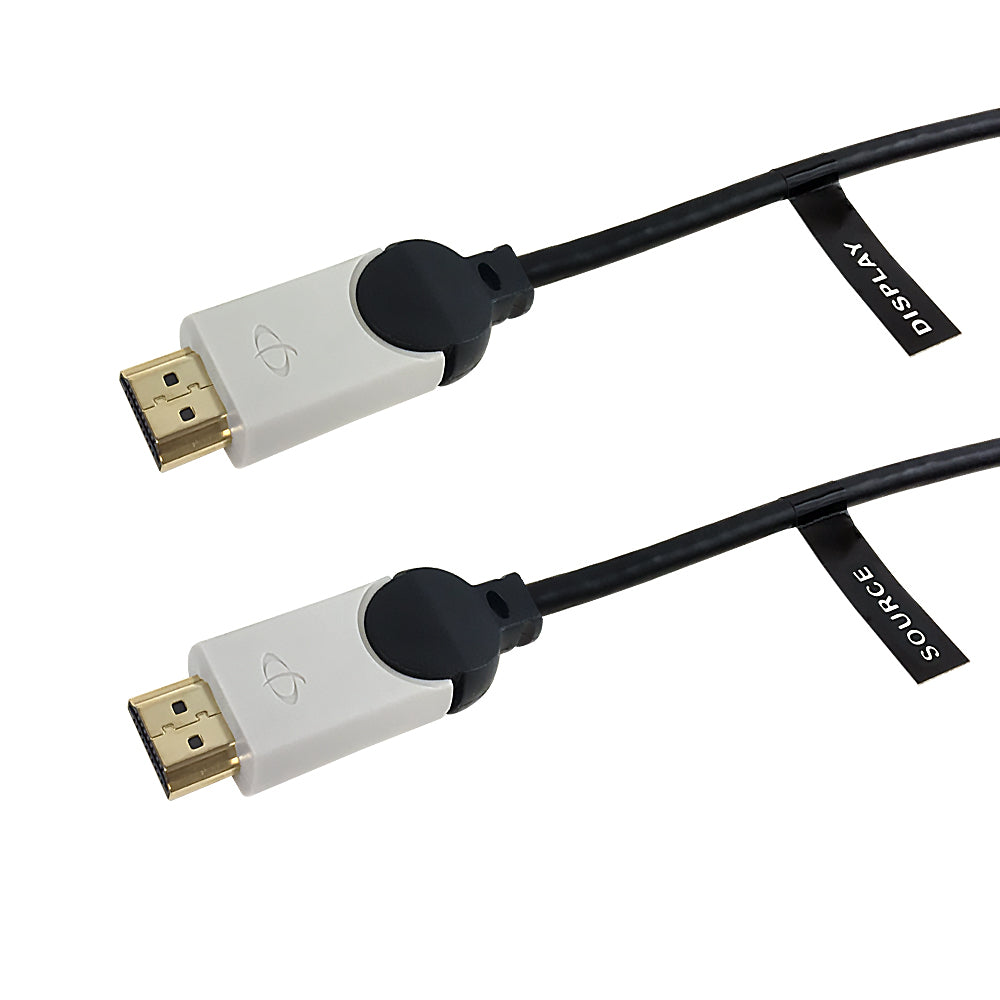

This active HDMI® cable is directional, each connector has a marking to indicate whether it should be connected to the source or the display. Always test the connection before installing the cable within a wall.
| Physical Characteristics | |||||
|---|---|---|---|---|---|
| Color | Black | ||||
| Connector Plating | Gold | ||||
| Cable Length | 10ft | 15ft | 25ft | 35ft | 50ft |
| Cable Diameter | 4.5mm | 4.5mm | 6.0mm | 7.6mm | 8.5mm |
| Wire Gauge | 34AWG | 34AWG | 30AWG | 26AWG | 24AWG |
| Shielding | 75% Braid + 100% Aluminum-Mylar Foil | ||||
| Jacket Fire Rating | CL3/FT4 | ||||
| Jacket Material | PVC | ||||
| Strain Relief | Molded PVC | ||||
| Connectors | |||||
| Connector A | HDMI A (19 pin) Male | ||||
| Connector B | HDMI A (19 pin) Male | ||||
| Performance | |||||
| Resolution | Ultra HD 4k x 2k (4096 x 2160) @ 60Hz | ||||
| Active Chipset Technology | Spectra® HT8181 | ||||
| Chroma Sampling | 4:4:4 | ||||
| Bandwidth | 18Gbps | ||||
| Video | HDR, Dolby Vision and 3D Compatible | ||||
| Audio | 32 Channel Audio with ARC | ||||
| Built in Ethernet Channel | Compliant | ||||
| HDCP 2.2 Compliant | Compliant | ||||
| HDMI Version | HDMI 2.0 | ||||
| Approvals | |||||
| c(UL)us | Approved Cable | ||||
| Environmental | |||||
| RoHS | Compliant | ||||
| Reach | Compliant | ||||
| Conflict Minerals | Compliant | ||||
| Packaging Information | |||||
| Package Quantity | 1 Cable | ||||
| Warranty Information | |||||
| Warranty | 2 Years Warranty |
||||
| 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|
| 0.37 lbs | 0.44 lbs | 0.90 lbs | 2.15 lbs | 3.26 lbs |
