Description

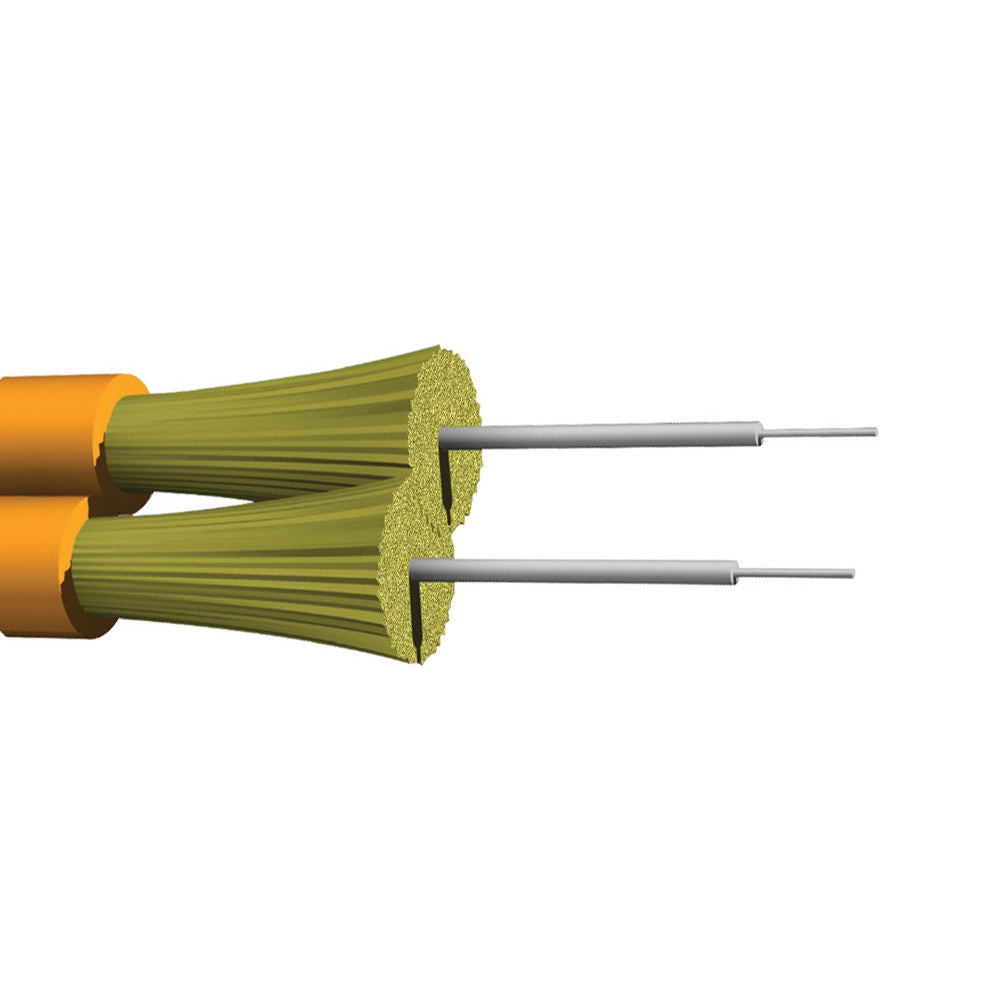

This bulk fiber optic cable is a OM2 multimode duplex 50 micron plenum zip cord 2mm jacket OFNP. This cable is primarily used in the assembly of duplex fiber patch cords to provide links for such protocols as FDDI, 10 Gigabit Ethernet, ATM, and Fiber Channel. It is sold in bulk (per meter).
This cable is primarily used in the assembly of duplex fiber patch cords. It is sold in bulk (per meter).
| Physical Characteristics | |
|---|---|
| Color | Orange |
| Fiber Optic Type | OM2 Plenum Zipcord 2.0 Multimode Duplex 50/125 micron |
| Fiber Core Diameter | 50 micron ± 2.0 micron |
| Nominal Diameter | 2.0mm x 4.0mm |
| Tension(Installation) | 22 lbs |
| Tension(Long Term) | 7 lbs |
| Bending Radius(Installation) | 2.0cm |
| Bending Radius(Long Term) | 1.2cm |
| Operating Temperature | 0℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +75℃ |
| Attenuation Range | @850nm 3.5dB/km @1300nm 1.2dB/km |
| Bandwidth Range | @850nm > 200 MHz/km @1300nm > 600 MHz/km |
| Gigabit Ethernet Min. Link Distance | 850nm = 300 1300nm = 550 |
| 10 Gigabit Ethernet Min. Link Distance | 850nm = 32 |
| Fire Rating | OFNP |
| Certification(s) | |
| ETL | Compliant |
| c(ETL) | Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | USA |
