Description
Overview
This Cat6 shielded coupler consists of a RJ45female on both ends. It is typically used to connect two RJ45 male outdoor network cables where protection from dust, water and the elements are required. This IP68 rated coupler is suitable for outdoor applications and can be installed on terminated cable assemblies.
 |
Waterproof RJ45 Coupler for Outdoor CableThis Cat6coupler is IP68 compliant to help protect your outdoor network cabling against water, moisture, dirt and insects for uninterrupted and quality connections. Waterproof when immersed in water at a depth of 4 meter. Terminated Cable Assemblies Under any ConditionThe unique design of this coupler allows terminated cable assemblies to easily be inserted through the waterproof seals and end covers which makes it a perfect solution for outdoor applications. |
Specifications
| Physical Characteristics | ||
|---|---|---|
| Color | Black | |
| Body Material | PA66 | |
| Insert Material | Fame Retardancy PBT | |
| PCB Material | FR-4 T=1.6mm | |
| Connector Plating | Phosphor Bronze with Nickel Plating Gold Plated (3U/6U/15U/30U/50U) | |
| Shielded Case | Nickel Plated | |
| RJ45 Jack Life | 750 Times Min. | |
| Operating Temperature | 0℃ to 70℃ | |
| Storage Temperature | -40℃ to 85℃ | |
| Performance | ||
| Voltage Rating | 120 VAC RMS | |
| Current Rating | 1.5A | |
| Contact Resistance | 1000 MΩ Min. @500 VDC | |
| Dielectric Strength | 750 VAC RMS 60Hz, 1Min | |
| Connector(s) | ||
| RJ45 - 8P8C | Female to Female | |
| Environmental | ||
| IP Rating | IP68Rated | |
| RoHS | Compliant | |
| Packaging Information | ||
| Product Weight | 0.10 lbs [0.04 kg] | |
| Package Quantity |

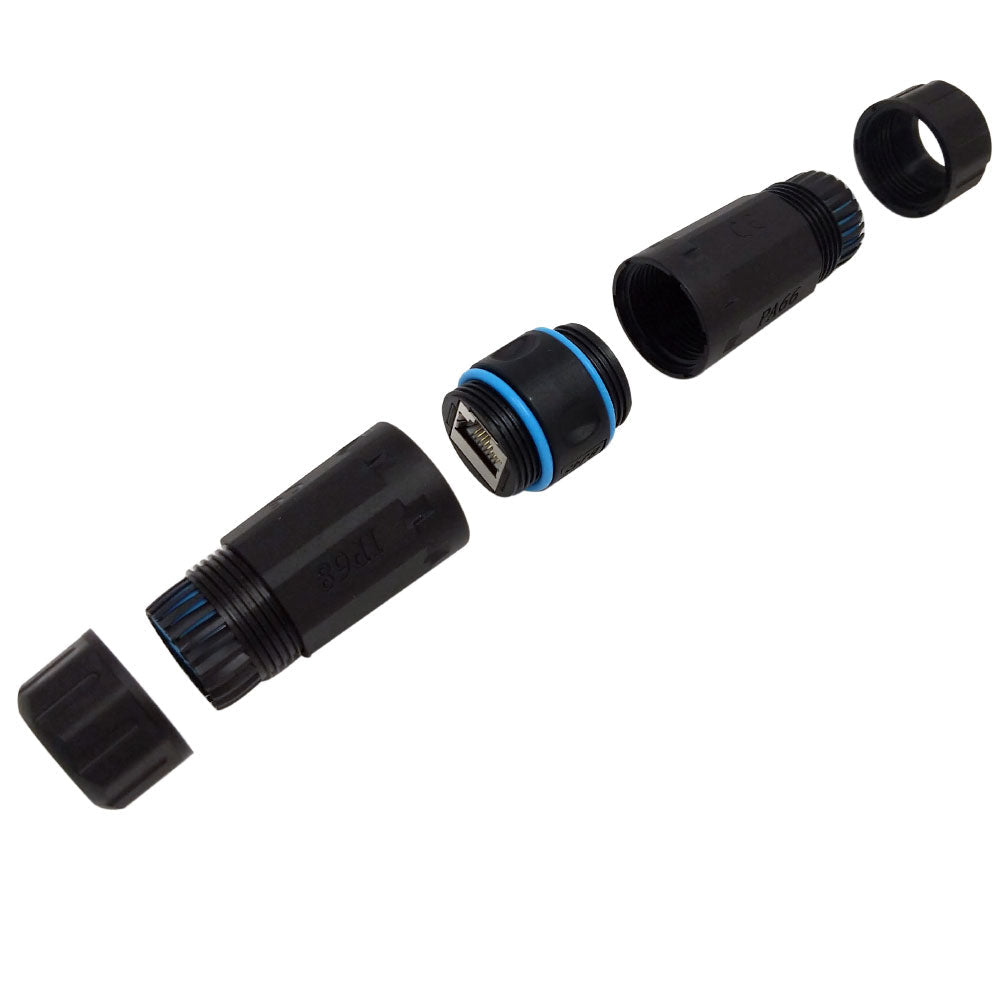

2 - End Covers 2 - Long Tubes 1 - RJ45 Coupler 2 - O-shape sealing rings 2 - Waterproof Sealing Plugs 1 - Installation Instructions |
|
