Description

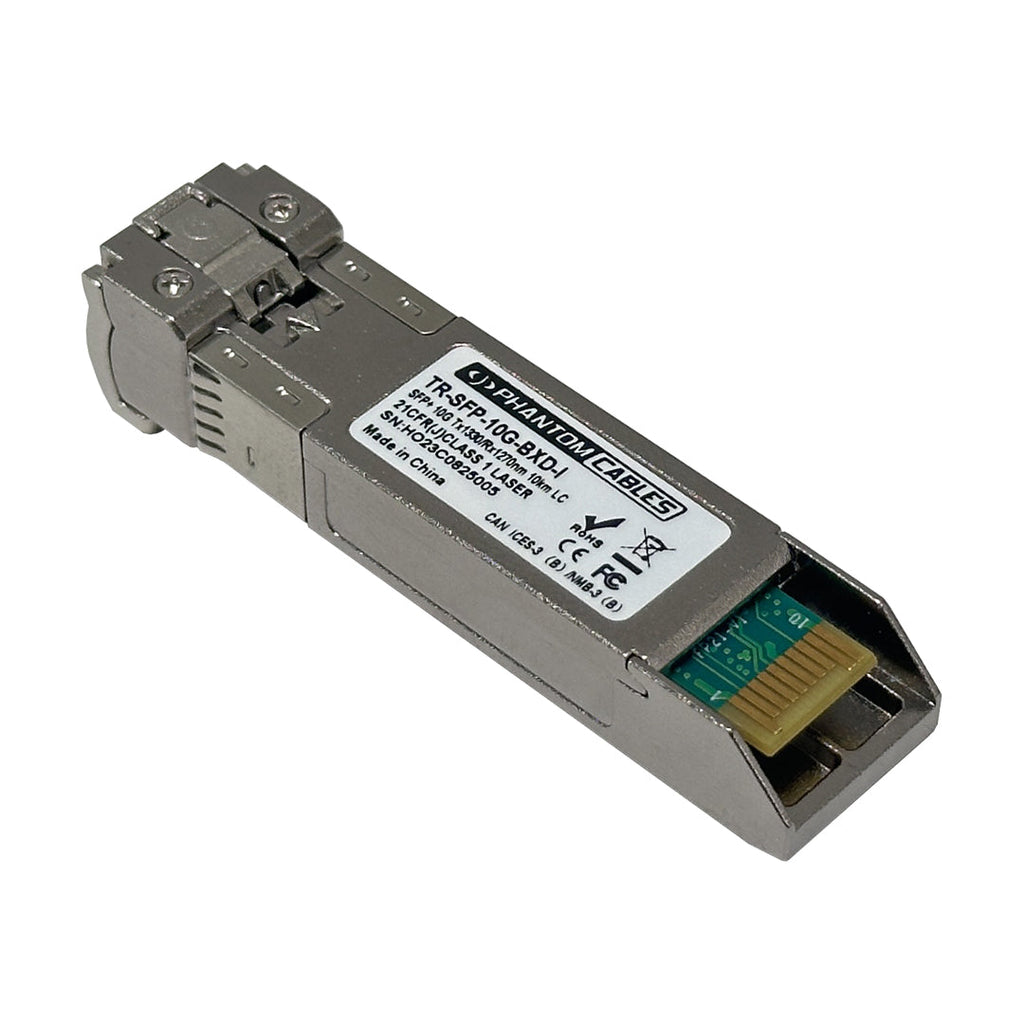

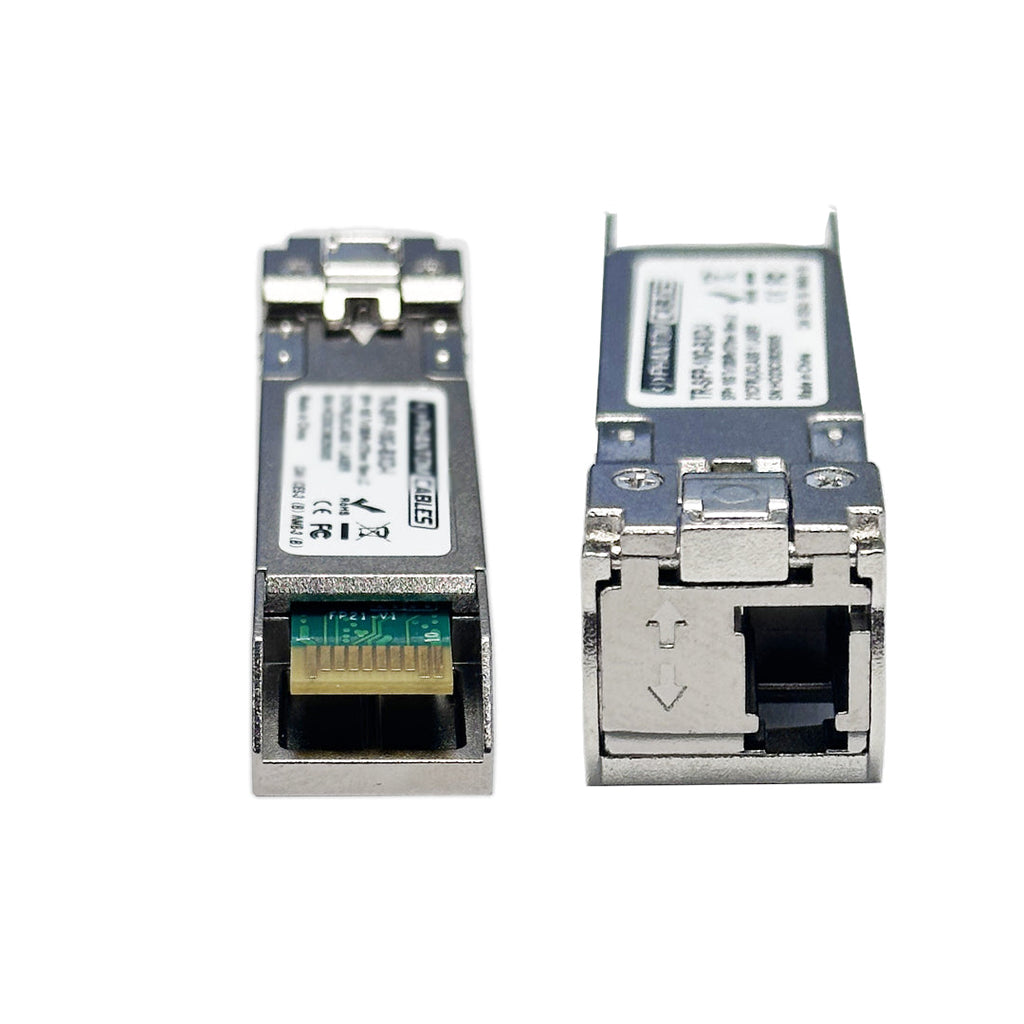

This is an Enhanced Small Form-factor Pluggable (SFP+) transceiver module with maximum data transfer rate of 10 Gbps up to 10km over singlemode fiber cable. It is used in network devices with an SFP+ slots. The transceivers are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
NOTE: Each network link needs to have a up transceiver and a down transceiver. Ex./ TR-SFP-10G-BXD-I should be purchased with TR-SFP-10G-BXU-I.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco Systems, Inc. This product is not certified or endorsed by Cisco Systems Inc.
Application:
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -40°C ~ 80°C | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector | LC Simplex | |
| Performance | ||
| Media Supported | 10GBase-LR Singlemode Fiber | |
| Maximum Transmission Distance |
10km |
|
| Wave Length |
TX: 1310nm RX: 1270nm |
|
| DDM Support | Compliant | |
| Compatible Product | ||
| TR-SFP-10G-BXU-I | Cisco® 10G SFP+ Bi-Directional 1270nm/1310nm LC Transceiver - 10km | |
| Certifications | ||
| CE | Compliant | |
| FCC | Compliant | |
| RoHS | Compliant | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | 5 Year Warranty | |
Spec Sheets
Open here
