Description

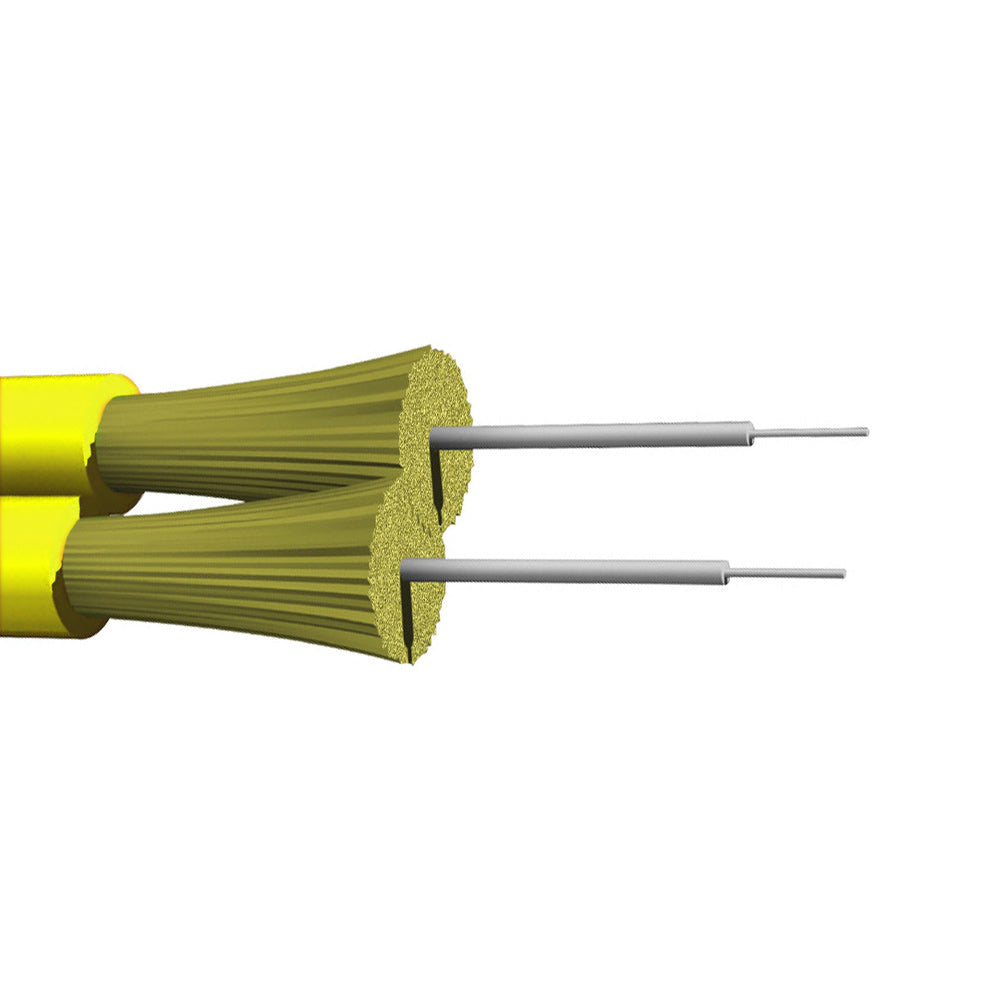

This cable is primarily used in the assembly of duplex fiber patch cords used in server rooms, data centers and other point to point indoor applications.
| Physical Characteristics | |
|---|---|
| Color | Yellow |
| Fiber Optic Type | Riser Zipcord 2.0 Singlemode Duplex 9/125 micron |
| Fiber Core Diameter | 9 micron ± 2.0 micron |
| Nominal Diameter | 2.0mm x 4.0mm |
| Tension(Installation) | 22 lbs |
| Tension(Long Term) | 7 lbs |
| Bending Radius(Installation) | 2.0cm |
| Bending Radius(Long Term) | 1.2cm |
| Operating Temperature | 0℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +75℃ |
| Maximum Attenuation | 0.5 |
| Gigabit Ethernet Min. Link Distance | 5,000M |
| 10 Gigabit Ethernet Min. Link Distance | 10,000M |
| Fire Rating | OFNR |
| Certification(s) | |
| ETL | Compliant |
| c(ETL) | Compliant |
| Environmental | |
| RoHS | Compliant |
