Description

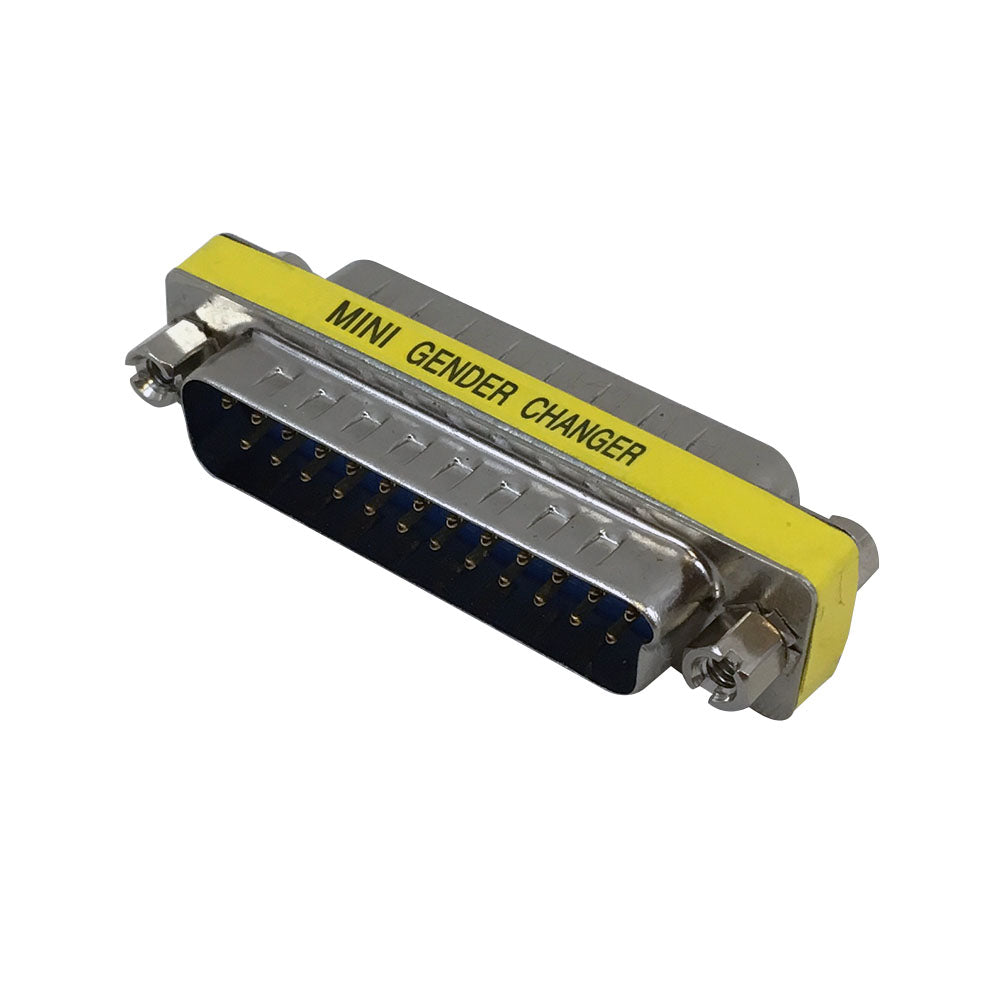

This adapter consists of a Slimline DB25 male on one end and a Slimline DB25 male on the other. It is primarily used to connect a DB25 female cable to a DB25 female cable.
| Physical Characteristics | |
|---|---|
| Connector Plating | Nickel |
| Contact Plating | Brass Gold flash over Nickel Plated |
| Shell | SPCC Nickel Plated |
| Insulator | PBT+30%GF UL94V-0 Blue |
| Screw | Steel 12L14 Nickel Plated |
| Pin Assignment | Straight Through |
| Body Style | Slimline |
| Dielectric Strength | 1000V AC for one minute |
| Insulation Resistance | 1000M Ohm min. at 500V DC |
| Temperature | -55°C ~ +105°C |
| Rating Current | 3 AMP |
| Connectors | |
| Connector A | DB25 Male |
| Connector B | DB25 Male |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
