DisplayPort Male to DisplayPort Male Cable - v1.4 - VESA Certified HBR3 - CL3 - 8K 60Hz
DisplayPort Male to DisplayPort Male Cable - v1.4 - VESA Certified HBR3 - CL3 - 8K 60Hz
DisplayPort Male to DisplayPort Male Cable - v1.4 - VESA Certified HBR3 - CL3 - 8K 60Hz
DisplayPort Male to DisplayPort Male Cable - v1.4 - VESA Certified HBR3 - CL3 - 8K 60Hz

DisplayPort Male to DisplayPort Male Cable - v1.4 - VESA Certified HBR3 - CL3 - 8K 60Hz

DisplayPort CablesSKU: DP-102-01.5
No reviews
Length: 1.5ft
Price:
$6.30
Stock:
In stock

Product Weight

DP-102-01.5
0.07 lb
DP-102-03
0.15 lb
DP-102-06
0.21 lb
DP-102-10
0.33 lb
DP-102-15
0.5 lb

Description

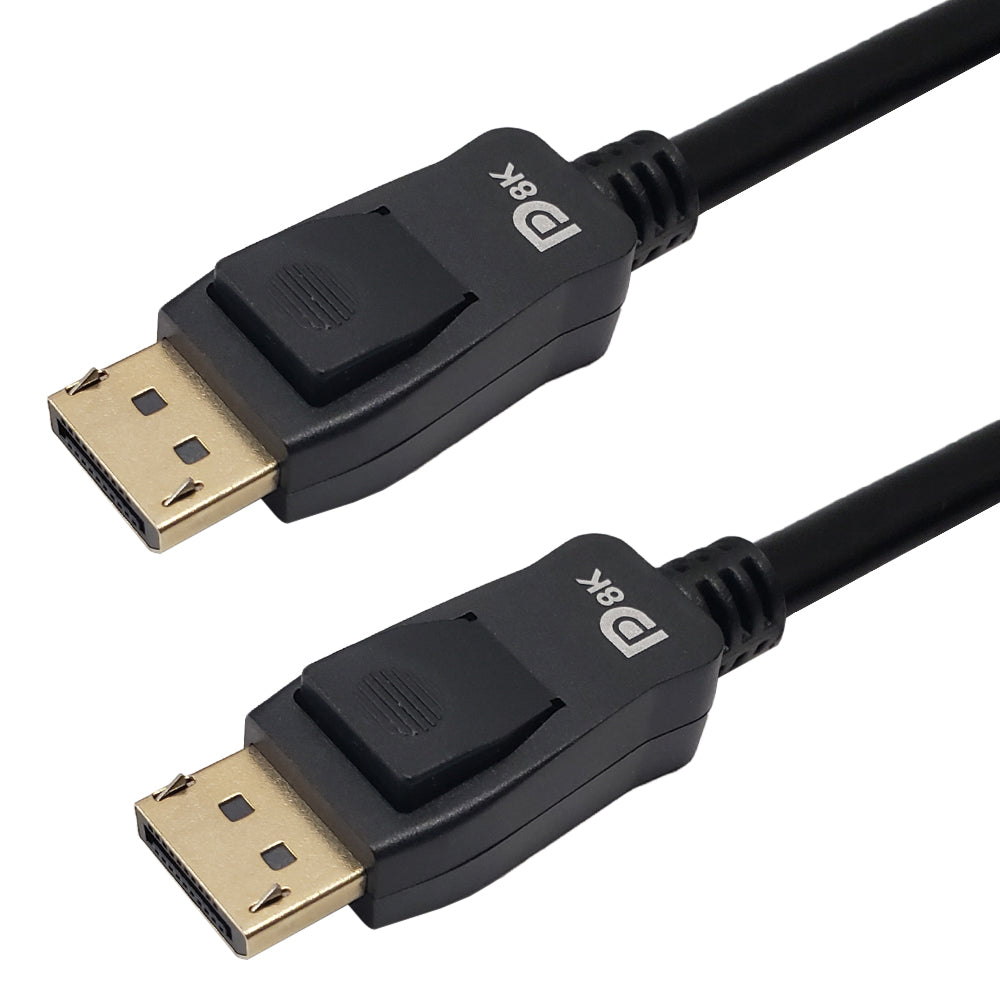

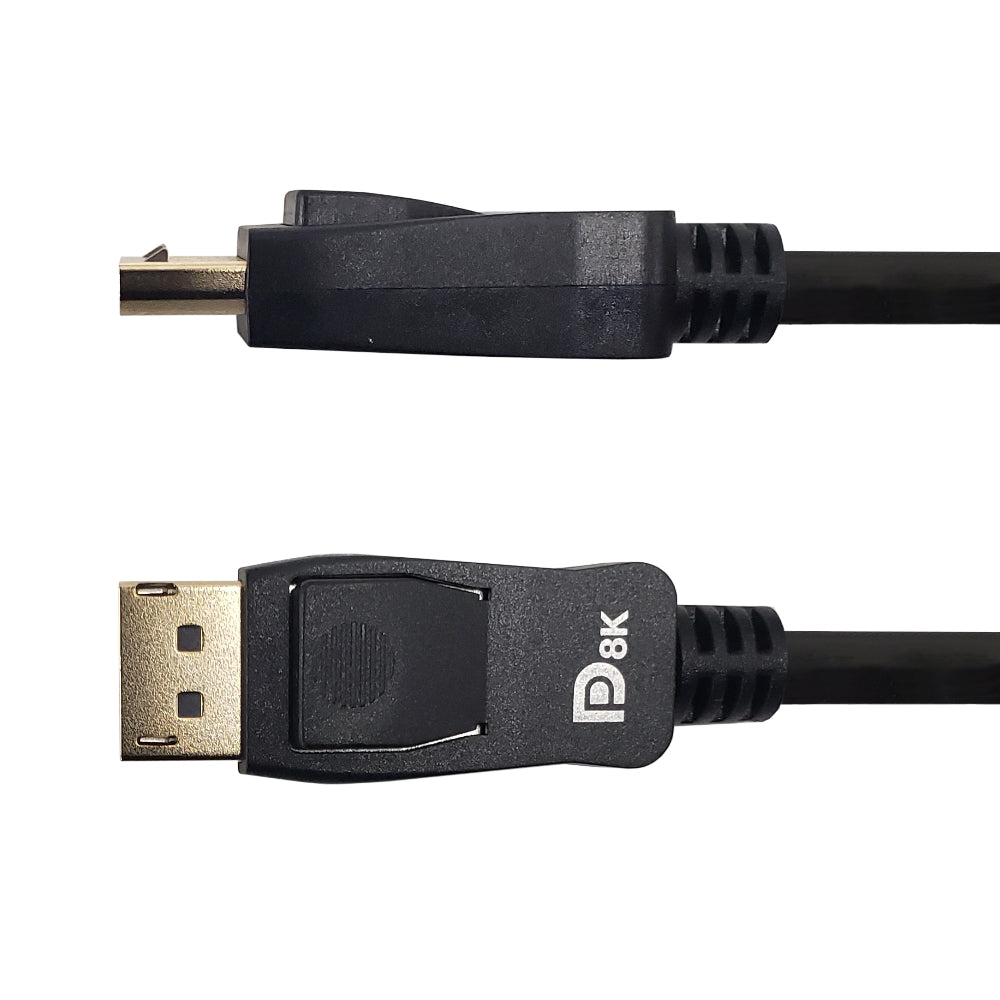

This cable has a DisplayPort male on one end and a DisplayPort male on the other. It is typically used to connect a DisplayPort source to a DisplayPort monitor. The cable supports 8K UHD resolution and is backwards compatible to previous DisplayPort versions.

Ultra High-Definition Resolution

This cable supports maximum video resolutions up to a breath-taking Ultra HD 8K*4K @ 60Hz.

This cable can be used in instances where high definition resolution is needed - for example, connecting your PC or laptop to a 8K monitor.

Application

Specifications

Part Number Wire Gauge Outer Diameter
DP-102-01.5
 32AWG 5.5mm
DP-102-03
 32AWG 5.5mm
DP-102-06
 30AWG 6.5mm
DP-102-10
 27AWG 7.3mm
DP-102-15 26AWG 9.5mm
Physical Characteristics
Connector A DisplayPort Male
Connector B DisplayPort Male
Performance
Maximum Resolution 8K*4K@60Hz or 4K*2K@120Hz
DP Version v1.4
Voltage 30V
Contact Resistance 3 ohm max
Insulation Resistance 10M ohm Min.300V DC/10ms.
Packaging Information
Warranty Lifetime Limited
Cable Weights
1.5ft 3ft 6ft 10ft 15ft
0.09 lbs 0.12 lbs 0.24 lbs 0.49 lbs 1.00 lbs

Download spec sheet

REACH Certificate

RoHS Certificate
