Description

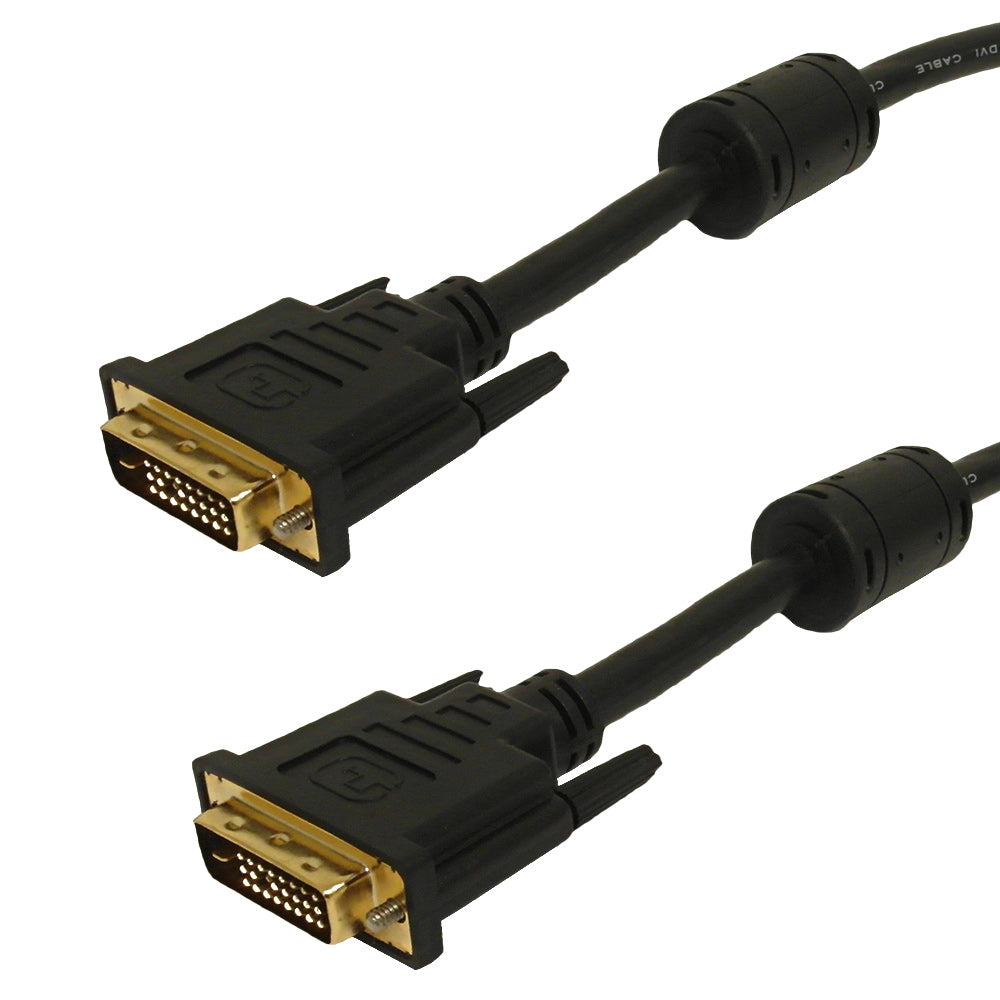

This DVI-D dual link cable consists of a DVI-D male connector on both ends. It is typically used to connect a DVI digital source to a DVI digital display.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 8.5 mm |
| Wire Gauge | 28 AWG |
| Shielding | AEB 85% + 100% Aluminum-Mylar Foil |
| Jacket Fire Rating | CL3/FT4 |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Connector(s) | |
| Connector A | DVI-D Dual Link Male |
| Connector B | DVI-D Dual Link Male |
| Performance | |
| Resolution | 2560x1600 at 60Hz |
| Approvals | |
| c(UL)us | Approved Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|
| 0.45 lbs | 0.61 lbs | 0.79 lbs | 1.01 lbs | 2.75 lbs | 3.56 lbs | 4.97 lbs |
