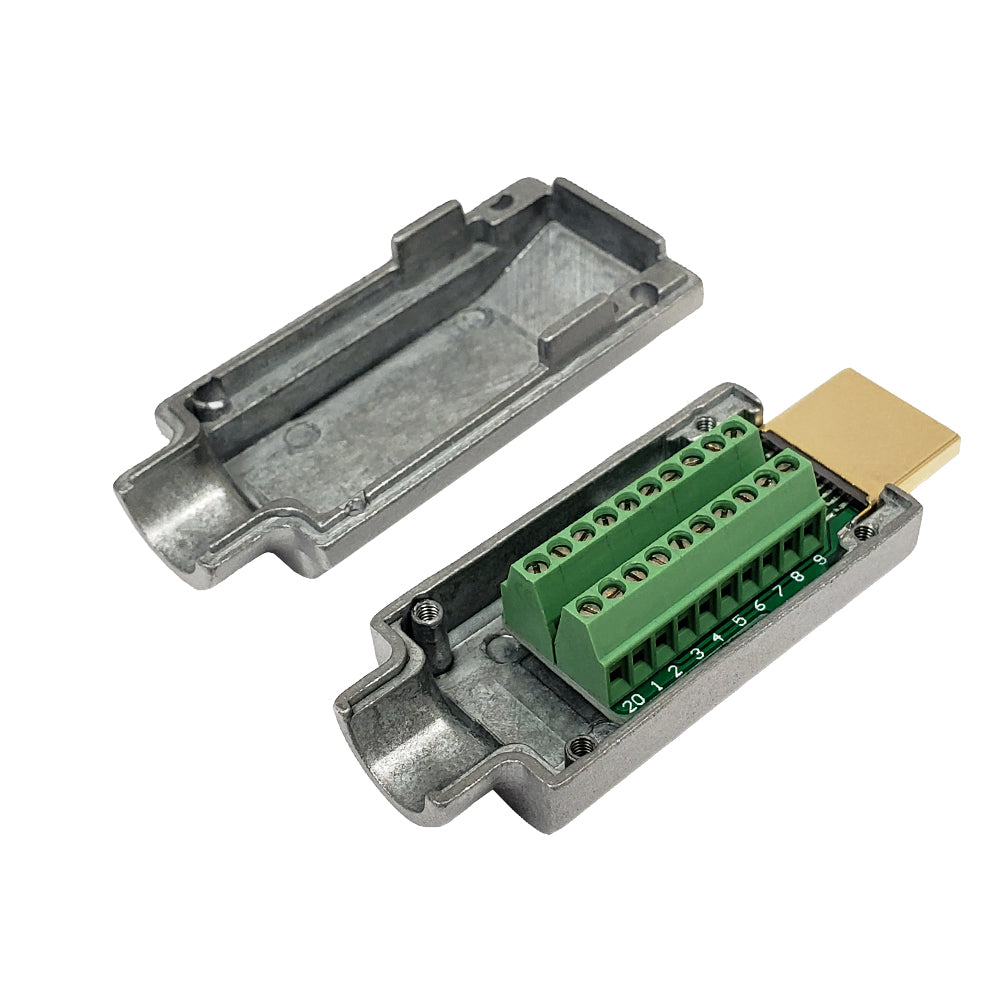

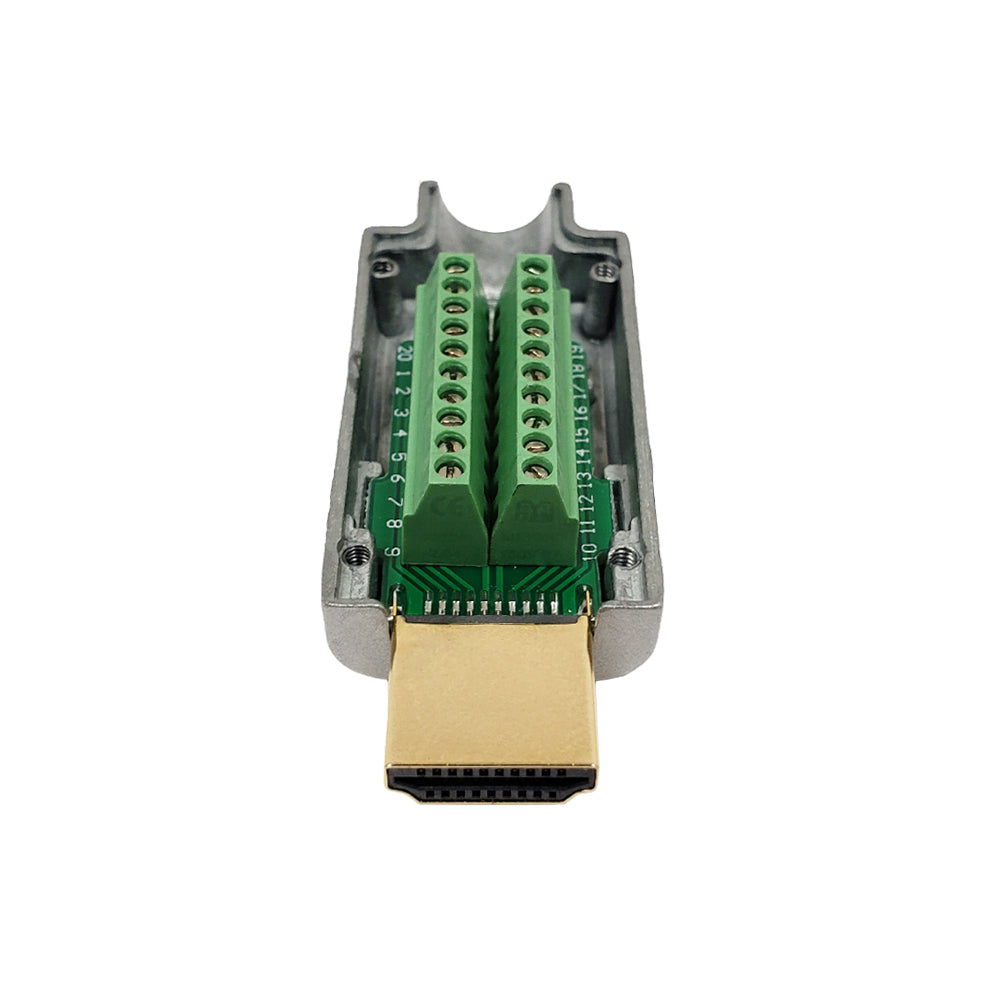

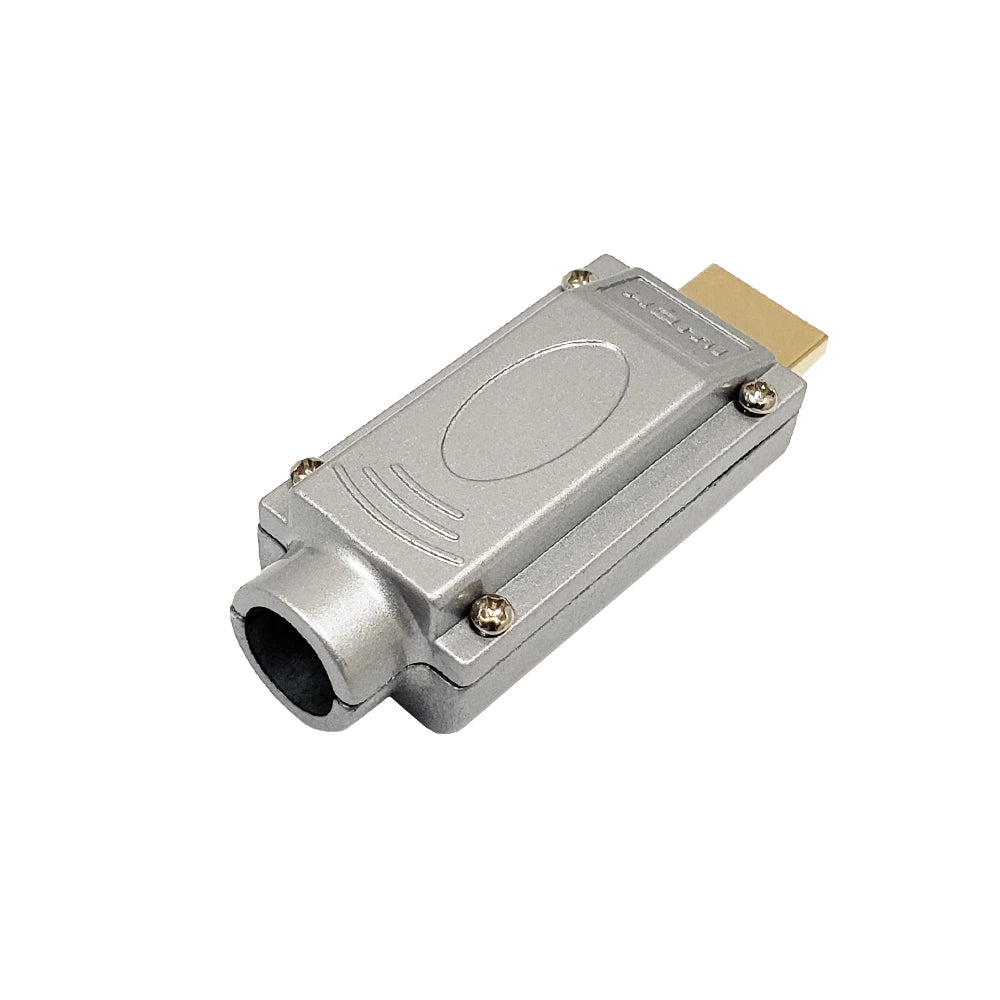

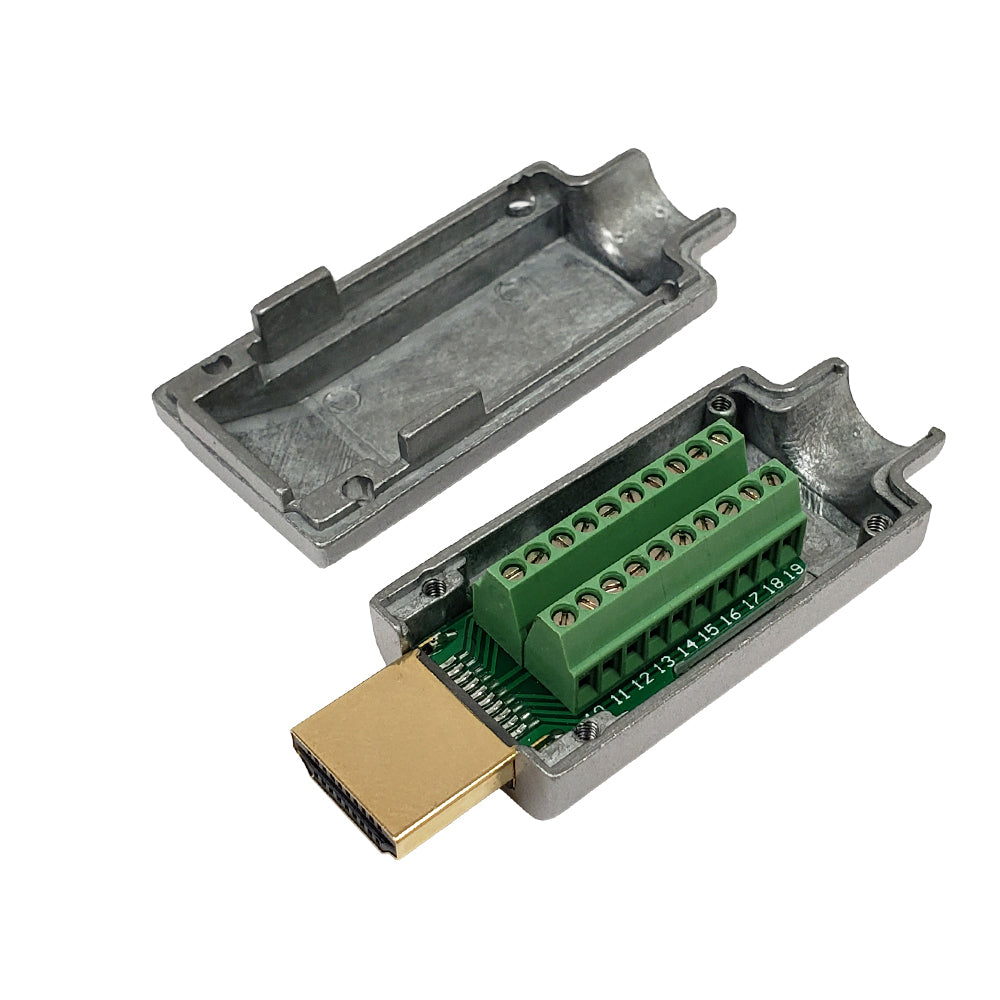

This field termination kit has a HDMI male connector on one end and accepts raw cable for a screw down termination on the other. It is commonly used to repair a broken HDMI connector on a cable which is not easily acceptable for replacement such as cables run within walls.
| Physical Characteristics | |
|---|---|
| Color | Silver |
| Housing Material | Metal |
| Connector Plating | Gold |
| Contact Material | Gold |
| Max Wire Outer Diameter | 9.5mm |
| Max Wire Gauge Screw Down Terminal | Accepts 23AWG |
| HDMI Version | Supports HDMI 1.3/1.4/2.0 |
| Connector(s) | |
| Connector | HDMI Male |
| Color Code Chart | |
|
|
|
| Environmental | |
| RoHS | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Product Weight | 0.11 lbs [0.05kg] |
| Contents | |

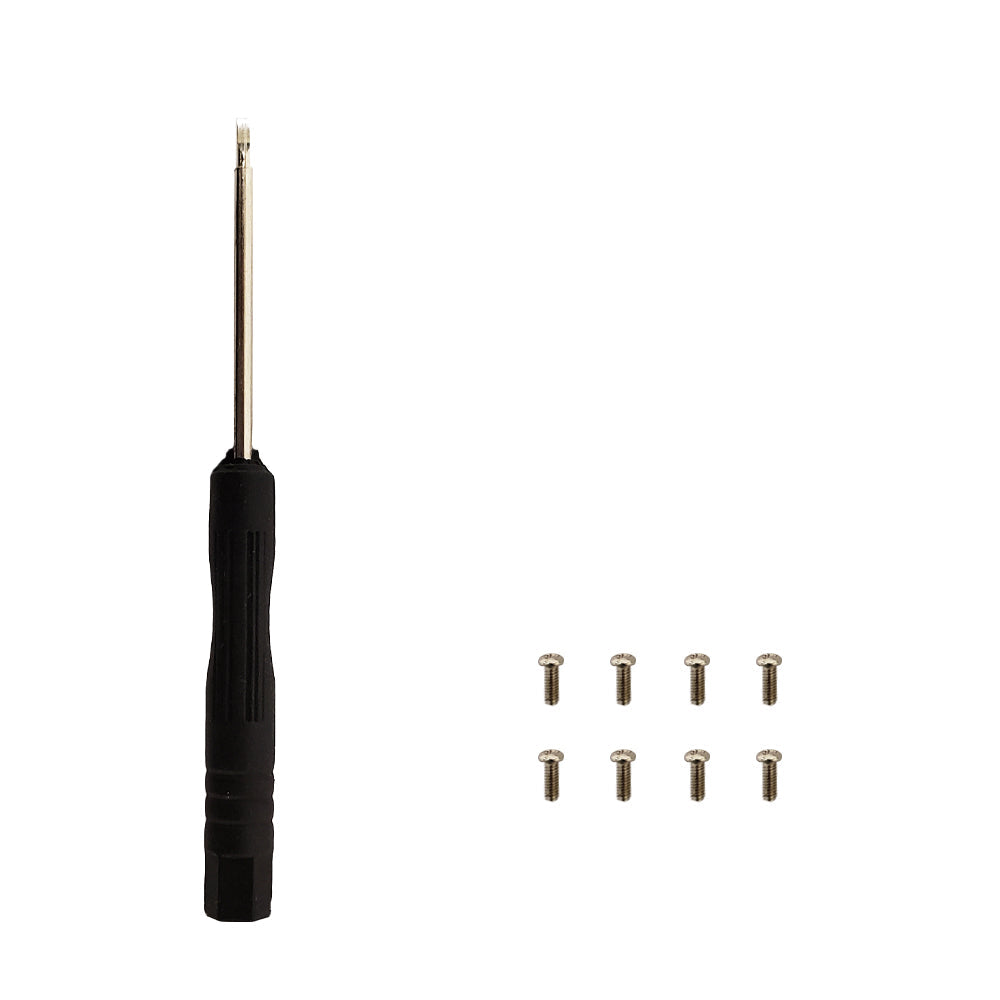

| Included in Package | 1 - Connector
1 - Cover 1 - Screwdriver 8 - Screws |
