Product Weight
Description
- Description
- Spec Sheets
Description

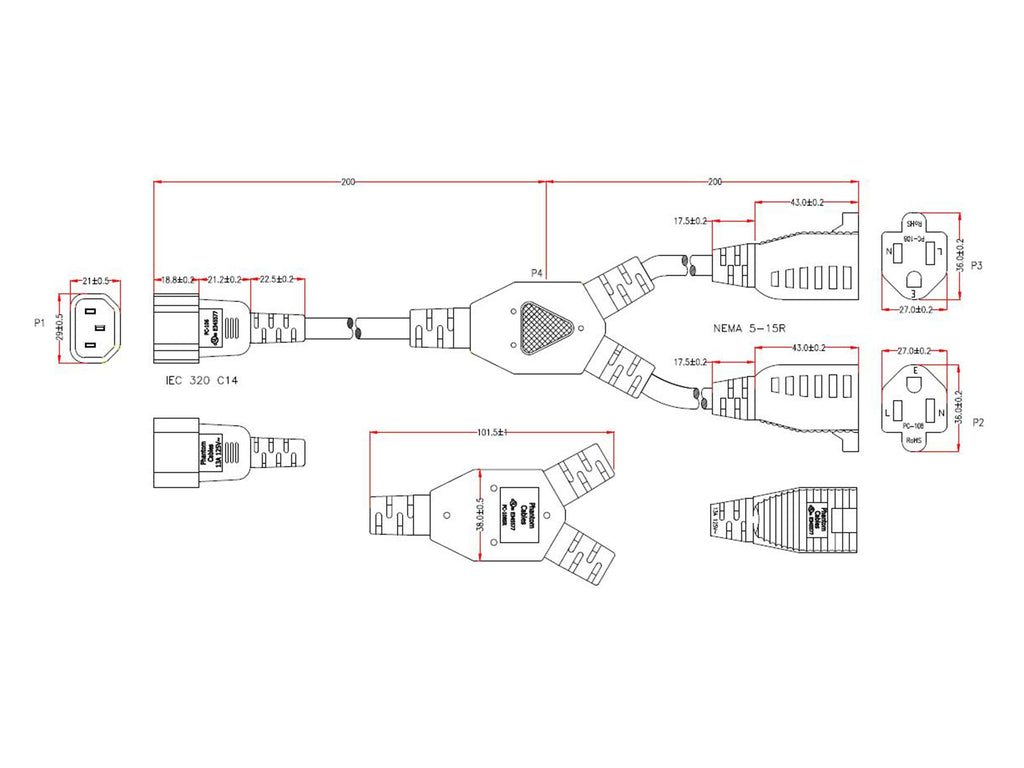

This power cord consists of a C14 male on one end and two 5-15R females on the other end. It is typically used on devices with multiple power supplies sharing one receptacle. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
| Physical Characteristics | |
|---|---|
| Cable Length | 1 foot [0.3m] |
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 16AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Conductor Material | 100% bare copper |
| Temperature Rating | -20℃ to 105℃ |
| Connector(s) | |
| Connector A | IEC 60320 C14 |
| Connector B | NEMA 5-15R |
| Connector B | NEMA 5-15R |
| Performance | |
| Power Rating | 13 Amp / 125 Volt |
| Approvals | |
| C14 | c(UL)us |
| 5-15R | c(UL)us |
| Cable | c(UL)us |
| ISO | ISO 9001:2000, ISO 14000 |
| Product Support | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Country of Origin | Vietnam |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.46 lbs [0.2kg] |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Open here
