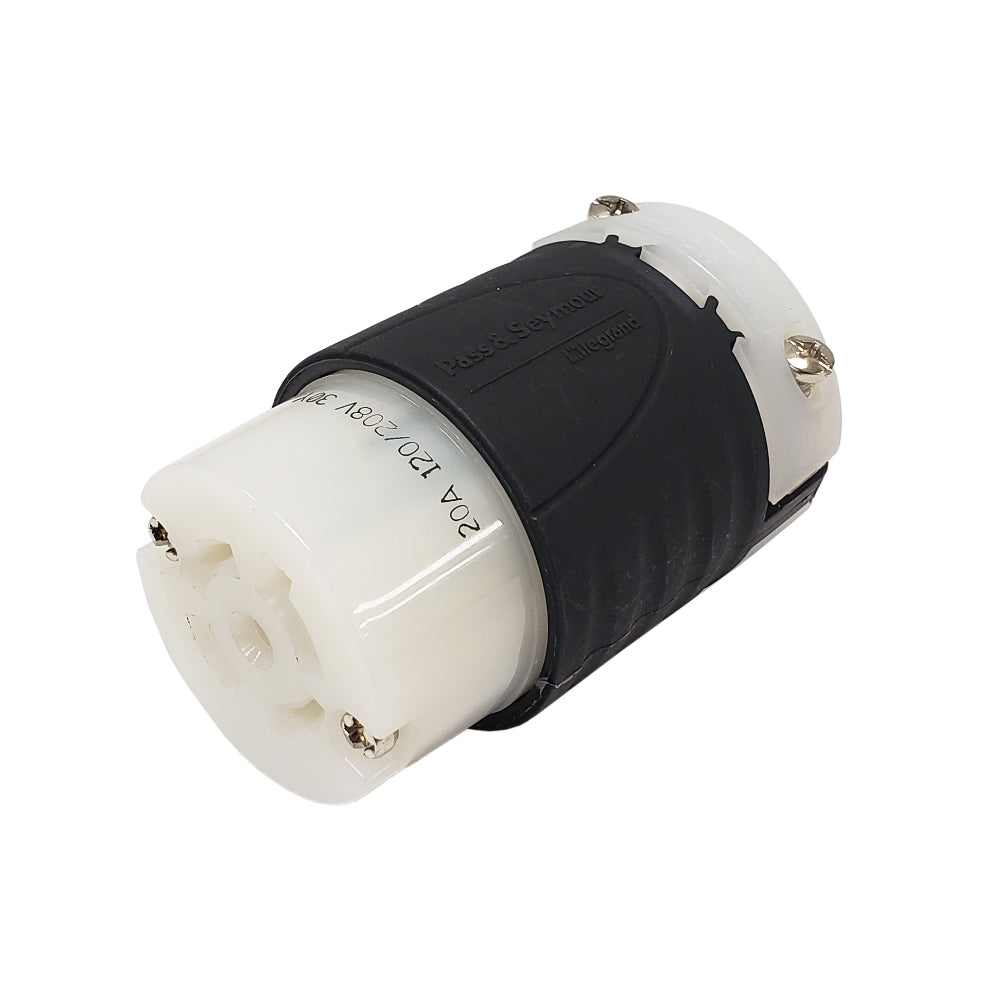

This L21-20R power cord connector is a 4-pole 5-conductor grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals.
| Physical Characteristics | |
|---|---|
| No. of Poles | 4-Pole |
| No. Of Conductorss | 5 Conductors |
| Connectivity | Screw Terminals |
| Material | Polycarbonate |
| Cable Diameter and Size | 0.325 - 0.750 inch (with inserts) 0.700 - 1.15 inches (without inserts) |
| Wire Gauge Compatibility | 14-10AWG |
| Wire Size | 4 AWG |
| Voltage Rating | 120 VAC |
| Power Rating | 20A 120/208V |
| Phase | Three Phase |
| Manufacturing Information | |
| Pass & Seymour - Legrand Part No. |
L2120R |
| Connectors | |
| L21-20R | Male |
| Approvals | |
| UL | Compliant |
| CSA | Compliant |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.15 lbs [0.06kg] |
