Description

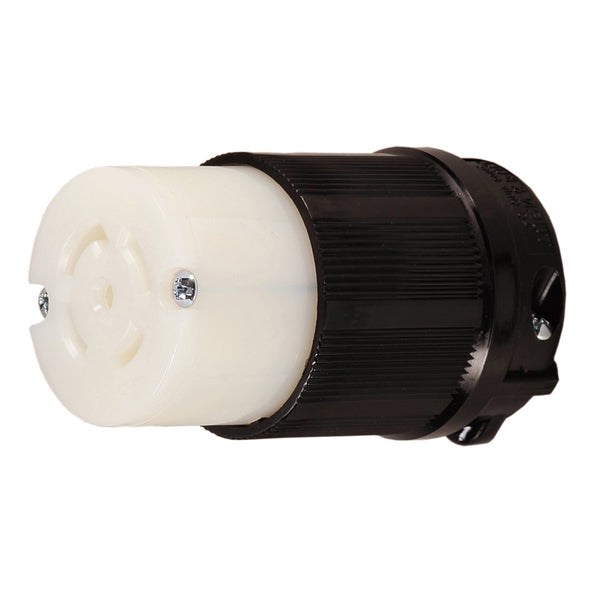

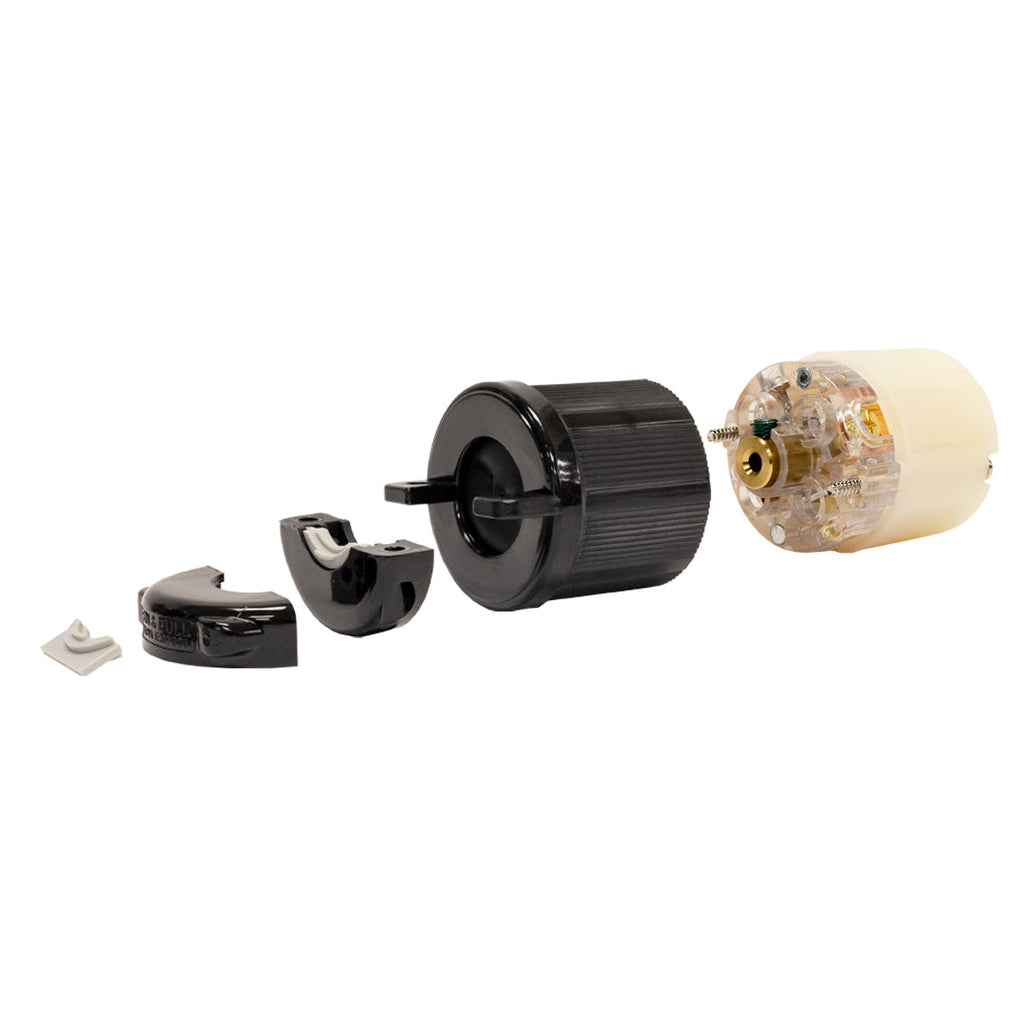

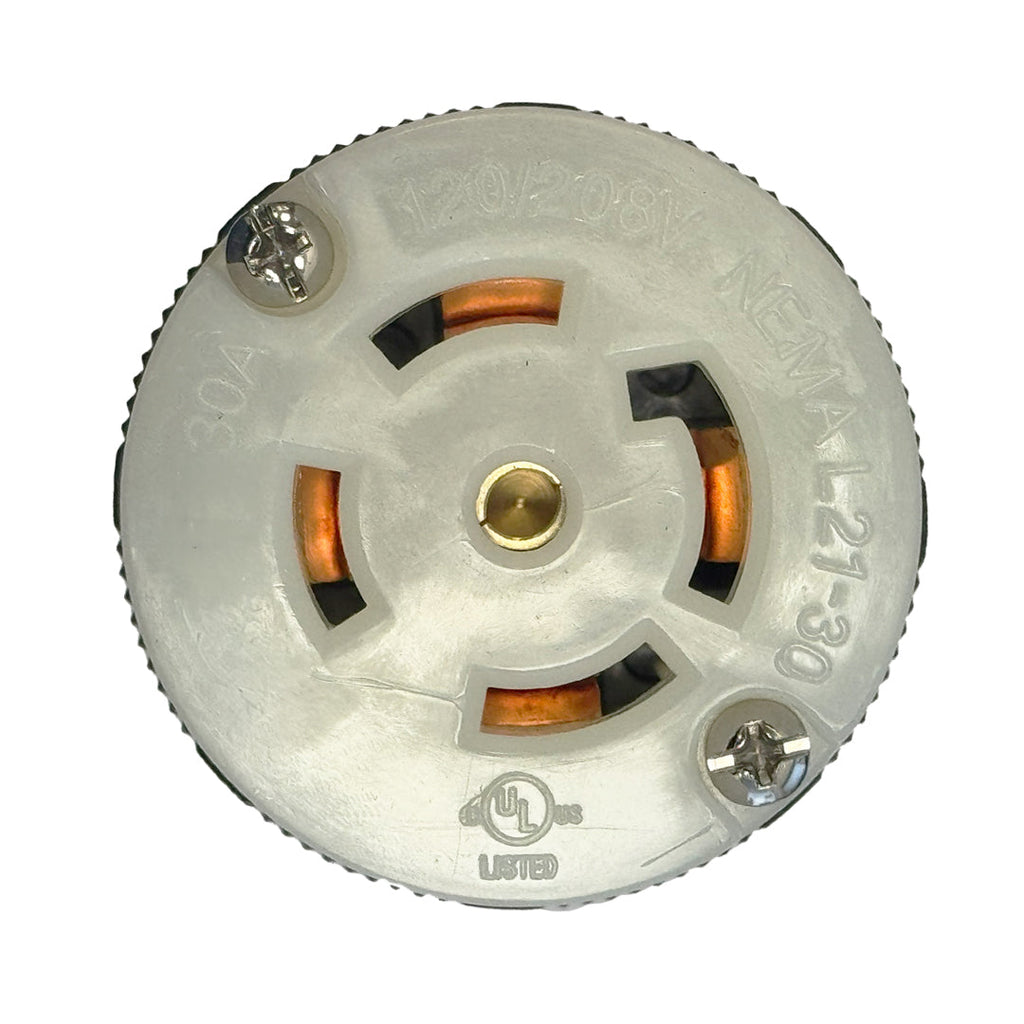

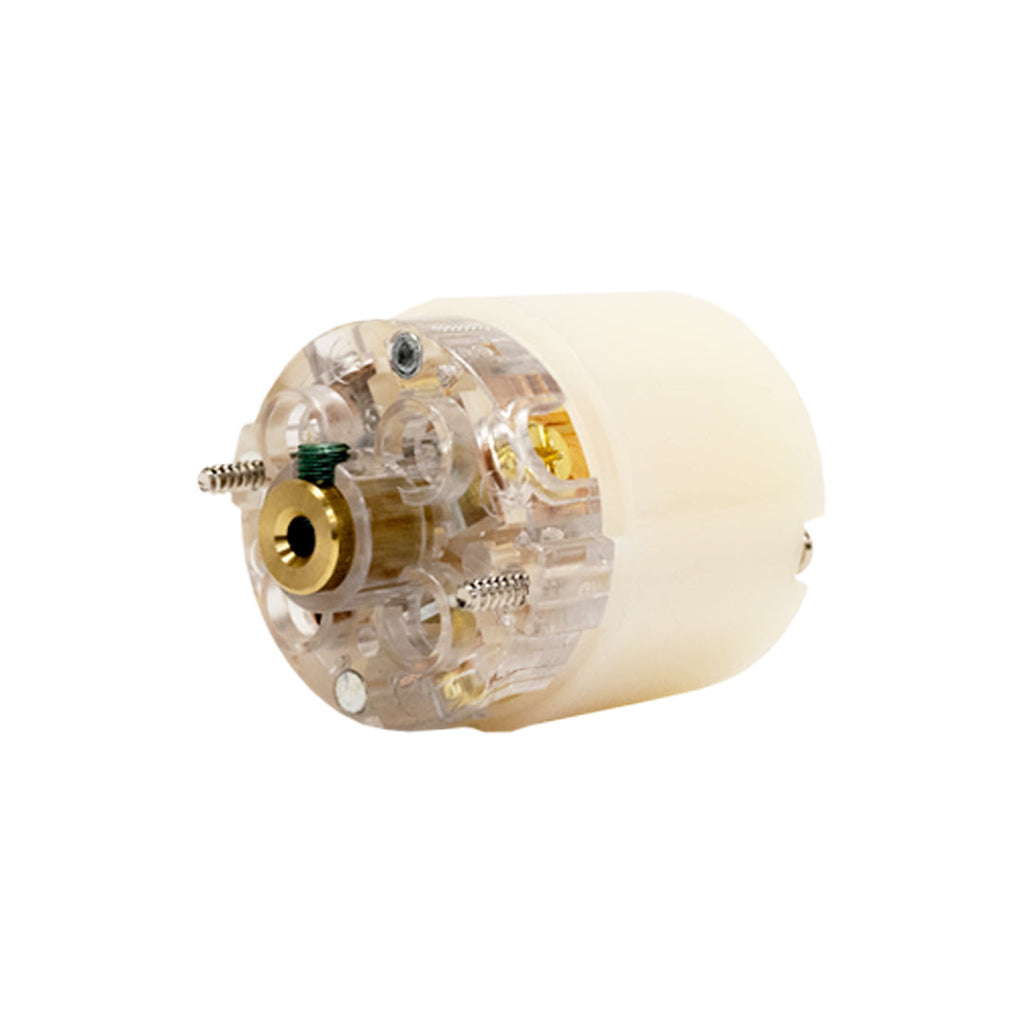

This L21-30R power cord connector is a 4-pole 5-conductor grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals.
| Physical Characteristics | |
|---|---|
| No. of Poles | 4-Pole |
| No. Of Conductors | 5 Conductor |
| Connectivity | Screw Terminals |
| Material | Nylon |
| Cable Diameter Range | 0.375 - 1.156 inch |
| Power Rating | 30A 120/208V |
| Phase | Three Phase |
| Connectors | |
| L21-30R | Female |
| Approvals/Environmental Standards | |
| UL, c(UL) | Approved |
| RoHS | Compliant |
| REACH | Compliant |
| Conflict Materials | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.47 lbs [0.21 kg] |
