Description

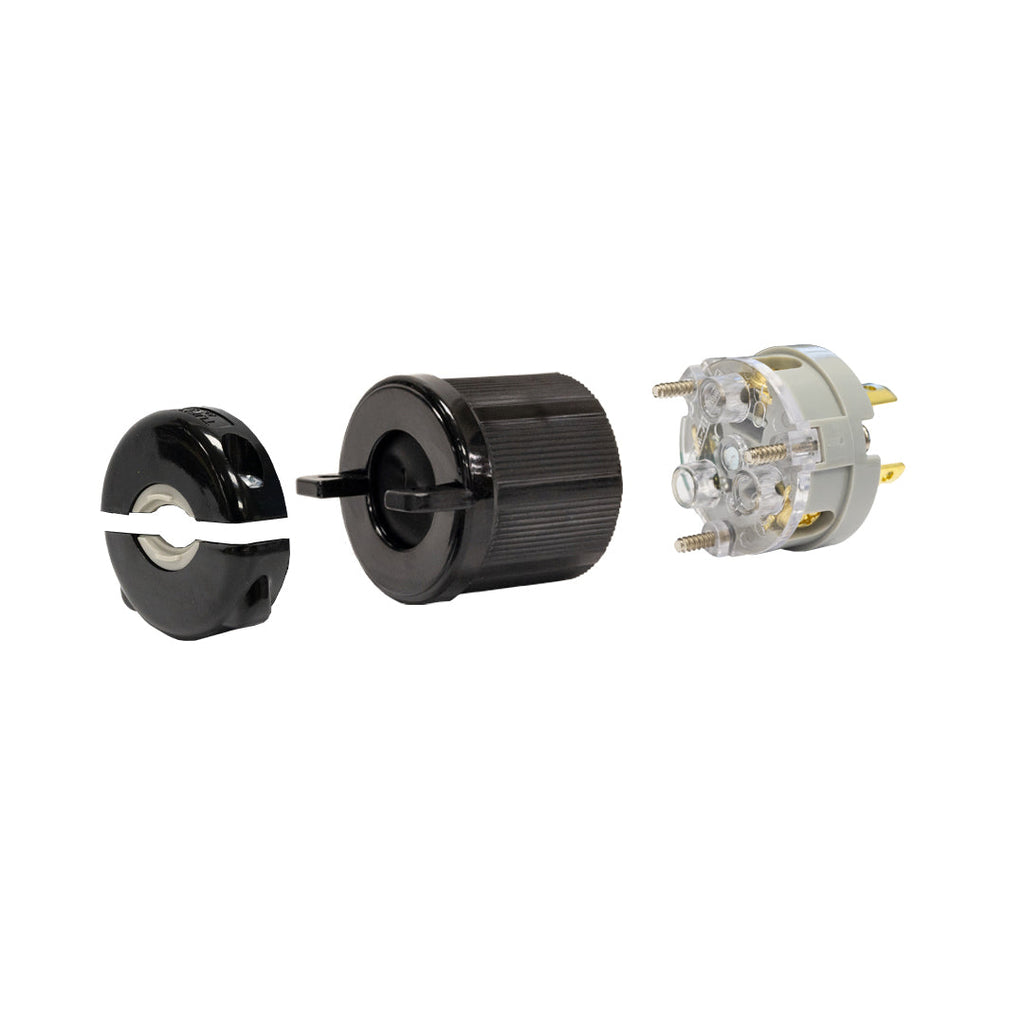

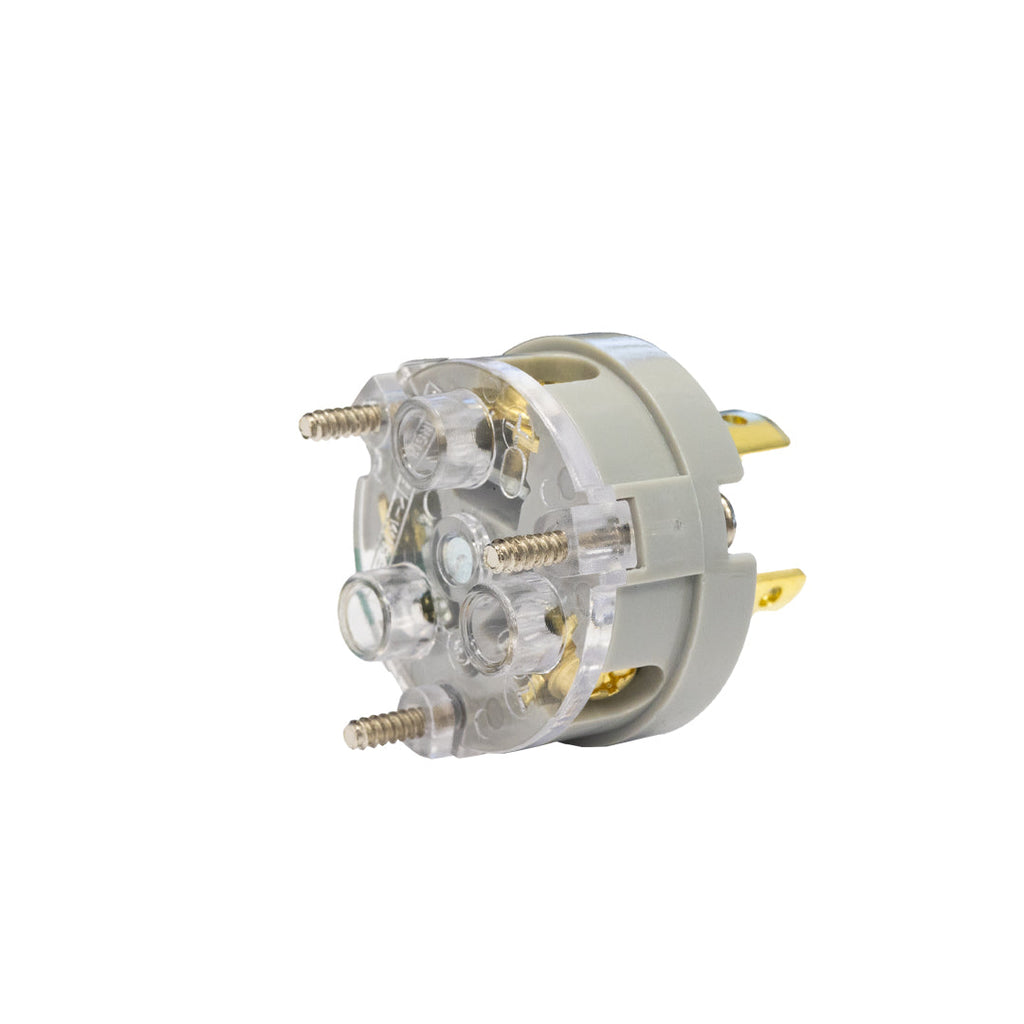

This L6-20P power cord connector is a 2-pole 3-wire grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jacket prevents strain on the terminals.
| Physical Characteristics | |
|---|---|
| No. of Poles | 2-Pole |
| No. Of Conductors | 3 Wires |
| Connectivity | Screw Terminals |
| Material | PC+Nylon |
| Terminal Accommodation | 14AWG |
| Power Rating | 20A 250V |
| Connectors | |
| L6-20P | Male |
| Approvals/Environmental Standards | |
| UL | Approved |
| c(UL)us | Approved |
| RoHS | Compliant |
| REACH | Compliant |
| Conflict Materials | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.15 lbs [0.06kg] |
