Overview

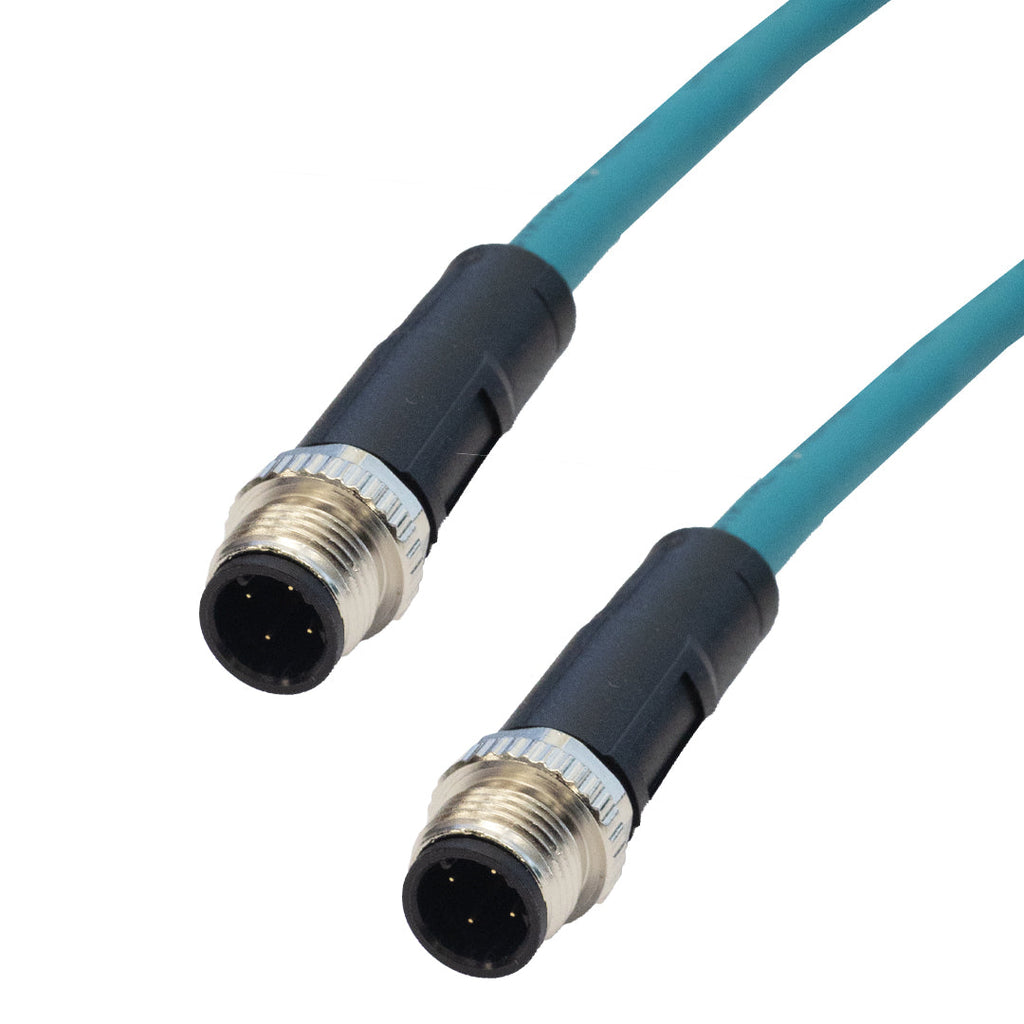

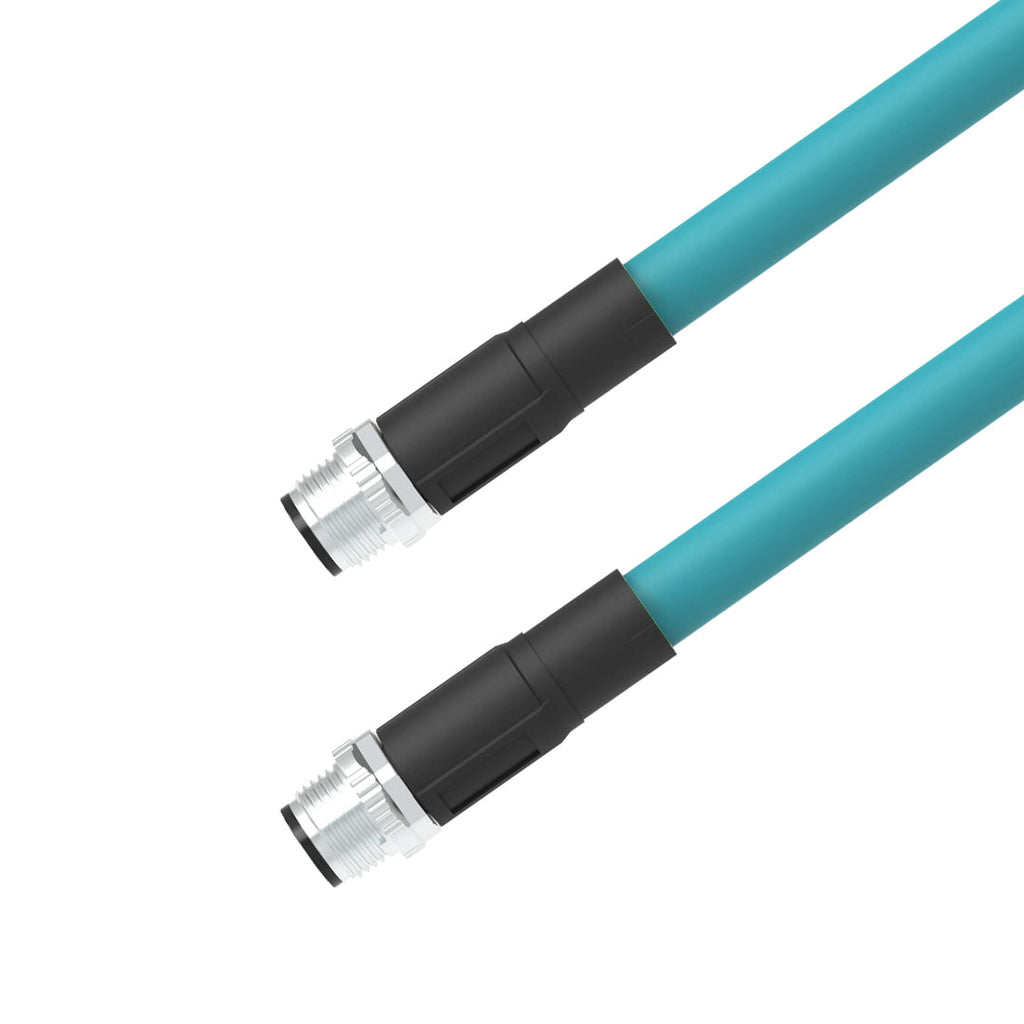

This M12 4-pin D-Code cable is designed for industrial automation with 100Mbps network protocols such as Ethernet/IP, EtherCAT, PROFINET, etc. It is suitable for use in drag chain applications or systems with constant movement. It is typically used to interconnect process controls, robotics and automation systems.
Application:
Specifications

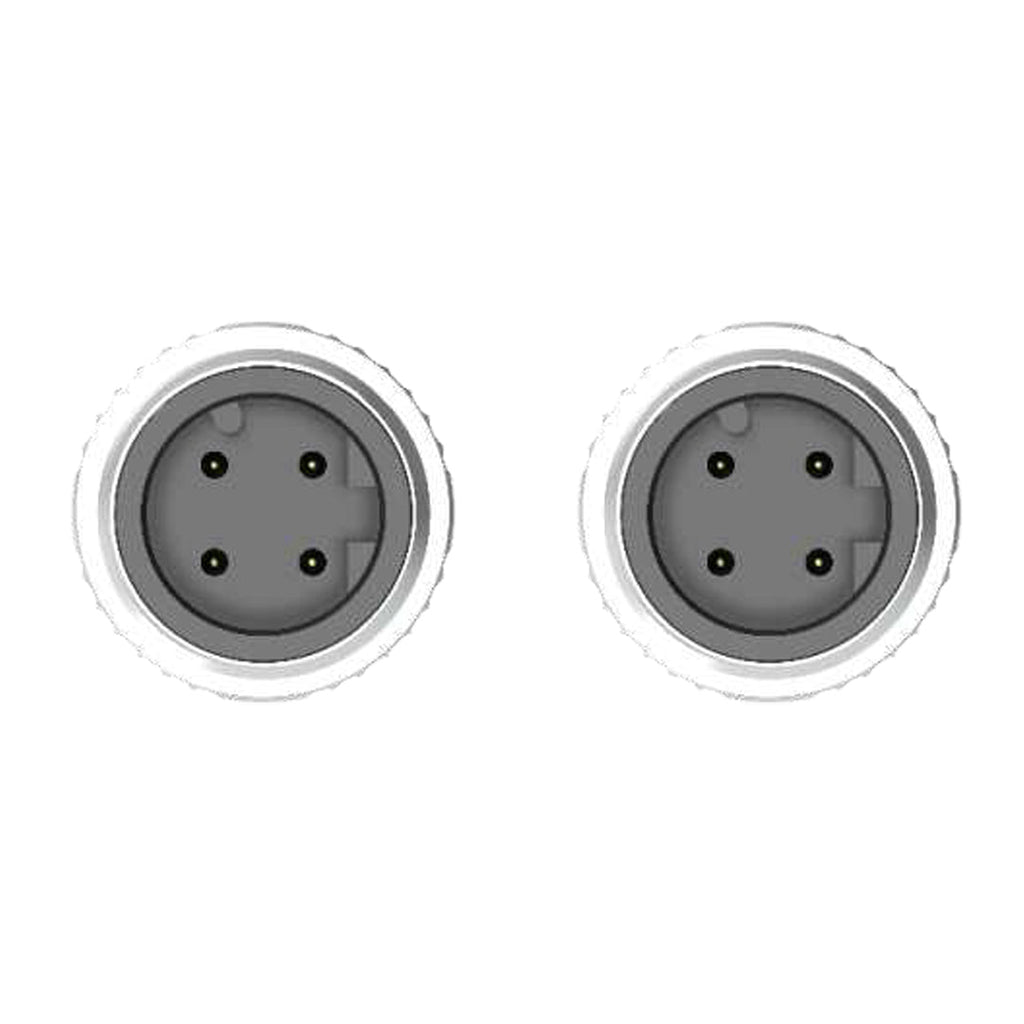

| Physical Characteristics | ||
|---|---|---|
| Color | Teal | |
| Cable Diameter | 6.5±0.2mm | |
| Wire Gauge | 24AWG | |
| Shielded | Compliant | |
| Conductor Structure | 19 x 0.12mm | |
| Sheath Material | PUR | |
| Wire Cross Section |
33.2mm2 | |
| Temperature Range (Mobile) | -25℃ to 70℃ | |
| Temperature (Fixed) | -25℃ to 80℃ | |
| Temperature Range (Cable: Fixed) | -40℃ to 80℃ | |
| Dragchain Capable | 5 million times | |
| Cable: Torsion Capable | 2 million times | |
| Bending Radius (Mobile) | min. 15 x OD | |
| Bending Radius (Fixed) | min. 8 x OD | |
| Operating Voltage | max. 60 VDC | |
| Nominal Voltage | 300 V | |
| Contact Resistance | max. 30 mohm | |
| Operating Current per Contact | max. 4A | |
| Chemical Resistance | No | |
| Flame Resistance | UL94 | |
| Oil Resistance | ASTM 1 oil, Mineral oils, limited to hydraulic oils | |
| Acid and Alkali Resistance | No | |
| Pollution Degree | 3 | |
| Connector(s) | Connector A | Connector B |
|
|
|
| Connection | M12 | M12 |
| Angle Cable Outlet | 0 Degree | 0 Degree |
| Gender | Male | Male |
| Coding | D | D |
| No. of Poles | 4 | 4 |
| Width Across Flats | SW13 | SW13 |
| Tightening Torque | 0.6 Nm | 0.6 Nm |
| Knurled Nut Material | Zinc-pressure die casting, Surface Ni | Zinc-pressure die casting, Surface Ni |
| Degree of Protection | IP66K, IP67 | IP66K, IP67 |
| Approvals/Environmental | ||
| CE, c(UL)us | Compliant | |
| RoHS | Compliant | |
| Silicon-Free | Compliant - Cable | |
