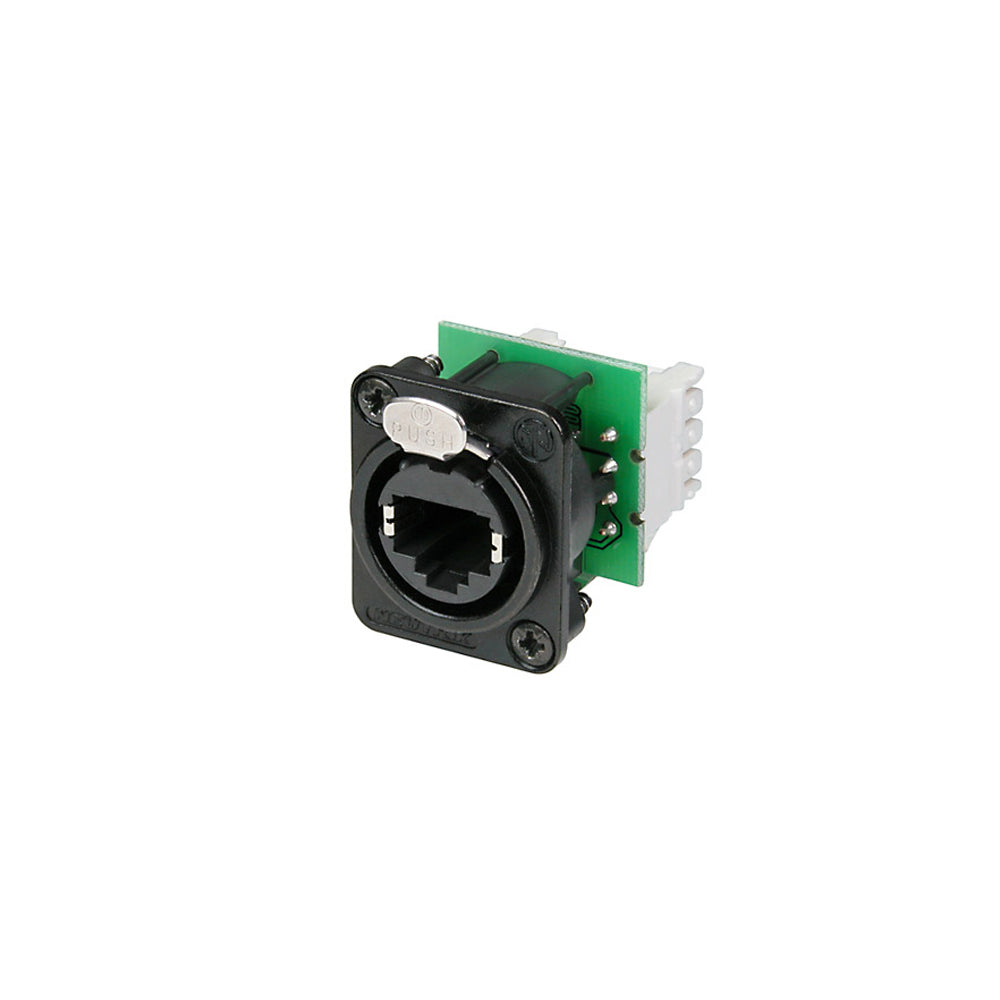

This panel mount receptacle with IDC 110 punch down terminals is optimized for pro audio, video and lightning network applications.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Nickel |
| Temperature Range | -30℃ to +80℃ |
| Boot | Polyurethan |
| Contact Plating | 0.2 µm Au over Ni Plating |
| Contacts | Bronze |
| Insert | PBTP 15% GR |
| Shell | Zinc Diecast |
| Shell Plating | Black Chromium |
| Strain Relief | Tin Plated |
| Gender | Female |
| Electrical Characteristics | |
| Capacitance between Contacts | ? 7 pF |
| Contact Resistance | < 10 mΩ |
| Dielectric Strength | 1 kVdc |
| Frequency Range | 1 - 100 MHz |
| Insulation Resistance | > 0.5 GΩ |
| Rated Current Per Contact | 1,5 A |
| Rated Voltage | < 50 V |
| Transmission Performance | CAT5e |
| Standard Compliance | TIA/EIA 586B, IEC11801 |
| Mechanical Characteristics | |
| Insertion Force | ? 20 N |
| Withdrawal Force | ? 20 N |
| Lifetime | > 1000 mating cycles |
| Panel Thickness | Max. 4mm 0.16 inches |
| Wire size | 0.14 - 0.5 mm² 26 - 20 AWG |
| Wiring | IDC 110 Punch Down Terminals |
| Locking Device | Latch Lock |
| Chassis Shape | D |
| Environmental | |
| Flammability | UL 94 V-0 |
| Manufacturer Information | |
| Neutrik Part Number | NE8FDV-Y110-B |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
