Description
Overview

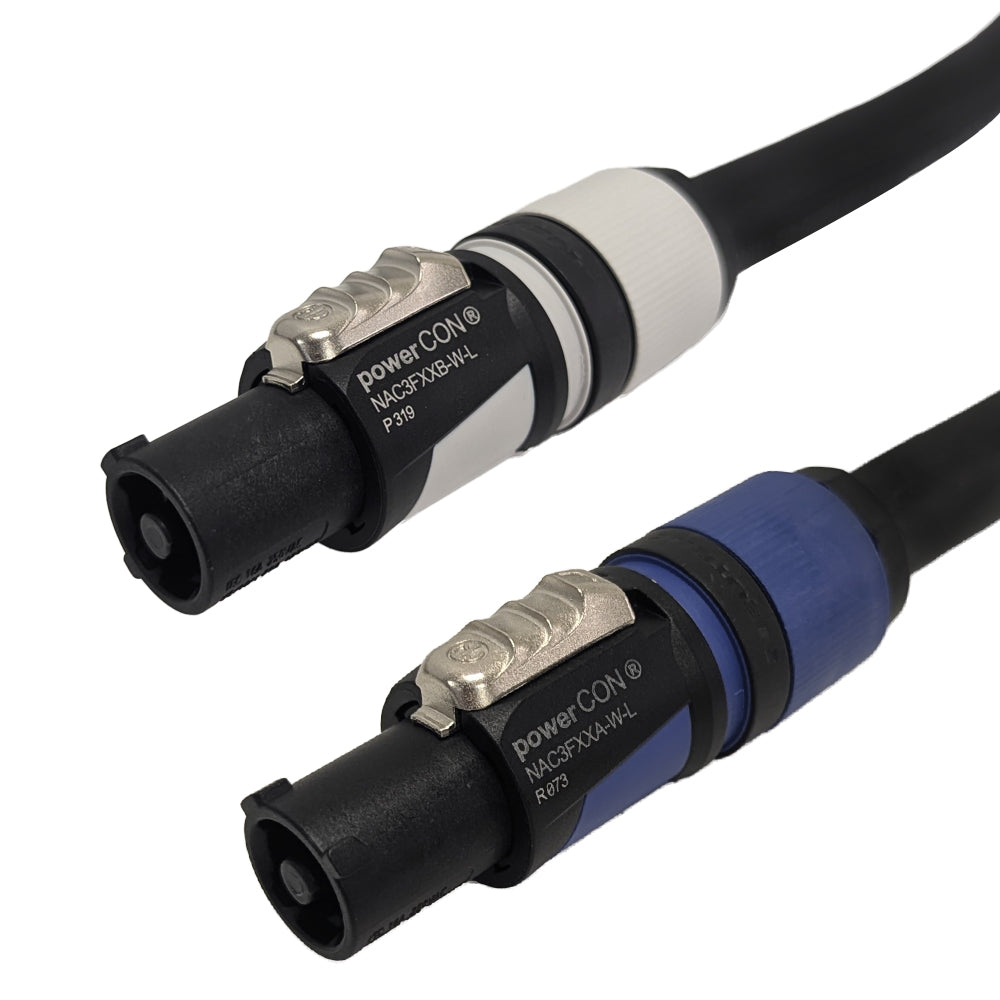

This power cord consists of a powerCON grey AC power-out on one end and a powerCON blue AC power-in on the other end. It is typically used for power connection in Pro AV lighting and display applications.
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 12AWG |
| Jacket | SOOW |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -33 °C to +80 °C |
| Connector(s) | |
| Connector A | powerCON Blue AC Power-out (Grey) |
| Connector B | powerCON Blue AC Power-in (Blue) |
| Performance | |
| Power Rating |
20 Amp / 125 Volt (12AWG) |
| Approvals | |
| powerCON AC Power-in | c(UL)us |
| Cable | c(UL)us |
| powerCON AC Power-in | VDE |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 100ft |
|---|---|---|---|---|---|---|---|---|
| 0.19 lbs | 0.29 lbs | 0.50 lbs | 0.70 lbs | 1.00 lbs | 1.57 lbs | 2.10 lbs | 2.90 lbs | 4.80 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.
For the lead-time on a larger quantity orders, please contact us via phone at
