Description

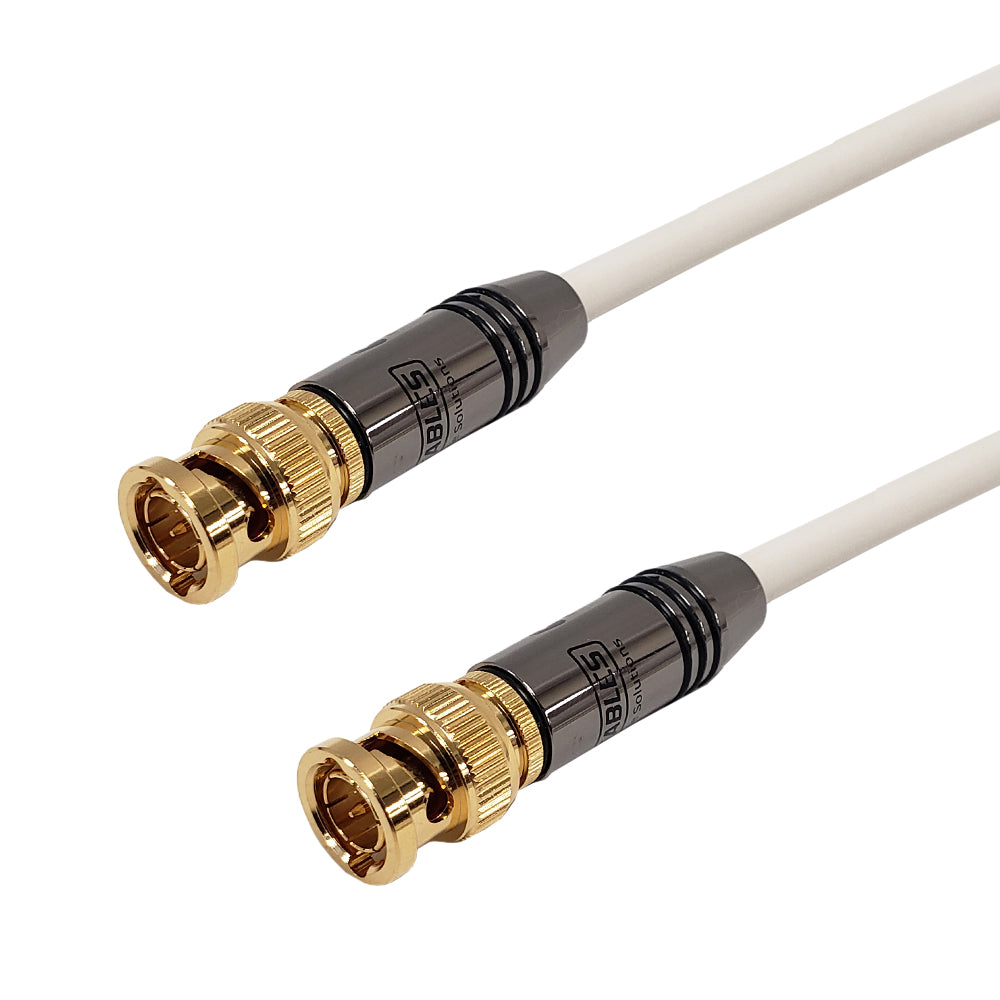

This plenum rated BNC composite cable consists of BNC male connectors on both ends. It is typically used to connect a video cameras BNC composite output to a monitors BNC composite input.
- Constructed shielded 75 ohm RG6 solid 18AWG cable
- Cable jacket is CMP plenum rated
- High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
- The connector backshells are made of a durable, zinc plated metal alloy
- Lead-free solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Color | White |
| Connector Plating | Gold |
| Cable Type | RG6 75 Ohm CCS |
| Wire Gauge | 18AWG Solid |
| Jacket Material | CMP Plenum Rated |
| Fire Rating | CMP |
| Connector(s) | |
| Connector A | 1 - BNC Male |
| Connector B | 1 - BNC Male |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 - Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft | 125ft | 150ft |
|---|---|---|---|---|---|---|---|---|
| 0.75 lbs | 1.00 lbs | 1.50 lbs | 2.00 lbs | 2.75 lbs | 4.00 lbs | 5.25 lbs | 6.50 lbs | 7.75 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.
For the lead-time on a larger quantity orders, please contact us via phone at
