Premium Phantom Cables Single Male to 2x RCA Female Audio Cable FT4
Premium Phantom Cables Single Male to 2x RCA Female Audio Cable FT4

Premium Phantom Cables Single RCA Male to 2x RCA Female Audio Cable FT4

RCA Audio CablesSKU: RCA1M2F-01.5
No reviews
Length: 1.5ft
Price:
$21.85
Stock:
Re-stocking soon

Description

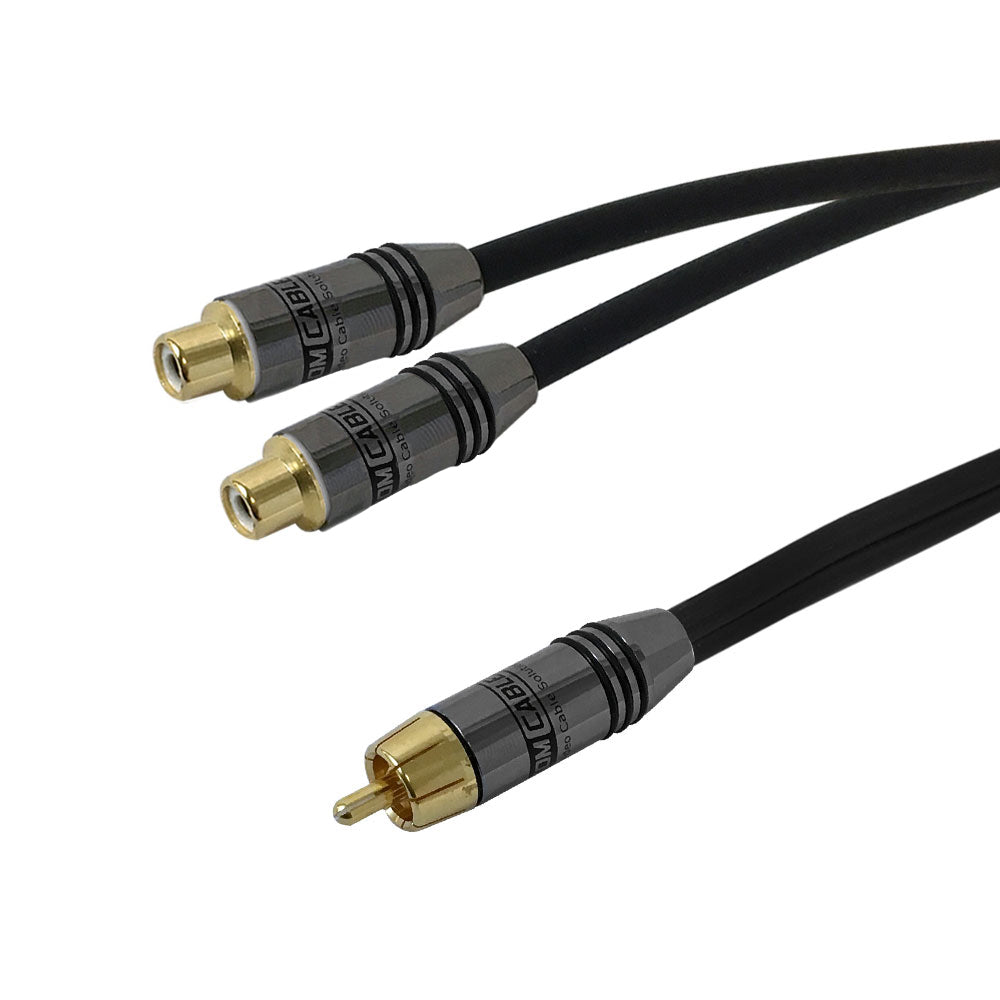

This audio cable has a RCA male on one end and two RCA females on the other. It is typically used to split a mono RCA signal audio signal to left and right channel audio inputs.

  • 22 gauge, heavy duty cable is used to capture all highs & lows for optimum audio performance
  • Constructed of "Siamese" cable for easy installation of left and right audio
  • Constructed of low-loss, stranded 22 gauge OFHC (Oxygen Free Copper) with a foam polyethylene insulation around center conductors
  • 95% braided copper shield surrounds dielectric for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
  • Multi-stranded copper center conductors allows for extra flexible cables
  • High quality, 24K gold plated shielded connectors allows for optimum connectivity and maintains a clean signal integrity
  • FT4 riser fire rated jacket for in-wall use
  • Lead-free solder is used in order to reduce loss and maximize conductivity
Physical Characteristics
Length 1.5 foot
Color Black
Connector Plating Gold
Cable Diameter 5.0mm x 10.0mm
Wire Gauge 22AWG
Jacket Material PVC - Polyvinyl Chloride
Fire Rating FT4 (Riser CMR)
Cable Shielding 95% Bare Copper Braid
Strain Relief Metal Shell
Connectors
Connector A RCA Male - Black
Connector B RCA Female - White
Connector C RCA Female - Red
Approvals
cUL Compliant - Cable
Environmental
RoHS Compliant
Package Information
Package Quantity 1
Product Weight 0.2 lbs [0.09kg]
Warranty Information
Warranty Limited Lifetime

This item is assembled once an order is received.

All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.

For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time.

Shipping Information

RCA1M2F-01.5
0.11 lb
RCA1M2F-03
0.5 lb
RCA1M2F-06
0.34 lb
RCA1M2F-10
0.53 lb
RCA1M2F-15
0.77 lb
RCA1M2F-25
1.25 lb
RCA1M2F-35
1.73 lb
RCA1M2F-50
2.45 lb
