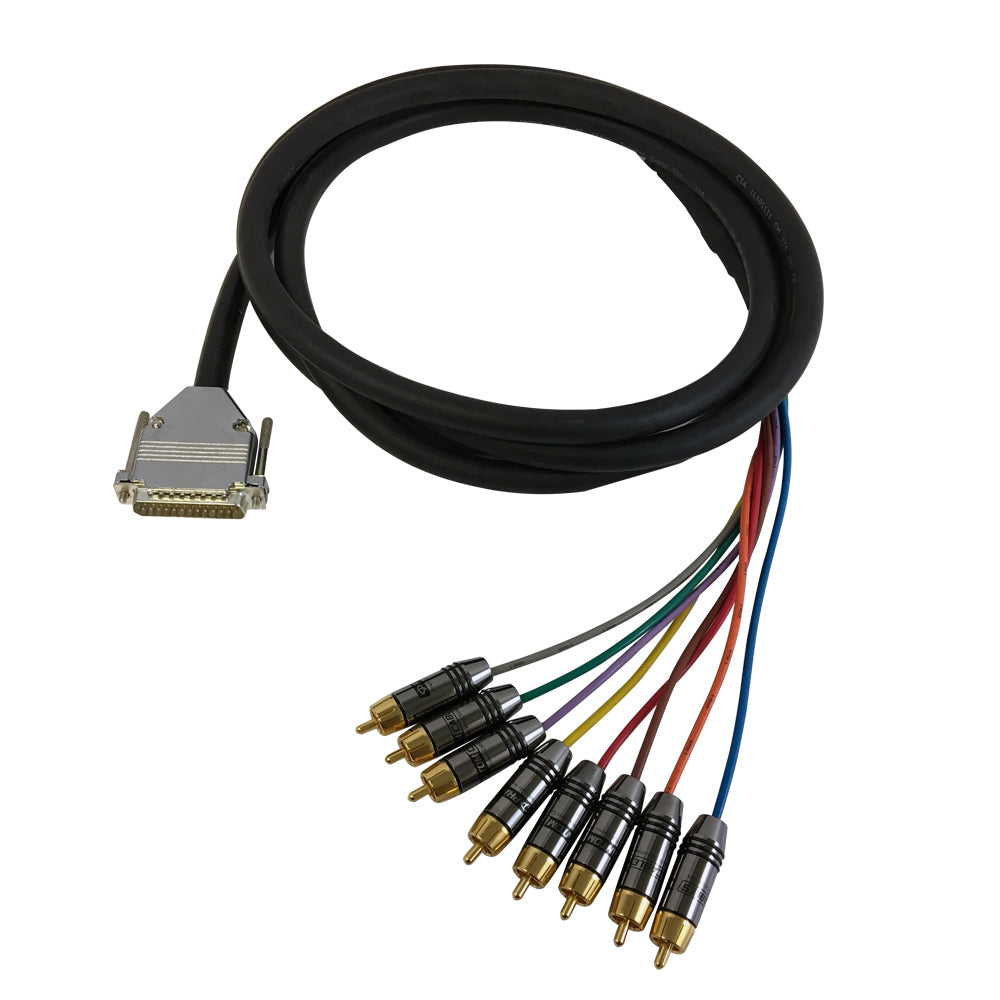

This audio snake cable has a DB25 male on one end and eight RCA males on the other. It has a TASCAM pinout and is typically used to connect a 7.1 surround sound source to a preamp or receiver.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Contact Plating (DB25) | Gold |
| Connector Plating | Gold |
| Cable Shielding | Overall Foil Shielded plus Individually Shielded Pairs with Aluminum-Polyester Foil |
| Wire Gauge | 24AWG |
| Pinout | TASCAM |
| Connectors | |
| Connector A | 1 - DB25 Male |
| Connector B | 8 - RCA Male |
| Environmental | |
| RoHS | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|
| 1.95 lbs | 2.40 lbs | 3.00 lbs | 3.75 lbs | 5.25 lbs | 6.75 lbs | 9.00 lbs |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.
