Rack Studs Series II - Purple (Rail Thickness 2.7mm to 3.2mm)
Rack Studs Series II - Purple (Rail Thickness 2.7mm to 3.2mm)
Rack Studs Series II - Purple Rail Thickness 2.7mm to 3.2mm
Rack Studs Series II - Purple Rail Thickness 2.7mm to 3.2mm
Rack Studs Series II - Purple (Rail Thickness 2.7mm to 3.2mm)
Rack Studs Series II - Purple (Rail Thickness 2.7mm to 3.2mm)

Rack Studs Series II - Purple (Rail Thickness 2.7mm to 3.2mm)

Screws, Cage Nuts & AccessoriesSKU: RM-RSL3.2P100-S2
No reviews

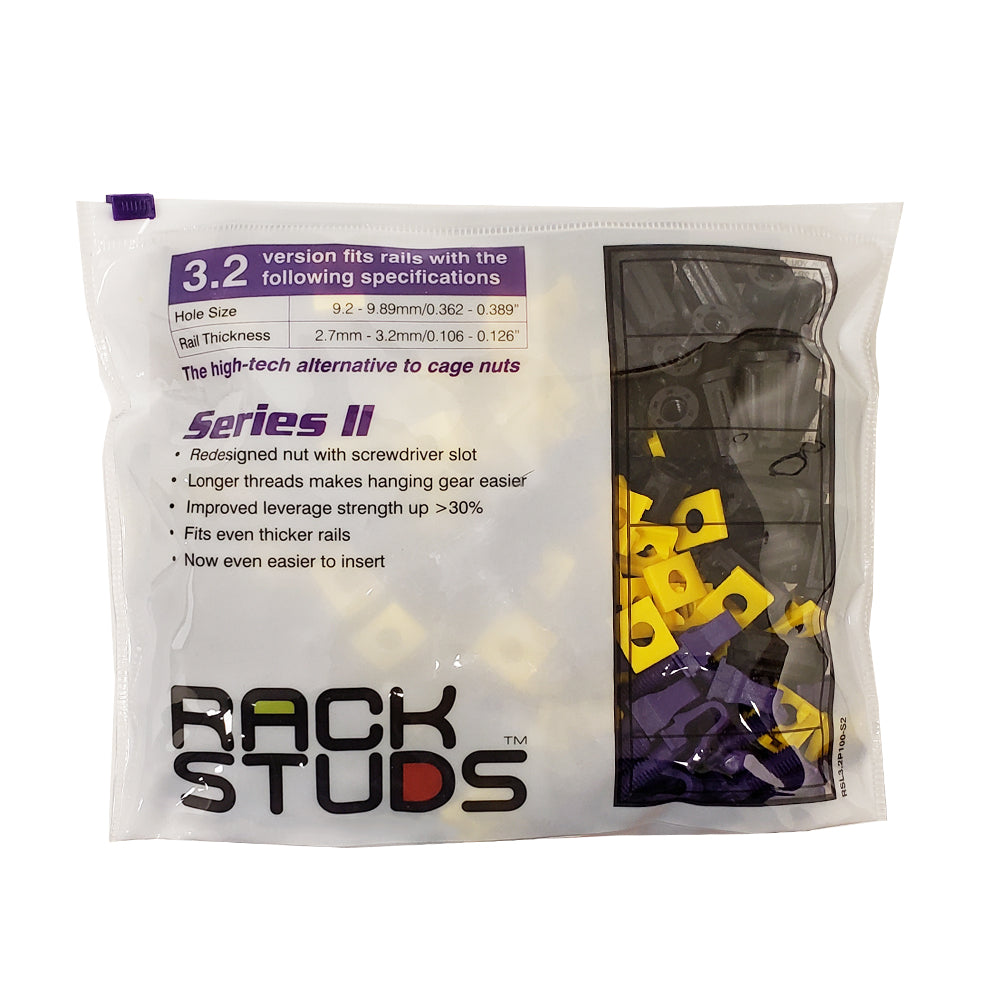

Packging: 100/Pack
Price:
$70.60
Stock:
In stock

Product Weight

RM-RSL3.2P100-S2
0.42 lb
RM-RSL3.2P20-S2
0.16 lb

Description

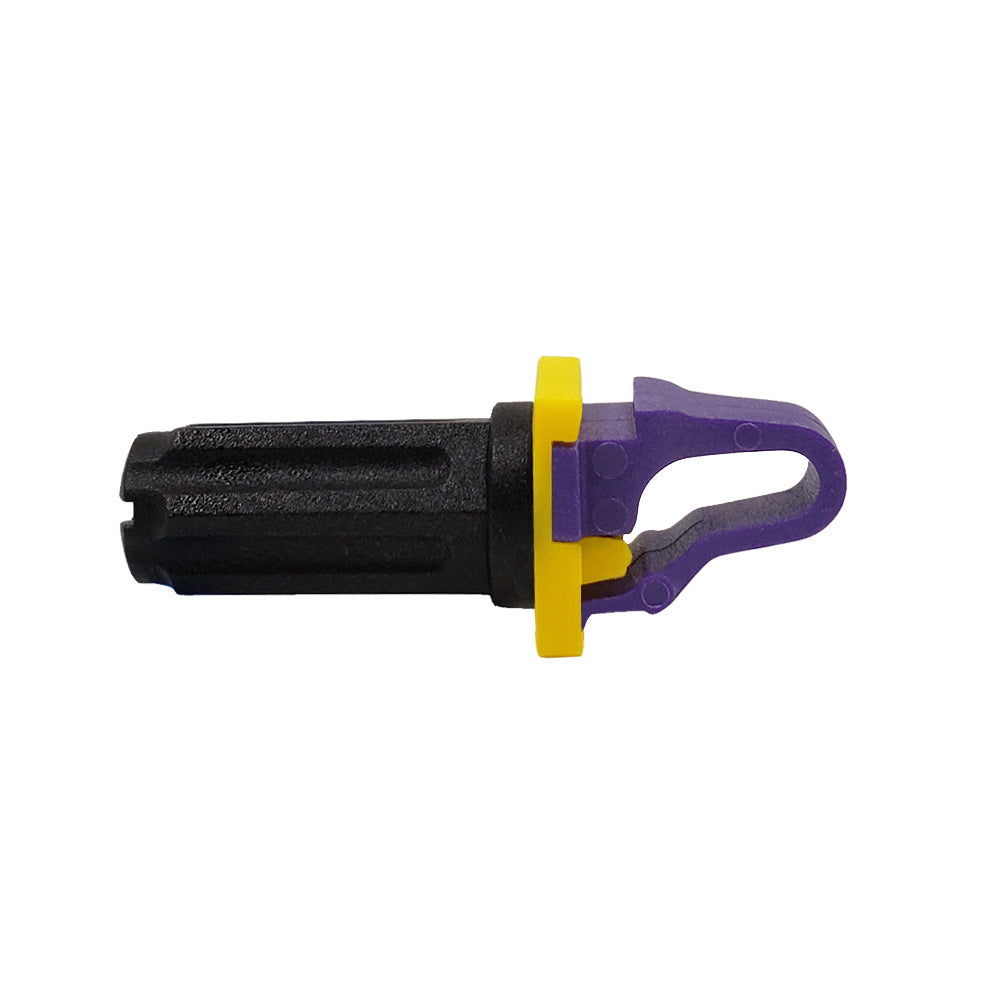

This Rackstud is designed to fit square hole server rails with a thickness of 2.7mm to 3.2mm. The stud is installed from the front of the rail which simplifies the installation in tight spaces. Once the stud and lock washer is installed, equipment can be easily be hung while you secure it in place with the nut.

Features:

  • Redesigned nut with screwdriver slot
  • Longer threads makes hanging gear easier
  • Improved leverage strength up >30%
  • Fits even thicker rails
  • Now even easier to insert

Physical Characteristics

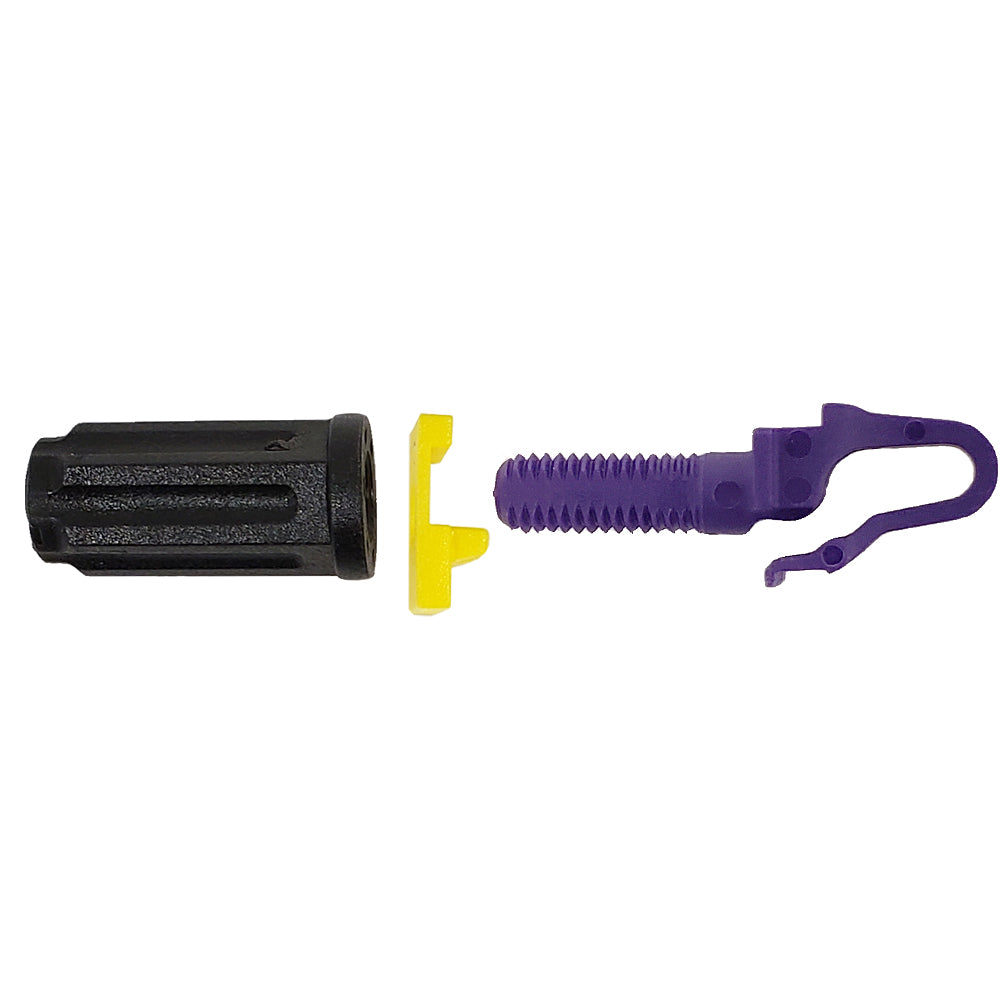

Color Purple Stud, Yellow Lock Washer, Black Nut
Stud Material Grivory
Washer Material PP
Nut Material Glass Filled Nylon
Vertical Rail Hole 9.2 to 9.89mm (0.362" to 0.389")
Vertical Rail Thickness 2.7mm to 3.2mm (0.106" to 0.126")
Maximum Equipment Weight 20kg (44lbs)
Push-In Force 46kgs/101lbs
Pull-Out Force 92kgs/202lbs
Shear Strength 156kg/343lbs
Approvals
SGS Labs Compliant
RoHS
 Compliant
Reach
 Compliant
Packaging Information

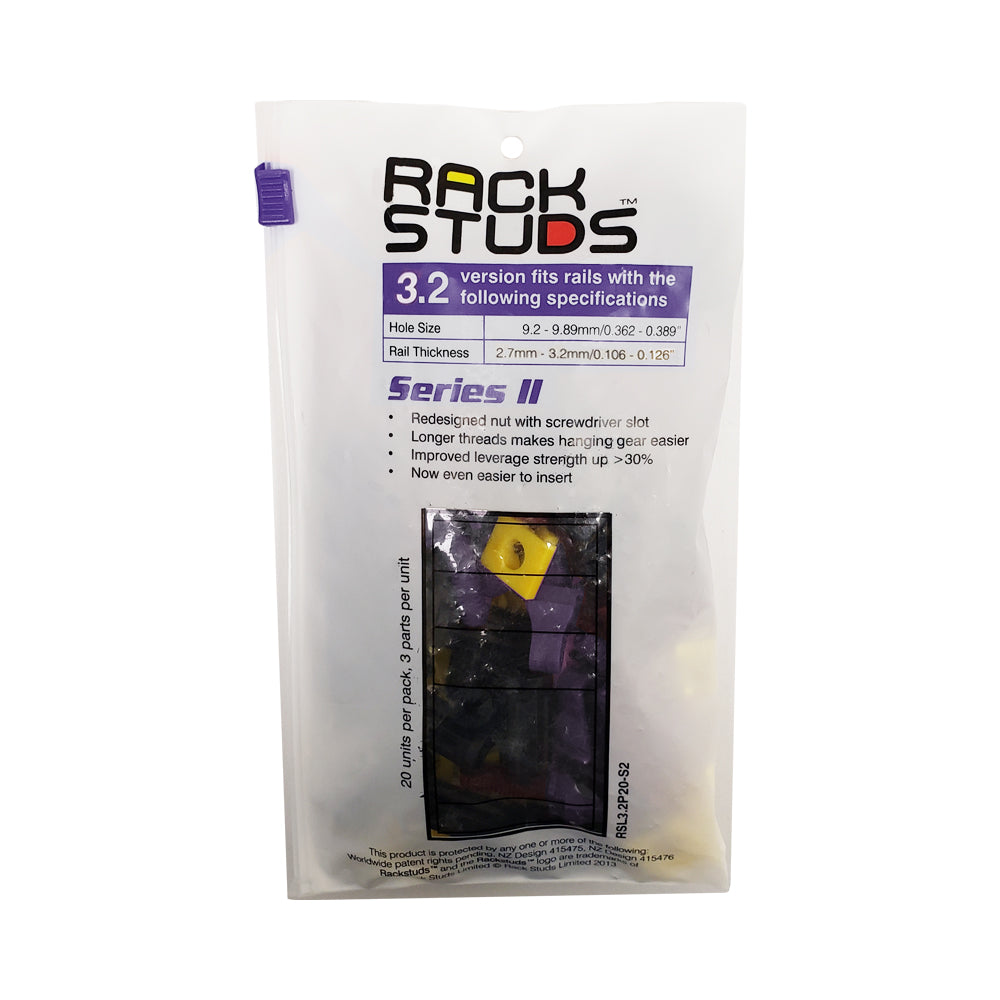

Package Quantity 20, 100
Product Weight 20 pack - 0.16 lbs [0.07 kg]
100 pack - 0.78 lbs [0.36 kg]
 
