Description

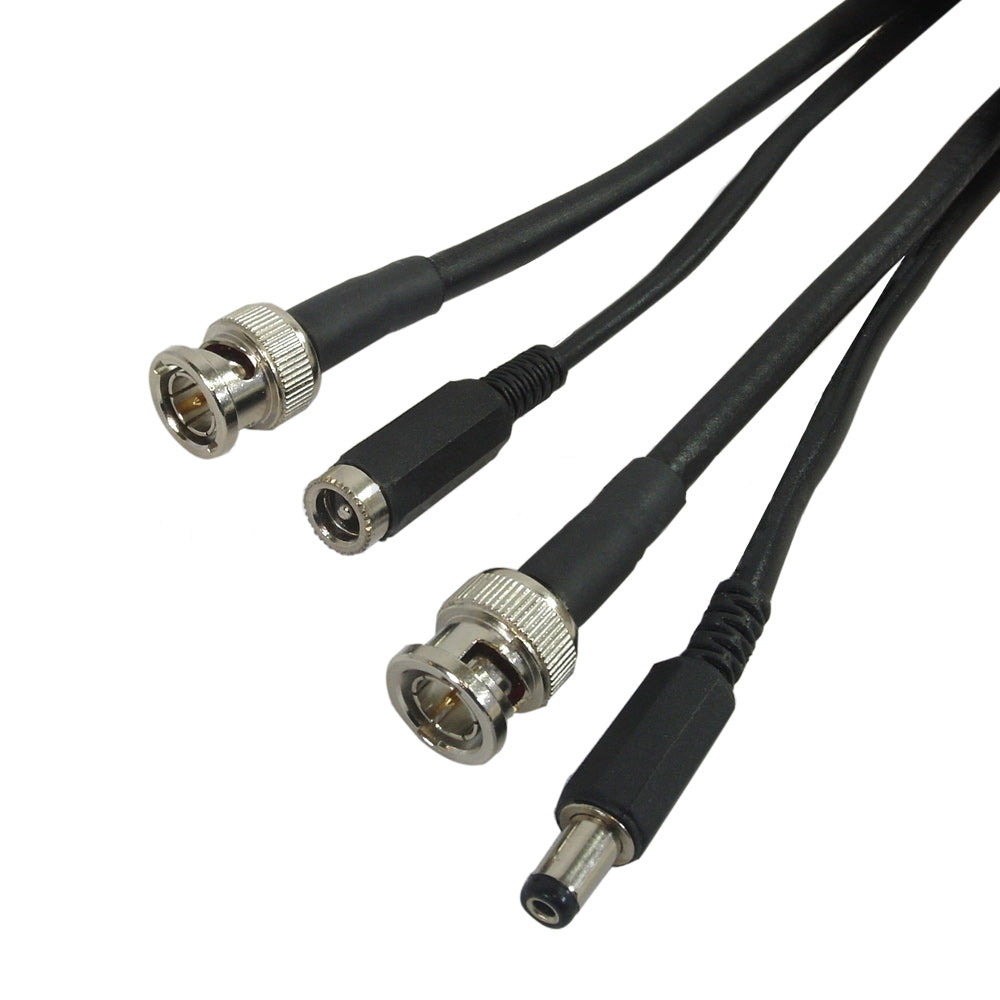

This cable consists of a BNC male plus a DC power plug (2.1mm) on one end and a BNC male plus a DC power receptacle (2.1mm) on the other end. It is typically used to connect a security camera to a DVR.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Cable Type | RG59 + 2C 18AWG Power |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 |
| Cable Shielding | 95% Braid |
| Connector(s) | |
| Connector A | BNC Male |
| Connector B | DC Power Plug Male (2.1mm) |
| Connector C | BNC Male |
| Connector D | DC Power Plug Female (2.1mm) |
| Performance | |
| Impedance | 75 Ohm |
| Packaging Information | |
| Package Quantity | 1 - Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 15ft | 25ft | 35ft | 50ft | 75ft | 100ft | 125ft | 150ft | 175ft | 200ft |
|---|---|---|---|---|---|---|---|---|---|
| 0.60 lbs | 0.96 lbs | 1.33 lbs | 1.88 lbs | 2.79 lbs | 3.71 lbs | 4.62 lbs | 5.54 lbs | 6.45 lbs | 7.36 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.
