Description

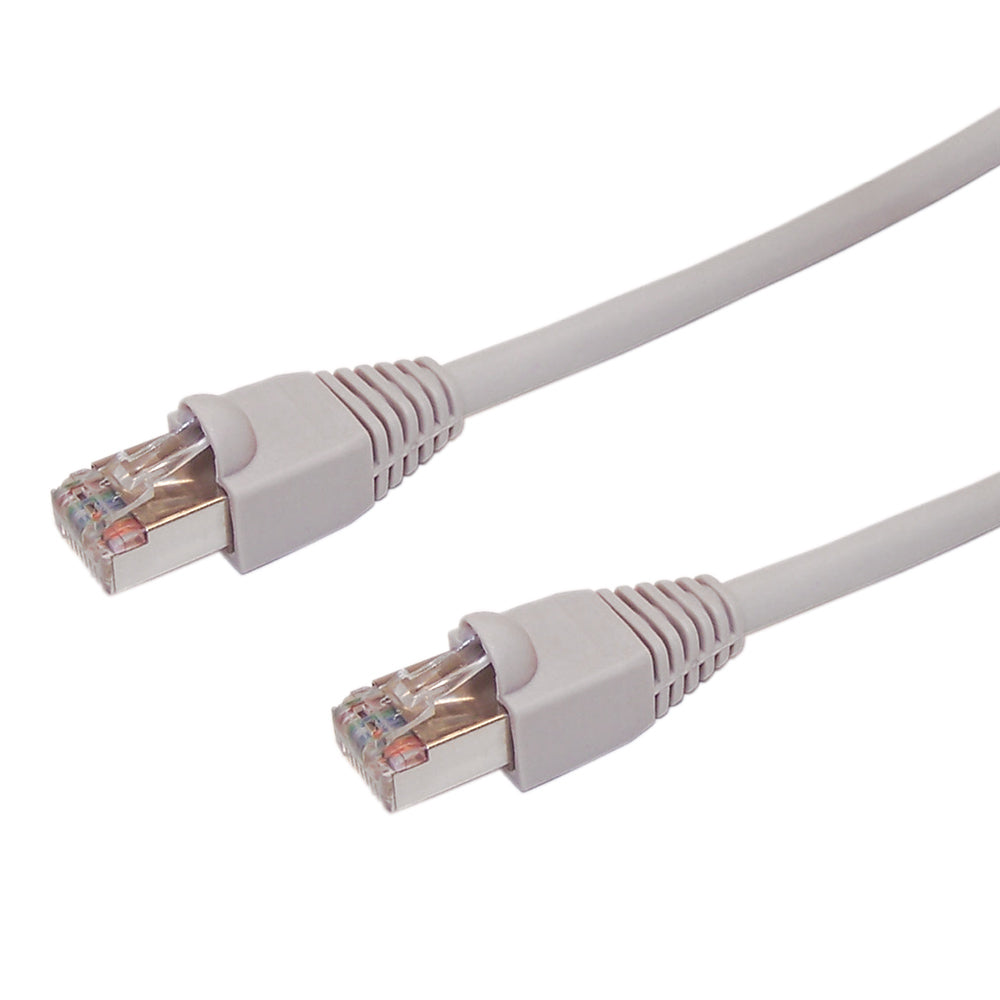

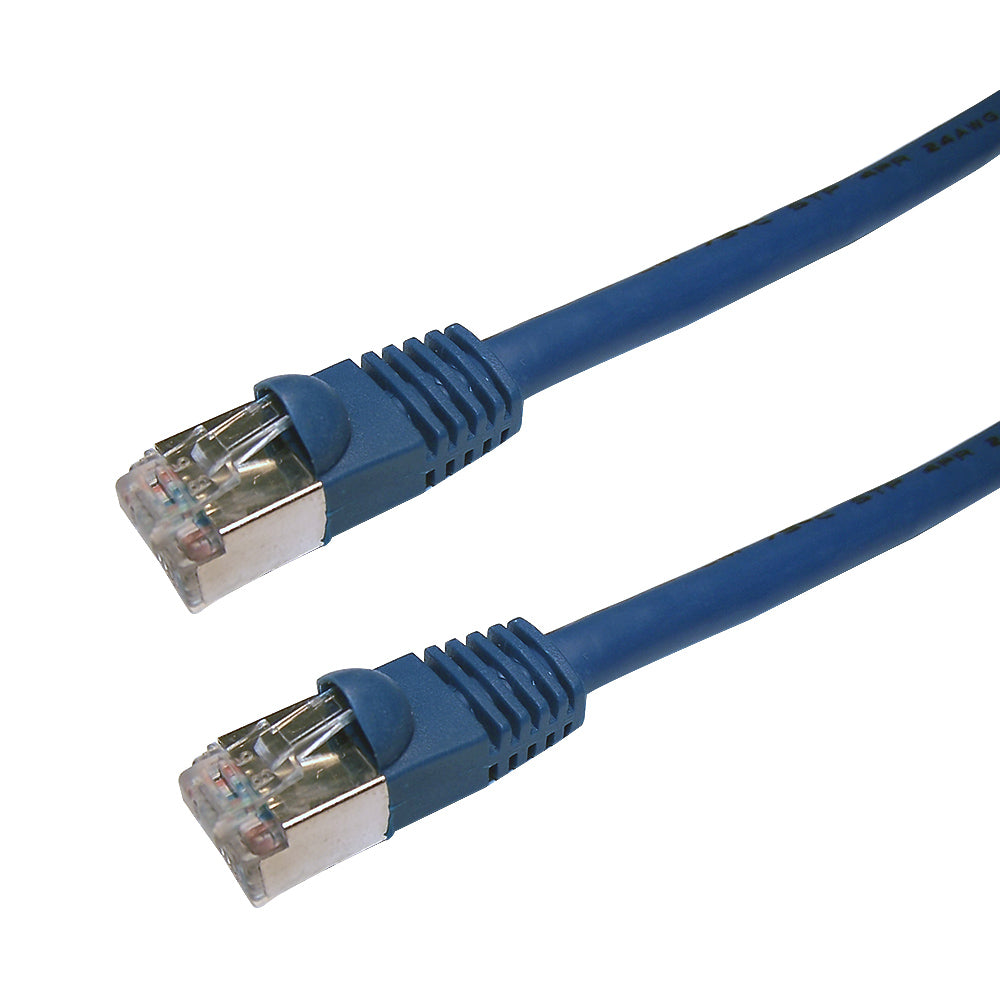

This Cat5e molded shielded ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. The shielding helps protect against electro-magnetic (EMI) and radio frequency interference (RFI).
| Physical Characteristics | |
|---|---|
| Connector Plating | Gold Plated 3 Micron |
| Cable Diameter | 5.8mm |
| Wire Gauge | 26AWG Stranded |
| Shielding | STP 100% Aluminum Mylar Foil Shield |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Color Code | 568B |
| Molding | Molded Bubble Boot Strain Relief |
| Jacket Type | PVC |
| Connectors | |
| Connector A | RJ45 Short Body Male Shielded |
| Connector B | RJ45 Short Body Male Shielded |
| Performance | |
| Frequency | 350 MHz |
| Environmental | |
| RoHS | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
