RJ45 Cat5e Stranded Shielded 26AWG Molded Patch Cable - Premium Fluke® Patch Cable Certified - CMR Riser Rated

CAT5E Patch CablesSKU: CAT5ESM-01BK
No reviews
Length: 1ft
Color: Black
Price:
$2.67
Stock:
In stock

Product Weight

CAT5ESM-01BK
0.07 lb
CAT5ESM-02BK
0.1 lb
CAT5ESM-03BK
0.15 lb
CAT5ESM-05BK
0.2 lb
CAT5ESM-07BK
0.24 lb
CAT5ESM-10BK
0.33 lb
CAT5ESM-15BK
0.5 lb
CAT5ESM-25BK
0.77 lb
CAT5ESM-35BK
1.1 lb
CAT5ESM-50BK
1.55 lb
CAT5ESM-75BK
2.26 lb
CAT5ESM-100BK
3.0 lb
CAT5ESM-01BL
0.07 lb
CAT5ESM-02BL
0.1 lb
CAT5ESM-03BL
0.15 lb
CAT5ESM-05BL
0.2 lb
CAT5ESM-07BL
0.24 lb
CAT5ESM-10BL
0.33 lb
CAT5ESM-15BL
0.5 lb
CAT5ESM-25BL
0.77 lb
CAT5ESM-35BL
1.1 lb
CAT5ESM-50BL
1.55 lb
CAT5ESM-75BL
2.26 lb
CAT5ESM-100BL
3.0 lb
CAT5ESM-01GY
0.07 lb
CAT5ESM-02GY
0.1 lb
CAT5ESM-03GY
0.15 lb
CAT5ESM-05GY
0.2 lb
CAT5ESM-07GY
0.24 lb
CAT5ESM-10GY
0.33 lb
CAT5ESM-15GY
0.5 lb
CAT5ESM-25GY
0.77 lb
CAT5ESM-35GY
1.1 lb
CAT5ESM-50GY
1.55 lb
CAT5ESM-75GY
2.26 lb
CAT5ESM-100GY
3.0 lb
CAT5ESM-01WH
0.07 lb
CAT5ESM-02WH
0.1 lb
CAT5ESM-03WH
0.15 lb
CAT5ESM-05WH
0.2 lb
CAT5ESM-07WH
0.24 lb
CAT5ESM-10WH
0.33 lb
CAT5ESM-15WH
0.5 lb
CAT5ESM-25WH
0.77 lb
CAT5ESM-35WH
1.1 lb
CAT5ESM-50WH
1.55 lb
CAT5ESM-75WH
2.26 lb
CAT5ESM-100WH
3.0 lb

Description

Overview

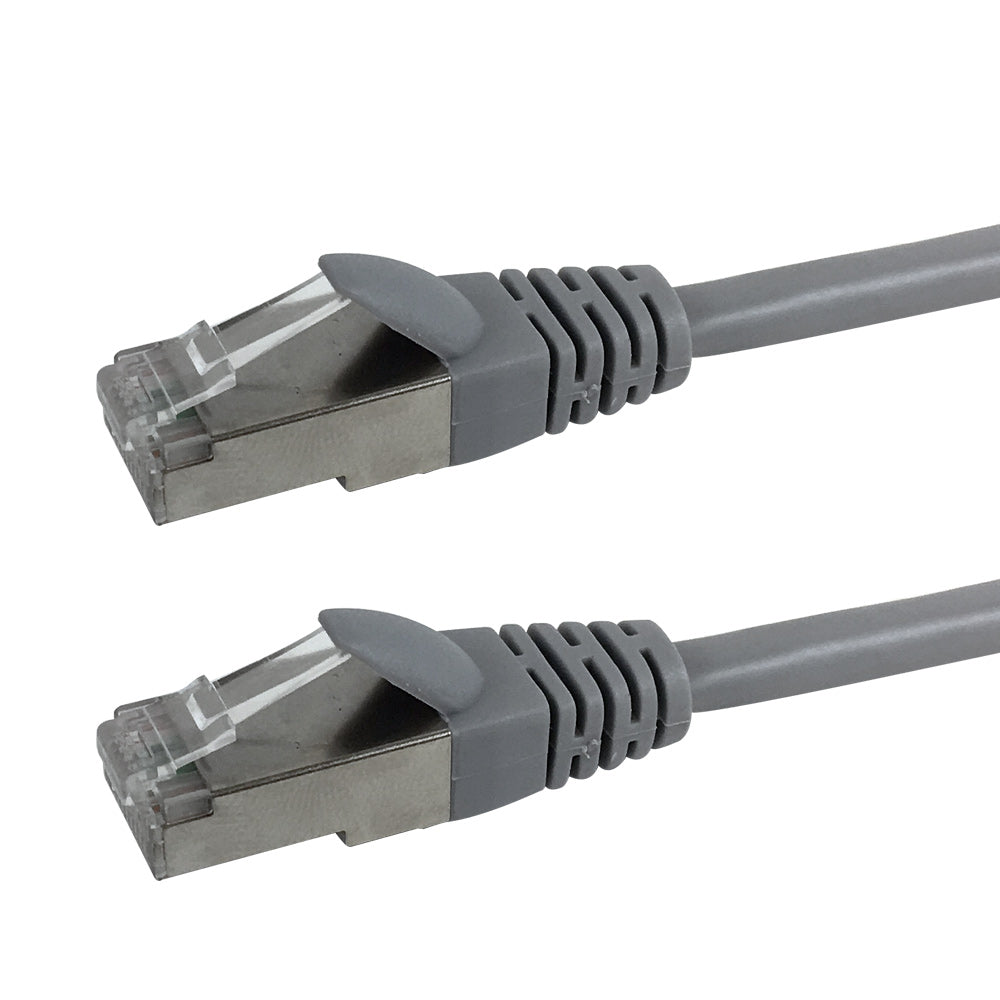

This Cat5e shielded ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. The shielding helps protect against electro-magnetic (EMI) and radio frequency interference (RFI). These cables are Fluke® Cat5e patch cable certified. The cable jacket is also CMR (riser) fire rated.

100% Pure Copper

This cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime.

50 Micron Gold Plated Connectors

This non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.

Double Shielded

100% mylar foil shielded pairs is optimal for interference prone areas, and shielded RJ45 connectors offer enhanced isolation.

Fluke® Patch Cable Certified

Our cables are 100% tested to pass a Fluke® CAT5e patch cable test.

Specifications

Physical Characteristics
Connector Plating Gold Plated 50 Micron
Cable Diameter 5.5mm
Wire Gauge 26AWG Stranded
Shielding F/UTP (100% Overall Mylar Foil Shield)
Pairs 4
Fire Rating CMR (FT4 Riser Rated)
Molding Assembled Tab Style Strain Relief
Temperature Rating 75℃
Jacket Type PVC
Connectors
Connector A RJ45 Shielded Long Body Male
Connector B RJ45 Shielded Long Body Male
Performance
Fluke® CAT5E Patch Cable Test Compliant
Approvals
c(UL)us Compliant - Cable
ETL Verified Compliant
ANSI/TIA - 568 - C.2 Compliant
ISO/IEC 11801 Compliant
Environmental
RoHS Compliant
Reach Compliant
Conflict Materials Compliant
Package Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
1ft 2ft 3ft 5ft 7ft 10ft 15ft 25ft 35ft 50ft 75ft 100ft
0.03 lbs 0.06 lbs 0.09 lbs 0.15 lbs 0.25 lbs 0.30 lbs 0.45 lbs 0.75 lbs 1.05 lbs 1.50 lbs 2.25 lbs 3.00 lbs
