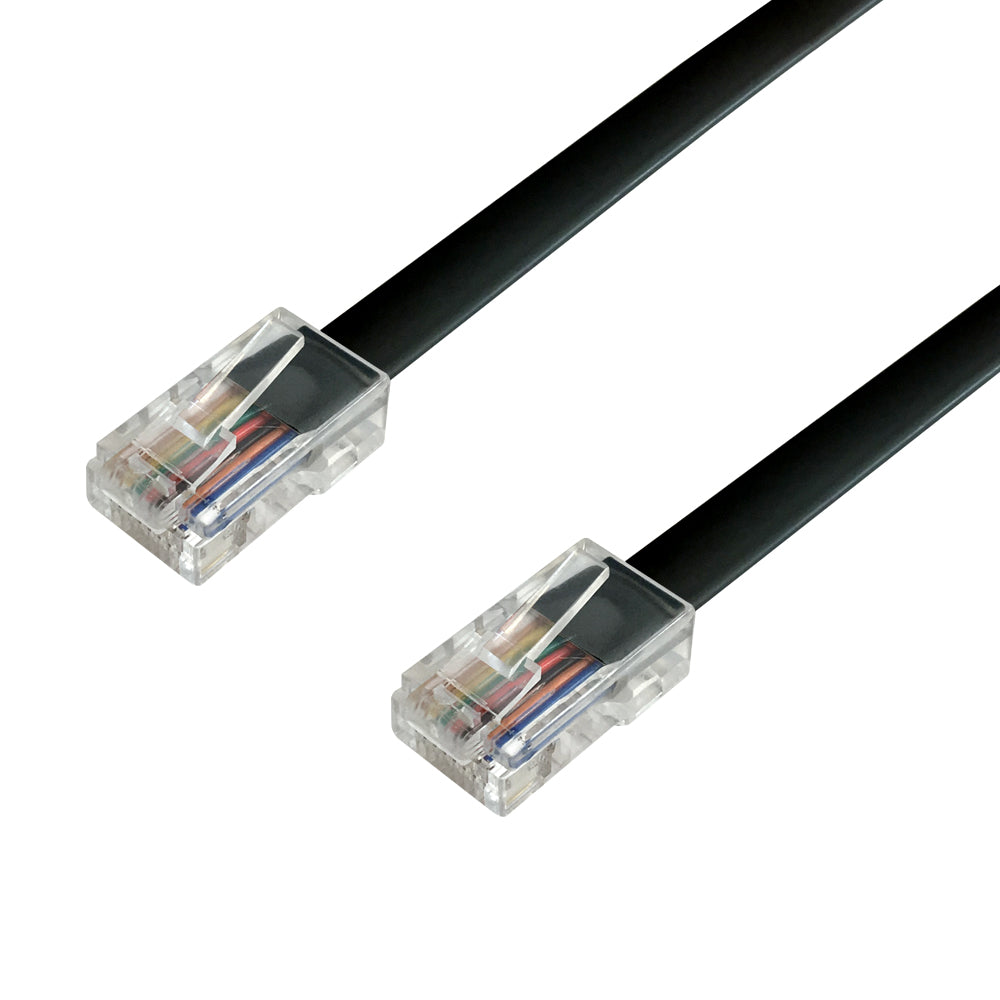

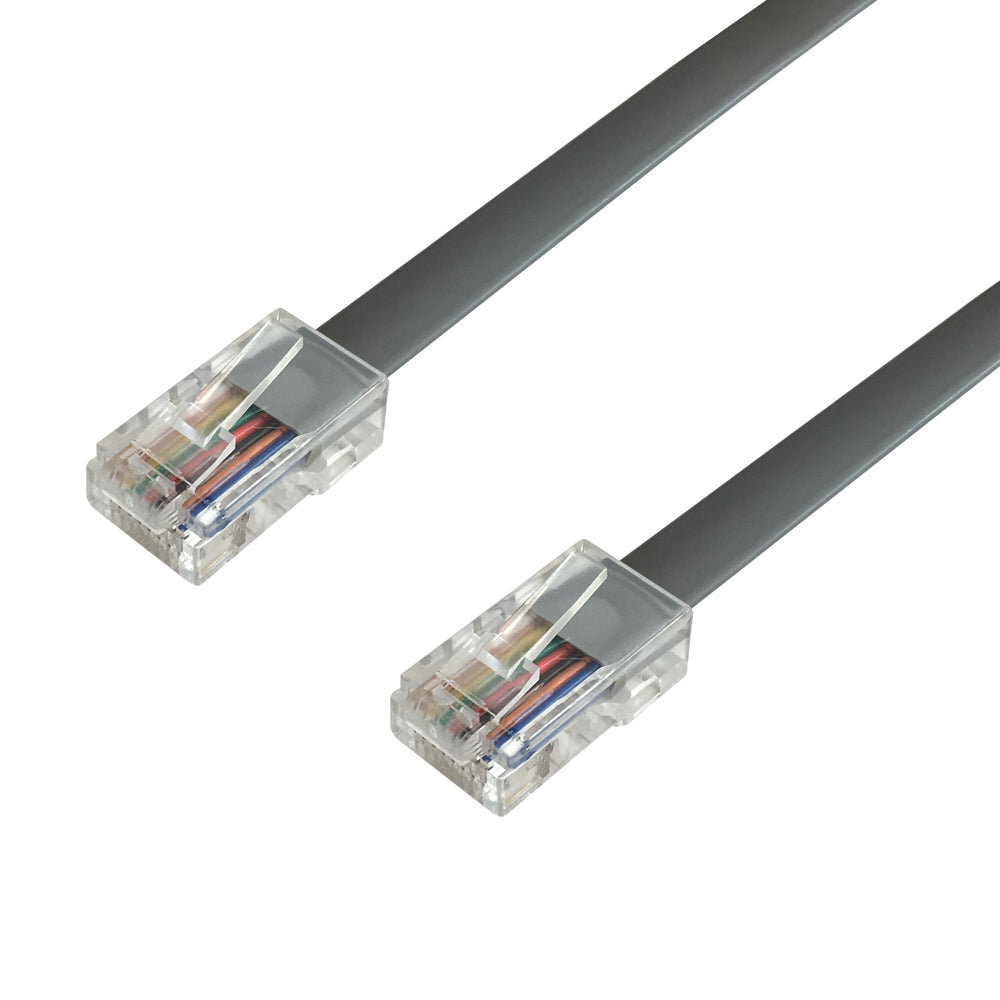

This modular flat phone cable consists of a RJ45 (8P8C) male plug on both ends and has straight through wiring. It is typically used in data line applications.
| Physical Characteristics | |
|---|---|
| Color | Black/Silver Satin |
| Contact Plating | Gold |
| Cable Diameter | 8.8mm x 2.5mm |
| Wire Gauge | 26AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | VW-1 |
| Temperature Rating | 60℃ |
| Cable Voltage Rating | 150V |
| Wiring | Straight Through (1-1, 2-2, 3-3, 4-4, 5-5, 6-6, 7-7, 8-8) |
| Connector(s) | |
| Connector A | RJ45 (8P8C) Male |
| Connector B | RJ45 (8P8C) Male |
| Approvals | |
| UL | Compliant - Cable |
| cUL | Compliant - Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.
