Product Weight
Description
- Description
Description

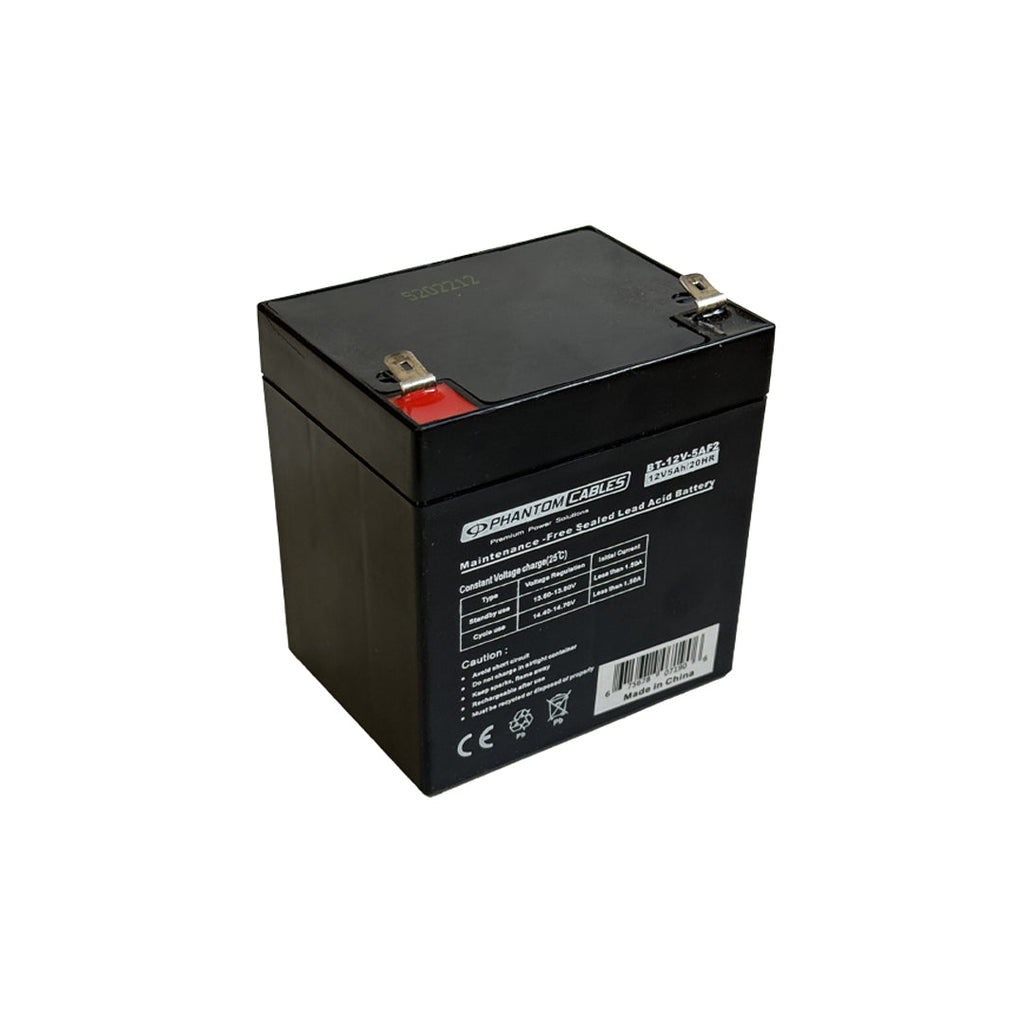

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.
Application
Specifications
| Physical Characteristics | |
|---|---|
| Type | 8x UPS Replacement |
| Absorbed Glass Mat (AGM) | Yes |
| Voltage | 12V |
| Amps | 5A |
| Terminal Type | F2 |
| Tab Size | 0.25 inch |
| Container Material | ABS(UL-94HB) |
| Length | 3.54 inches [90mm] |
| Width | 2.76 inches [70mm] |
| Height | 3.98 inches [101mm] |
| Operating Temperature | 25±3℃ (77±5℃F ) |
| Compatible Terminal Adapter | |
| BT-ADT2T1 | Battery terminal adapter F2 female (0.25") to F1 male (0.1875") |
| Performance | |
| Internal Resistance | Approx.45m٦ |
| Max. Discharge Current | 75A(5S) |
| Rated Capacity | 5.00AH (20hr, 1.75V/cell,25℃/77℃F) |
| Cycle Use | Initial Charging Current less than1.80A 14.1V~14.7V@25℃(77℃F)Temp. Coefficient -30mV/℃ |
| Floating Use | No limit on Initial Charging Current Voltage 13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃ |
| Capacity affected by Temperature | 40℃ 102% 25℃ 100% 0℃ 85% -15℃ 64% |
| Self-discharge | 3 month Remaining capacity: 91% 6 month Remaining capacity:82% 12 month Remaining capacity:64% |
| Packaging Information | |
| Product Weight | 30 lbs [13.6kg] |
| Packaging Quantity | 8 UPS Battery 12V 5amp |
| Warranty Information | |
| Warranty | 6 Months |
| Compatibility Information | |
| Model Number | APC Smart-UPS SU5000T APC Smart-UPS SU5000TX168 APC Smart-UPS SU5000TXFMR APC Smart-UPS SU2000R3X155 APC Smart-UPS SU2000RMXLX157 APC Smart-UPS SU2200R3BX120 APC Smart-UPS SU2200R3X106 APC Smart-UPS SU2200R3X147 APC Smart-UPS SU2200R3X152 APC Smart-UPS SU2200R3X167 APC Smart-UPS SU2200RM3U APC Smart-UPS SU3000R3BX120 APC Smart-UPS SU3000R3X145 APC Smart-UPS SU3000RM3U APC Smart-UPS SU3000RMT3U APC Smart-UPS SU3000RMT3U APC Smart-UPS SU3000RMTX136 APC Smart-UPS SU5000R5TBX120 APC Smart-UPS SU5000RMTSU APC Smart-UPS AP9621 Powerware UPS 5125-EBM-48RM Powerware UPS 9120-2000 Powerware UPS 9120-3000 Powerware UPS 9120-3000B Powerware UPS 9120-BAT-1500 |
