Description
This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.
Application
Specifications
| Physical Characteristics | |
|---|---|
| Type | UPS Replacement |
| Voltage | 12V |
| Amps | 7A |

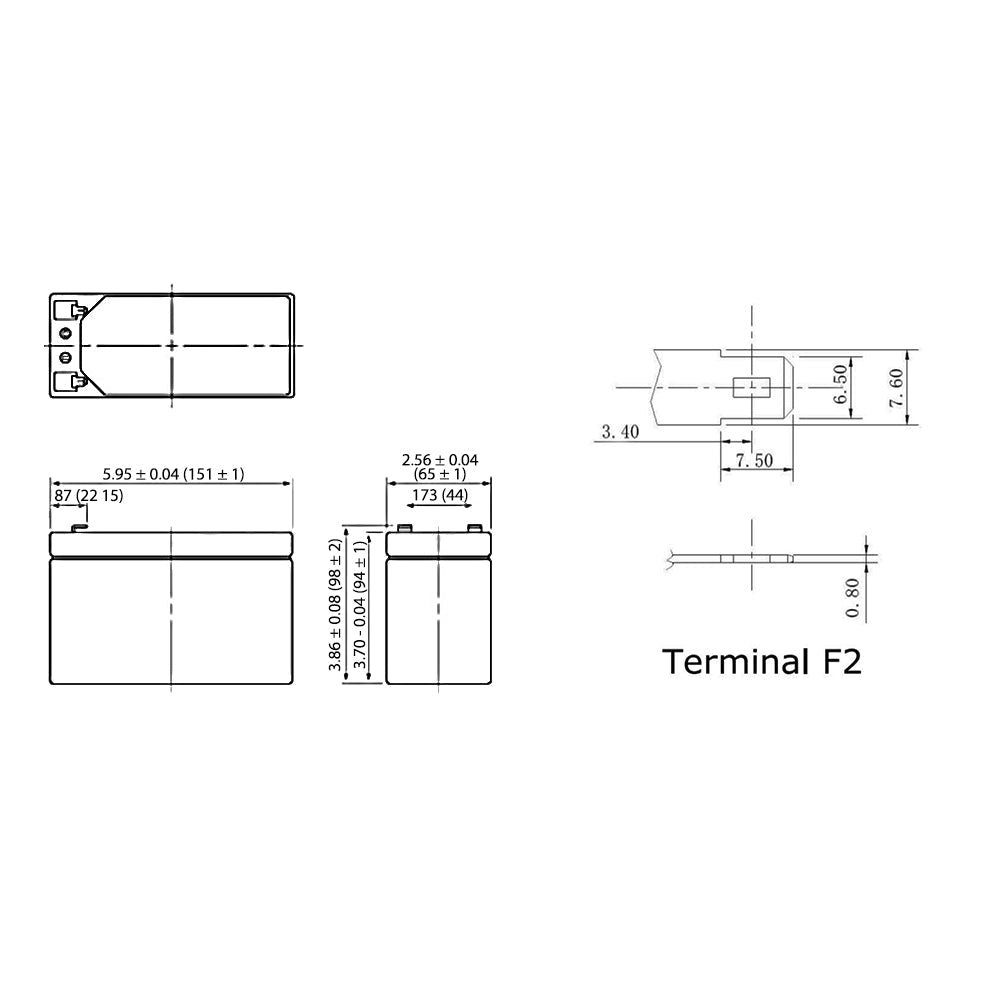

| Terminal Type | F2 |
| Tab Size | 0.25 inch |
| Container Material | ABS(UL-94HB) |
| Length | 5.94 inches [151mm] |
| Width | 2.56 inches [65mm] |
| Height | 3.70 inches [100mm] |
| Operating Temperature | 25±3℃ (77±5℃F ) |
| Compatible Terminal Adapter | |
| BT-ADT2T1 | Battery terminal adapter F2 female (0.25") to F1 male (0.1875") |
| Performance | |
| Internal Resistance | Approx.25mΩ |
| Max. Discharge Current | 112.5A(5S) |
| Rated Capacity | 7.00AH (20hr, 1.75V/cell,25℃/77℃F) 6.40AH (10hr, 1.75V/cell,25℃/77℃F) 5.95AH (5hr, 1.75V/cell,25℃/77℃F) 4.55AH (1hr, 1.75V/cell,25℃/77℃F) |
| Cycle Use |
Initial Charging Current less than 2.10A Voltage 14.10-14.40V |
| Floating Use | No limit on Initial Charging Current Voltage 13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃ |
| Capacity affected by Temperature |
40℃ 102% 25℃ 100% 0℃ 85% -15℃ 64% |
| Self-discharge | 3 month Remaining capacity: 91% 6 month Remaining capacity:82% 12 month Remaining capacity:64% |
| Packaging Information | |
| Product Weight | 5.45 lbs [2.5kg] |
| Warranty Information | |
| Warranty | 6 Months |
| Compatibility Information | |
| Model Number | APC Smart-UPS SP500DR APC Smart-UPS SU360SX APC Smart-UPS SU420NET APC Smart-UPS SUVS420 APC Smart-UPS AP280 APC Smart-UPS AP330 APC Smart-UPS AP330XT APC Smart-UPS AP360 APC Smart-UPS AP360SX APC Smart-UPS 550 ES Belkin UPS F6C225-USB Belkin UPS F6C250-USB Belkin UPS F6C325-SER Belkin UPS F6C350-USB Belkin UPS F6C425 Belkin UPS F6C425-SER Belkin UPS F6C500-USB Belkin UPS F6C525 Belkin UPS F6C625 Belkin UPS F6C650 Belkin UPS F6C650-USB Belkin UPS F6C750-AVR Exide NetUPS 450 Powerware UPS 3105-700 Powerware UPS 3110-550 Powerware UPS 3110-700 Powerware UPS 3115-300 Powerware UPS 3115-420 Powerware UPS 5105-450 Powerware UPS 5110-700 Tripp-Lite Office UPS BC300 Tripp-Lite Office UPS BC400 STANDBY Tripp-Lite Office UPS BC420 Tripp-Lite Office UPS BC450 Tripp-Lite Office UPS BC500 Internet Tripp-Lite Office UPS BC500 LAN Tripp-Lite Office UPS OFFICE 500 Tripp-Lite Omni UPS OMNISMART 450 Tripp-Lite Smart UPS SMART 400 Tripp-Lite Smart UPS SMART 500 |
