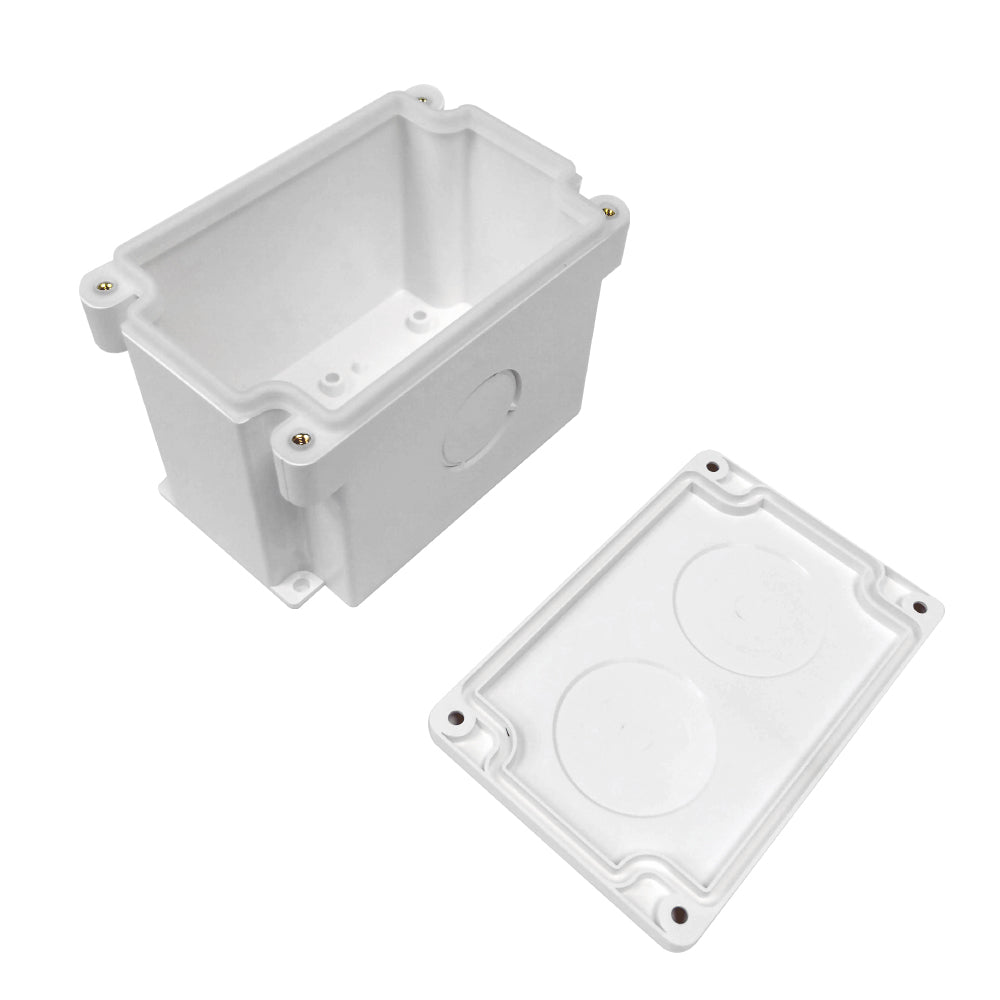

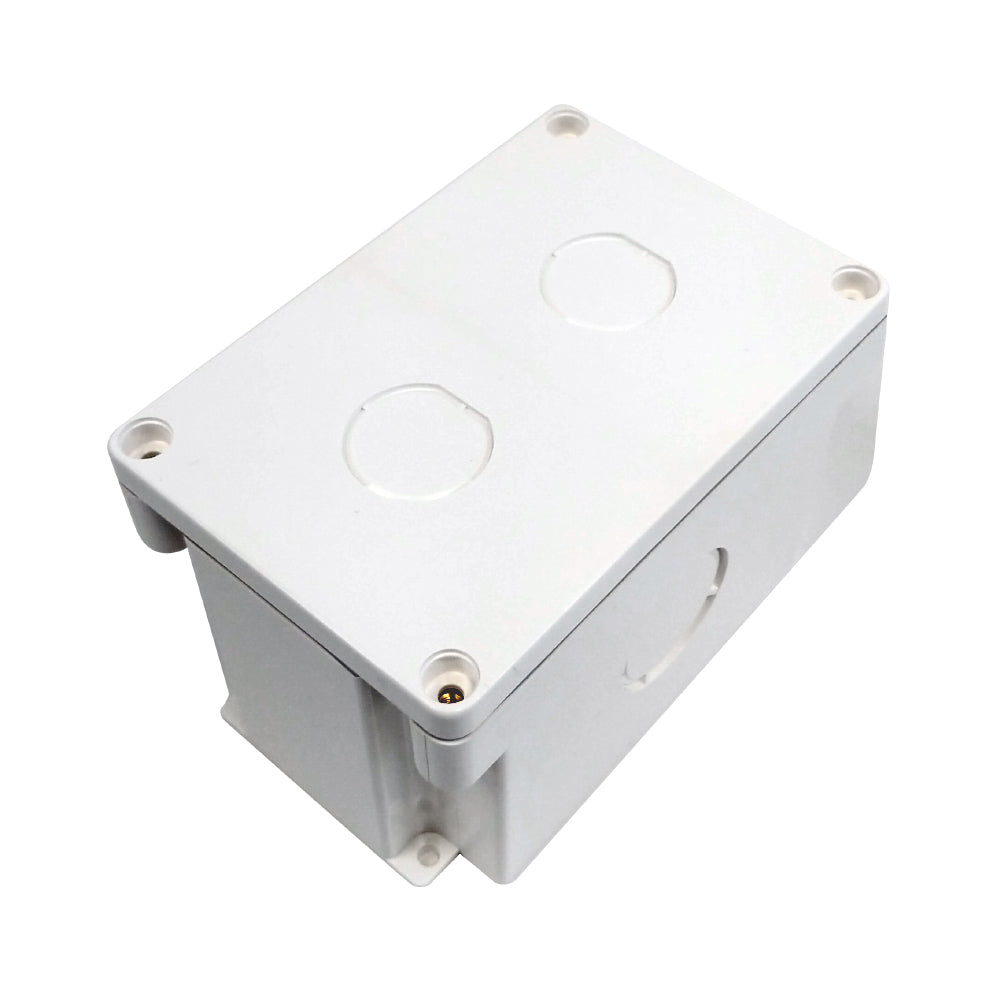

This waterproof single gang surface mounting box can accept up to two RJ45 bulkhead couplers. It is typically used to house bulkhead jacks and couplers and can be mounted on a wall where dust, water and protection from the elements is required. It is IP68 rated and is suitable for outdoor or industrial applications.
| Physical Characteristics | ||
|---|---|---|
| Color | White | |
| Size | Single Gang | |
| Housing Material | Polycarbonate Resin High-Impact UL94V-0 Thermoplastic | |
| Gasket | Rubber | |
| Knockout Holes |
2x Ethernet Bulkhead 1x M32 Conduit Gland 2x M16 Cable Gland |
|
| Operating Temperature | -10℃ to 60℃ | |
| Storage Temperature | -40℃ to 68℃ | |
| Humidity | 10% ~ 90% RH | |
| Connectors | ||
| Ethernet Bulkhead Hole | 2 | |
| Compatible Items | ||
| CN-C5E-FFS-IP68 | Cat5e RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black | |
| CN-C6-FFS-IP68 | Cat6 RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black | |
| CN-C6A-FFS-IP68 | Cat6A RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black | |
| JK-C5P-SBK-IP68 | Cat5e RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black | |
| JK-C6P-SBK-IP68 | Cat6 RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black | |
| Environmental | ||
| IP Rating | IP68Rated | |
| RoHS | Compliant | |
| Packaging Information | ||
| Product Weight | 0.41 lbs [0.18 kg] | |
| Included in Package | 1 - Surface Box |
|
