Description

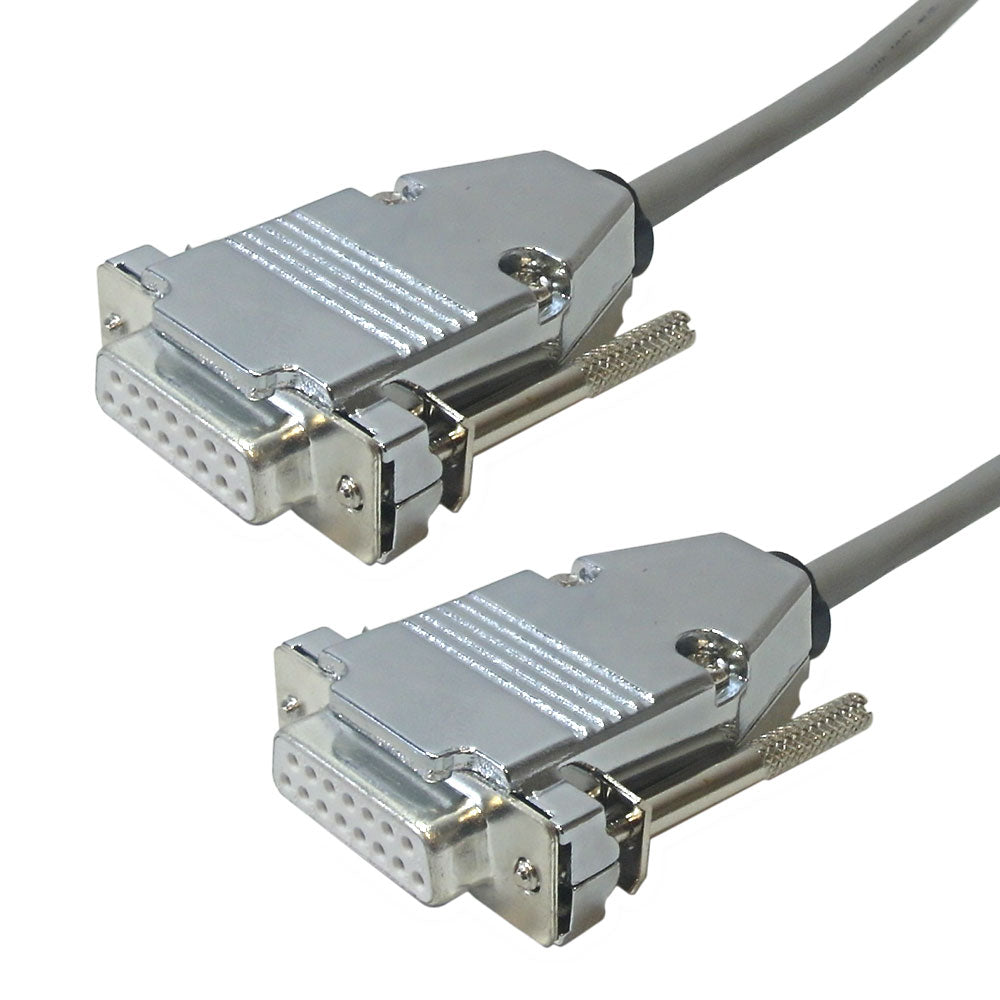

This T1 cable is constructed using two pair shielded T1 rated cable and consists of DB15 female connector on both ends. It is designed to be used specifically for T1 telecommunication applications where cross-over wiring is required.
| Physical Characteristics | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Color | Grey | ||||||||||||||||||||
| Shielded | Compliant | ||||||||||||||||||||
| Cable Rating | T1 | ||||||||||||||||||||
| Wire Gauge | 24 AWG | ||||||||||||||||||||
| Impedance | 100 Ohm | ||||||||||||||||||||
| Wiring | Cross-Over | ||||||||||||||||||||
| Connectors | |||||||||||||||||||||
| Connector A | DB15 female | ||||||||||||||||||||
| Connector B | DB15 female | ||||||||||||||||||||
| Pin-outs | |||||||||||||||||||||
|
|||||||||||||||||||||
| Environmental | |||||||||||||||||||||
| RoHS | Compliant | ||||||||||||||||||||
| Packaging Information | |||||||||||||||||||||
| Package Quantity | 1 | ||||||||||||||||||||
| Warranty Information | |||||||||||||||||||||
| Warranty | Limited Lifetime | ||||||||||||||||||||
| 3ft | 7ft | 10ft | 15ft | 25ft | 50ft | 75ft | 100ft | 125ft | 150ft |
| 0.20lbs | 0.50lbs | 0.70lbs | 0.90lbs | 1.60lbs | 3.20lbs | 4.80lbs | 6.40lbs | 8.00lbs | 9.60lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.
For the lead-time on a larger quantity orders, please contact us via phone at
