Description

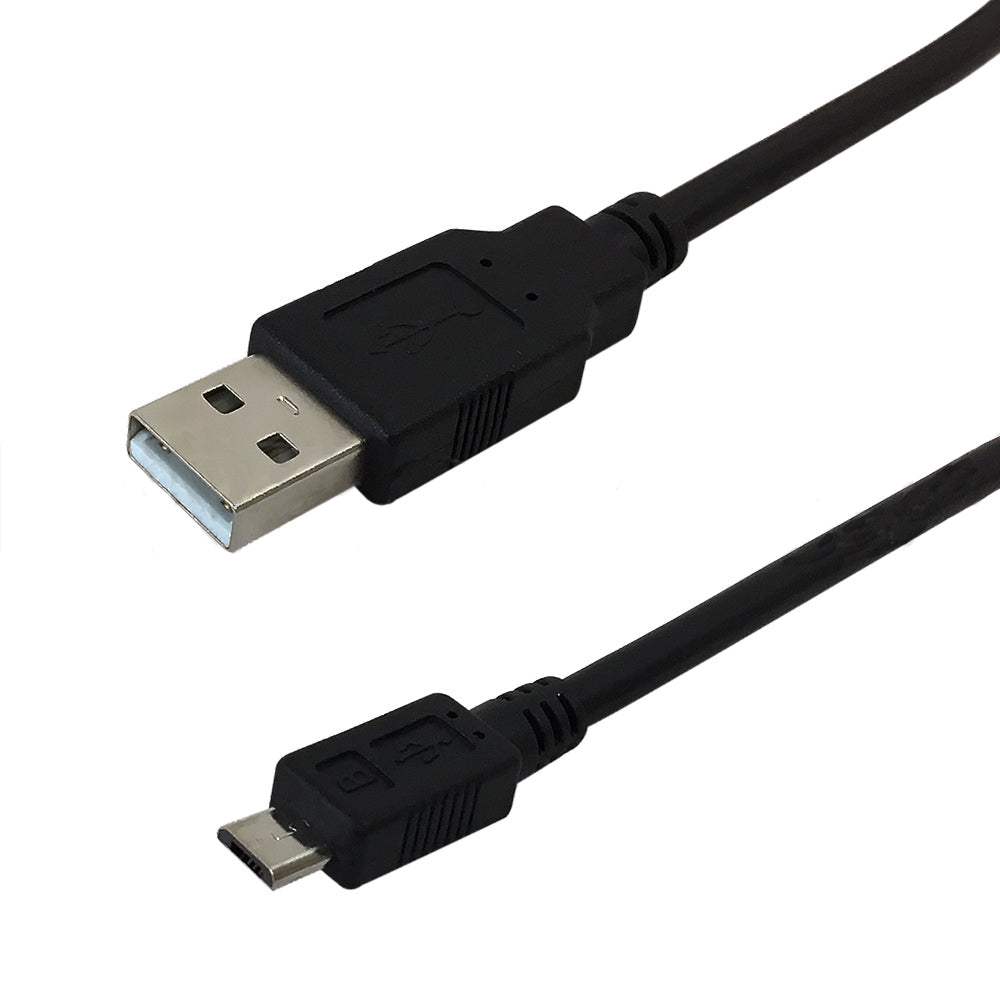

This USB 2.0 cable consists of a USB A male on one end and a USB Micro B male on the other end. It is typically used to charge or sync devices such as Samsung and other Android phones to a PC/laptop or USB charger.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Cable Diameter | 4.5 mm |
| Wire Gauge | 28AWG (data) / 24AWG (power) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shielding | 65% ALMG |
| Strain Relief | Molded PVC |
| Temperature Rating | 80℃ |
| Cable Voltage Rating | 30V |
| Connector(s) | |
| Connector A | USB 2.0 Type A Hi-Speed Male |
| Connector B | USB 2.0 Micro-B Hi-Speed Male |
| Performance | |
| Rating | USB 2.0 Hi-Speed Compliant Cable |
| Speed | 480 Mbps |
| Compatibility | Backwards Compatible with 1.0 |
| Mating Cycles | USB2.0 AM 1500 cycles USB2.0 Micro BM 10000 cycles |
| Approvals | |
| UL | Compliant - Cable |
| cUL | Compliant - Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 2ft | 3ft | 6ft | 10ft | 15ft |
|---|---|---|---|---|---|
| 0.05 lbs | 0.08 lbs | 0.10 lbs | 0.20 lbs | 0.30 lbs | 0.40 lbs |
