Description

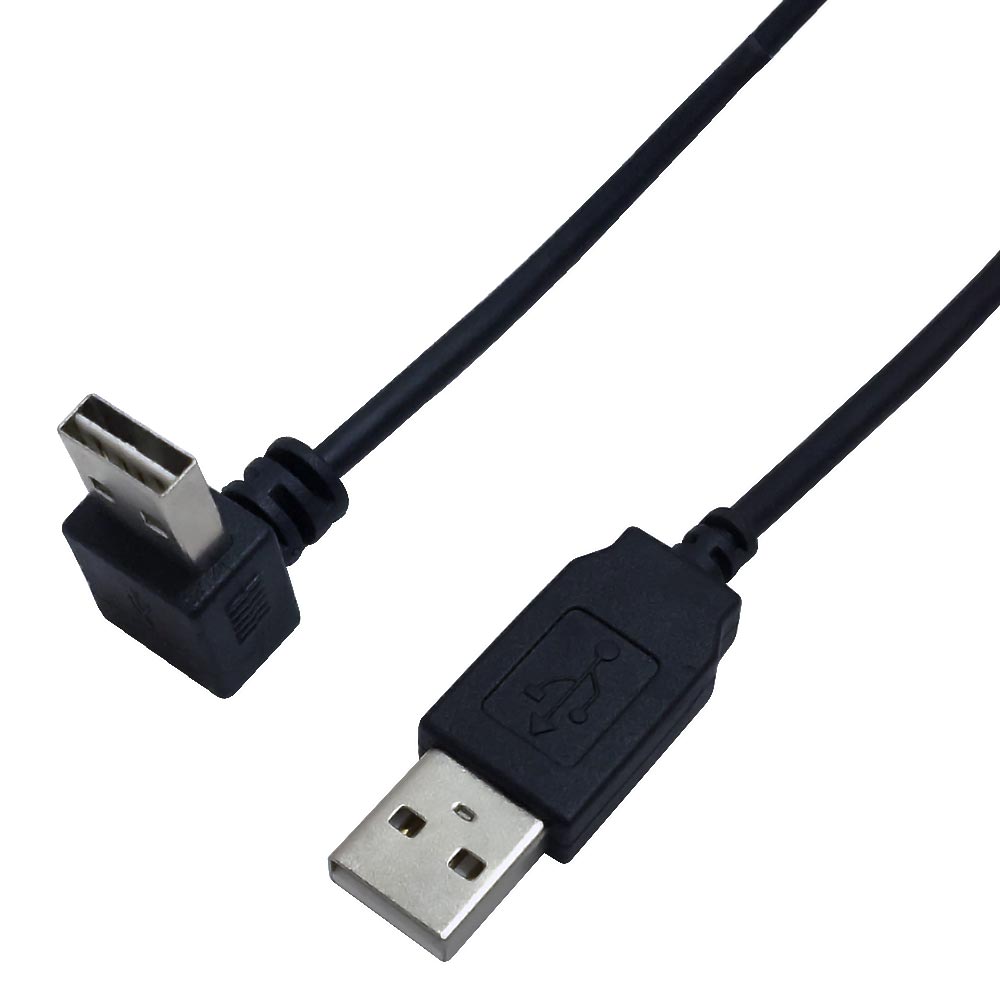

This USB 2.0 cable consists of a USB straight A male on one end and a USB A up angle or down angle A male on the other end. The angled end uses a reversible USB A male connector which allows it to be inserted in either an up angle or down angle exit. It is typically used to connect a USB peripheral to your computer such as a USB hub to a PC.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Cable Diameter | 3.5 mm |
| Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shielding | 100% Foil |
| Strain Relief | Molded PVC |
| Operating Temperature | 0 to 45 deg C (32 to 113°F) |
| Storage Temperature | -10 to 80 deg C (14 to 176°F) |
| Cable Voltage Rating | 30V |
| Connector(s) | |

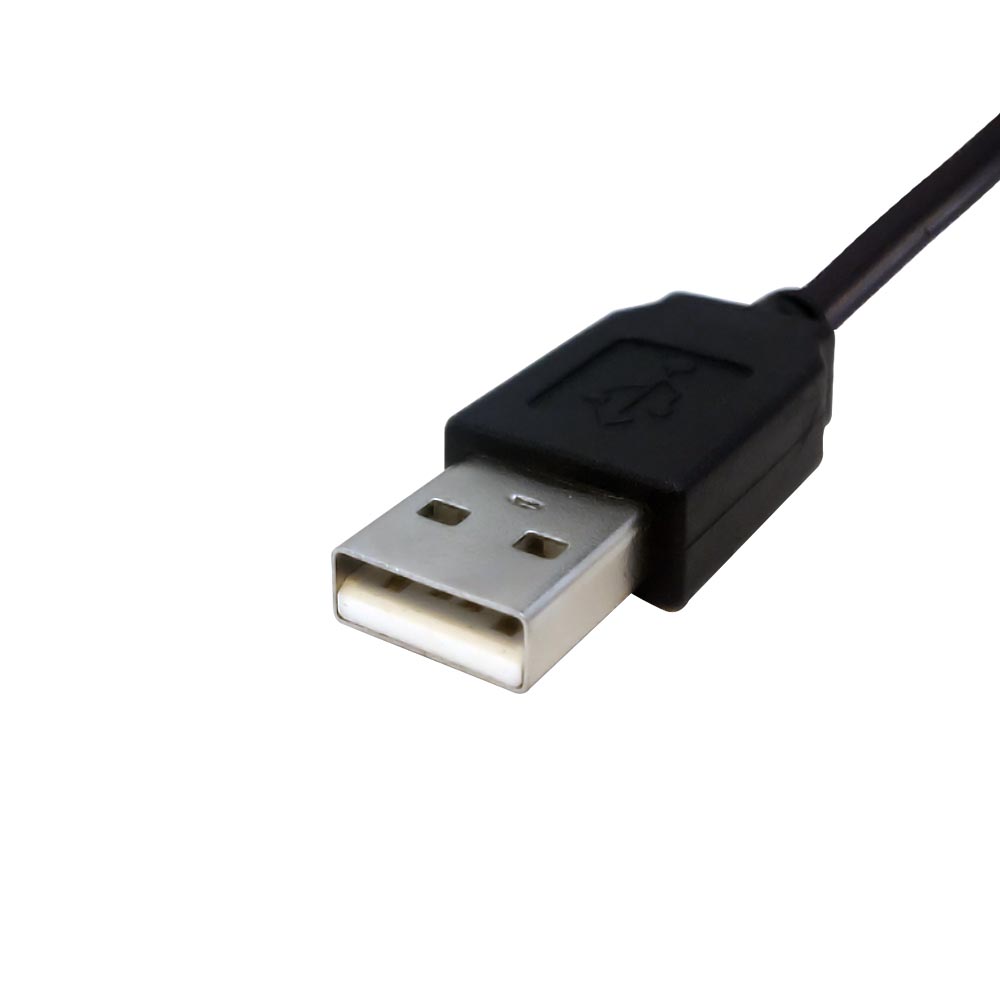

| Connector A | USB 2.0 Type A Straight Male |

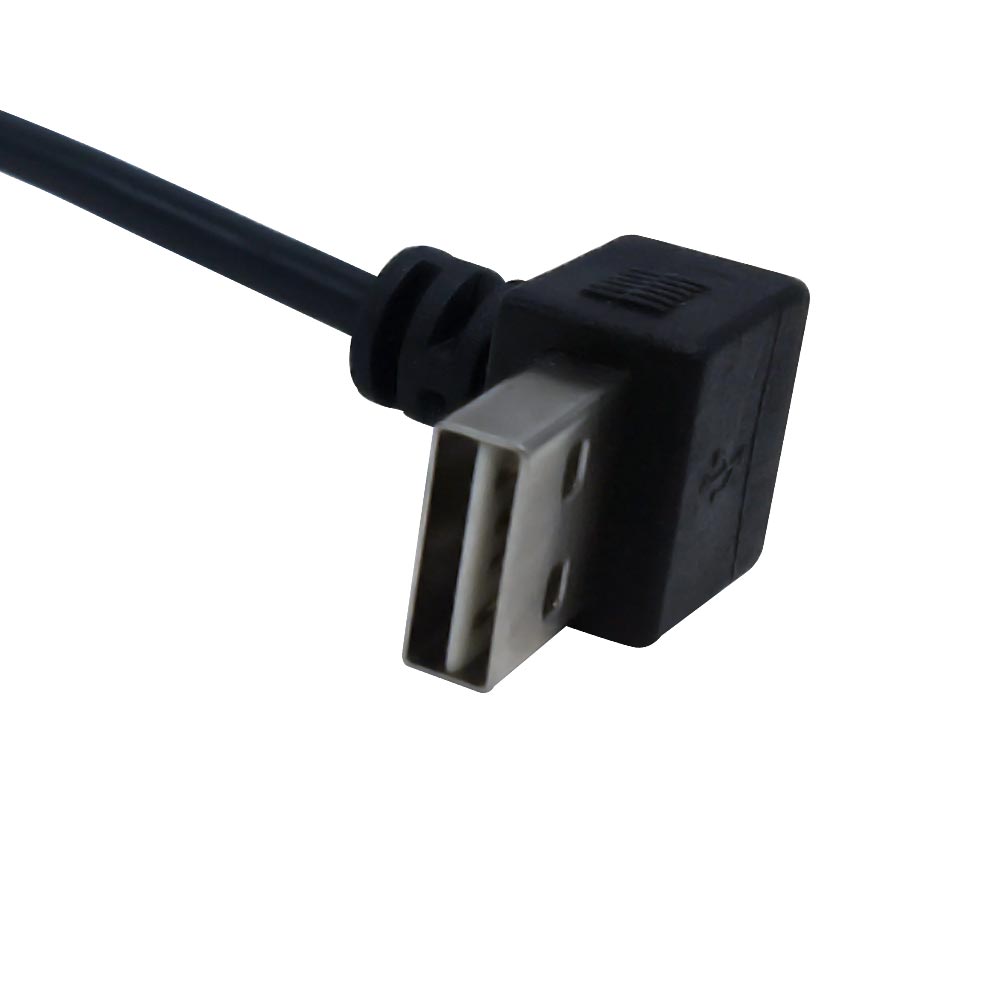

| Connector B | USB 2.0 Type A Up/Down Male |
| Performance | |
| Rating | USB 2.0 Hi-Speed Compliant Cable |
| Speed | 480 Mbps |
| Compatibility | Backwards Compatible with 1.0 |
| Approvals | |
| UL | Compliant - Cable |
| cUL | Compliant - Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 3ft | 6ft | 10ft | 15ft |
|---|---|---|---|---|
| 0.05 lbs | 0.15 lbs | 0.30 lbs | 0.50 lbs | 0.75 lbs |
