Description

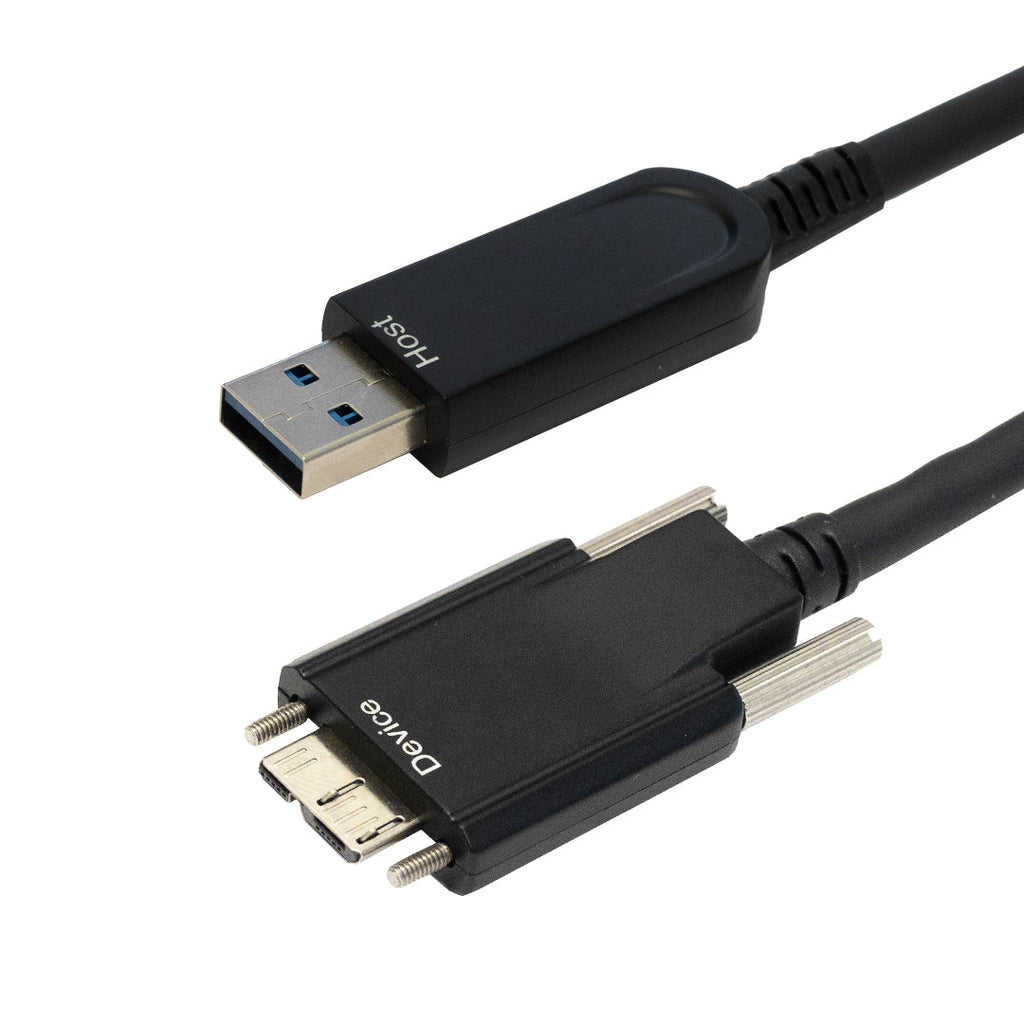

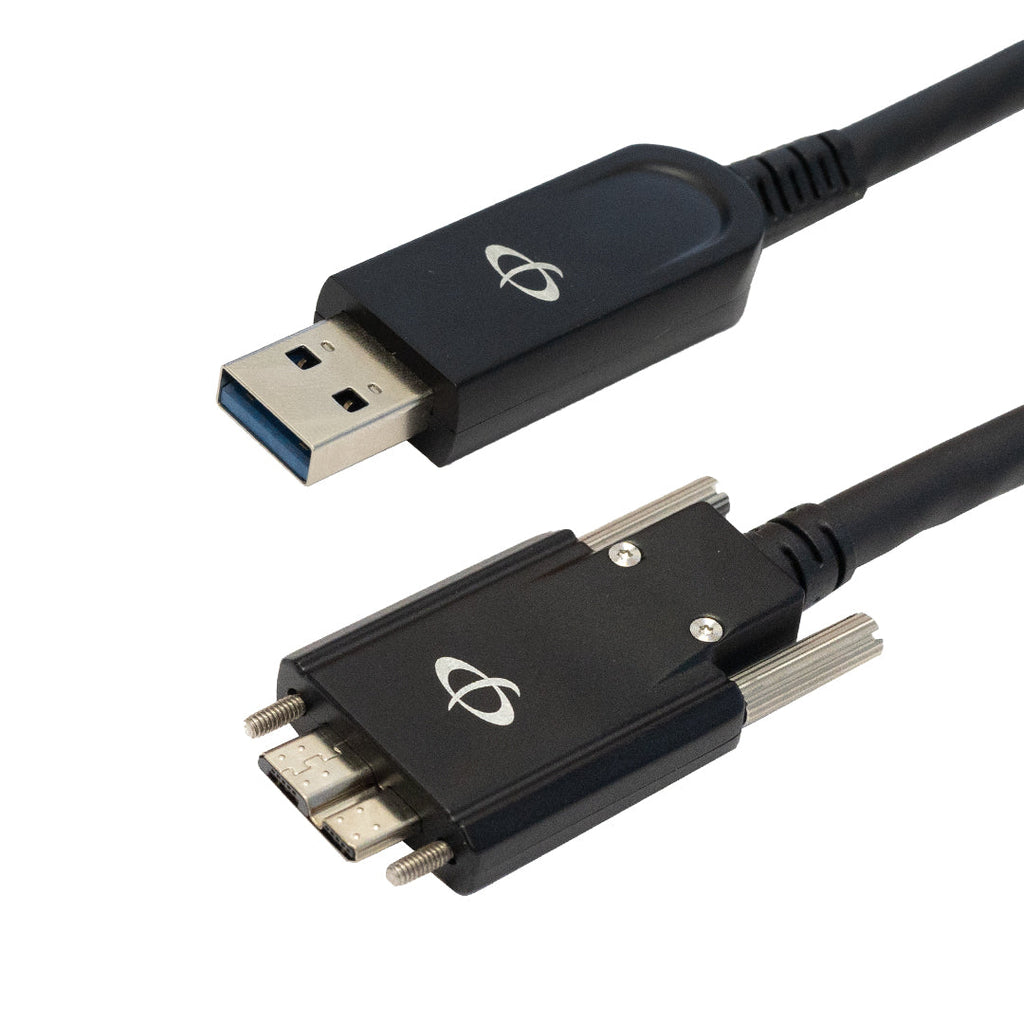

These active optical drag chain cables consist of a USB 3.1A male on one end and Micro-B male on other end. They are capable of transferring data at 10Gbps and support 5V 800mA of power. Ideal for industrial automation environments, these cables can be used in drag chains and have locking thumbscrews on the micro-B side for long term performance without accidental disconnects.
Features:
- Meet USB 3.1 Gen2 standards with a bandwidth of 10Gbps
- Support 5V 800mA max
- Plug and play operation
- Backwards compatible with USB2.0/1.1 standards
- AOC construction ensures no RF interference and stable performance
| Physical Characteristics | |
|---|---|
| Color |
Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Bending Radius (Mobile) | 232mm |
| Bending Radius (Fixed) | 116mm |
| Dragchain Capable (KK times of cycles) | 20 million (20KK) |
| Cable: Torsion Capable (KK times of cycles) | 10 million (10KK) |
| Connectors | |
| Connector A (Source) | USB 3.1A Male |
| Connector B (Device) | Micro-B Male |
| Performance | |
| Rating | USB 3.1 SuperSpeed – Gen 2 |
| Speed | 10 Gbps |
| Compatibility | Backwards Compatible Previous Generation USB (2.0 and 1.1) |
| Power | 5V 800mA |
| Flex Cycle | 20 Million |
| Approvals | |
| CE | Compliant |
| FCC | Compliant |
| Environmental | |
| RoHS | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | 3 Year Warranty |
