Description

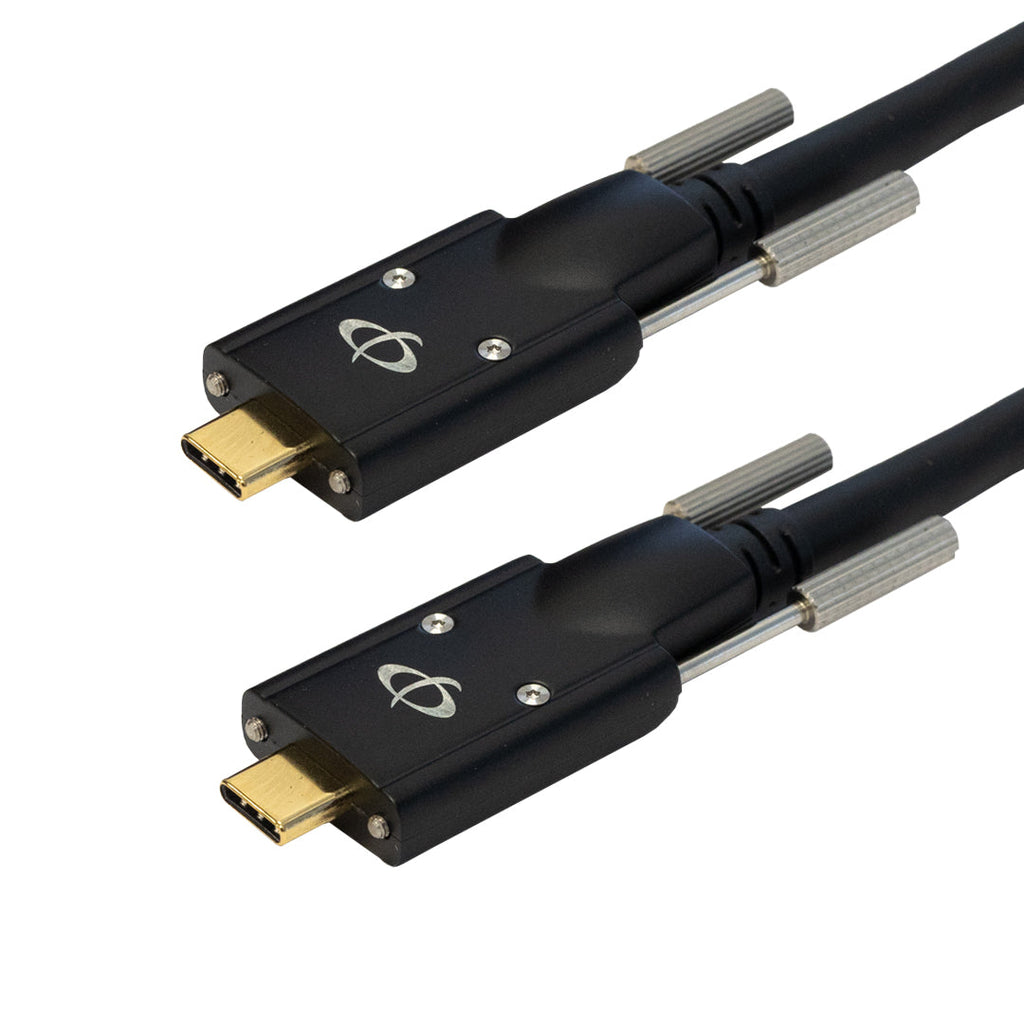

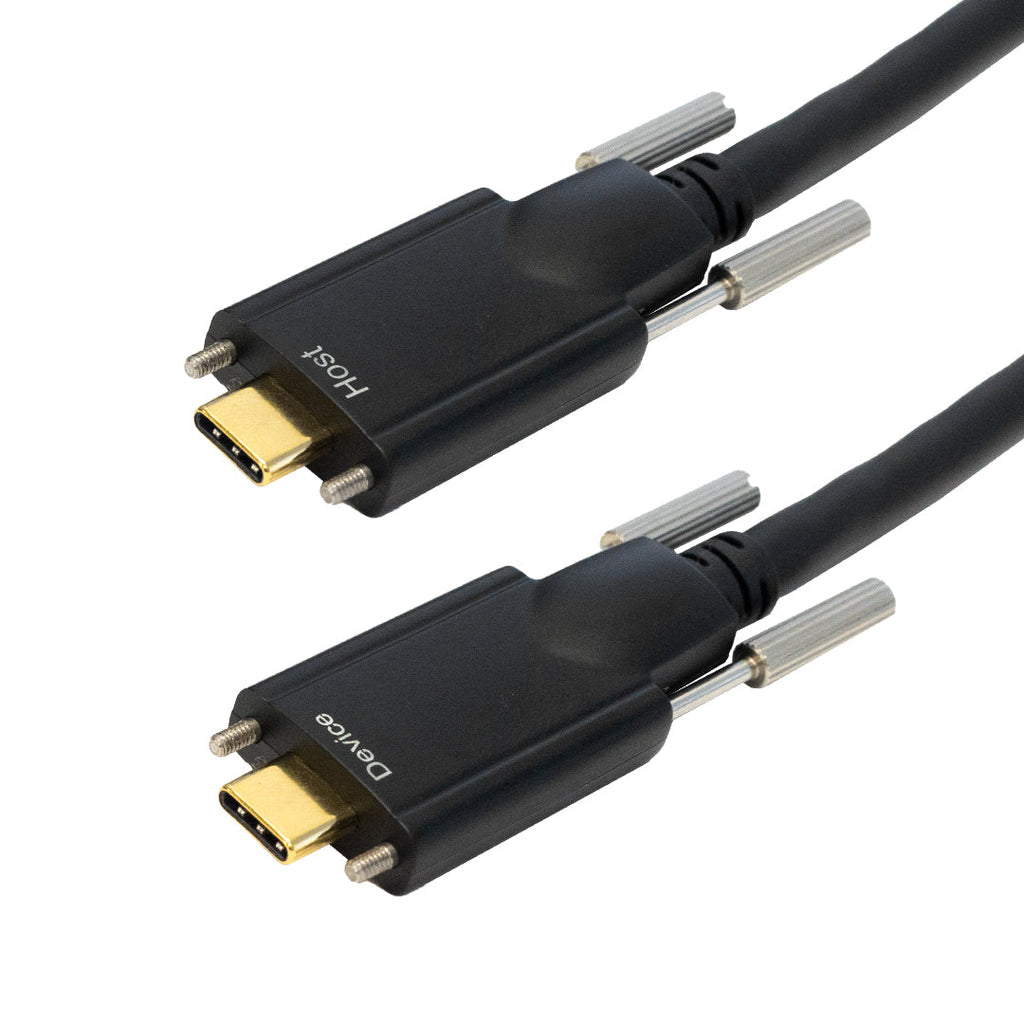

These active optical drag chain cables consist of a USB 3.1 Type-C male on the both ends. They are capable of transferring data at 10Gbps and support 5V 800mA of power. Ideal for industrial automation environments, these cables can be used in drag chains and have locking thumbscrews on the both sides for long term performance without accidental disconnects.
Features:
- Meet USB 3.1 Gen2 standards with a bandwidth of 10Gbps
- Support 5V 800mA max
- Plug and play operation
- Extends USB 3.0 & USB 2.0 super speed devices up to 50 m
-
Supports Windows & Mac operating systems
- AOC construction ensures no RF interference and stable performance
| Physical Characteristics | |
|---|---|
| Color |
Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Dragchain Capable (KK times of cycles) | 20 million (20KK) |
| Cable Torsion Capable (KK times of cycles) | 10 million (10KK) |
| Bending Radius (Mobile) | 232mm |
| Bending Radius (Fixed) |
116mm |
| Connectors | |
| Connector A (Source) | USB 3.1 Type-C Male |
| Connector B (Device) | USB 3.1 Type-C Male |
| Performance | |
| Rating | USB 3.1 SuperSpeed – Gen 2 |
| Speed | 10 Gbps |
| Power | 5V 800mA |
| Approvals | |
| CE | Compliant |
| FCC | Compliant |
| Environmental | |
| RoHS | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | 3 Year Warranty |
