Product Weight
Description
- Description
- Spec Sheets
Description

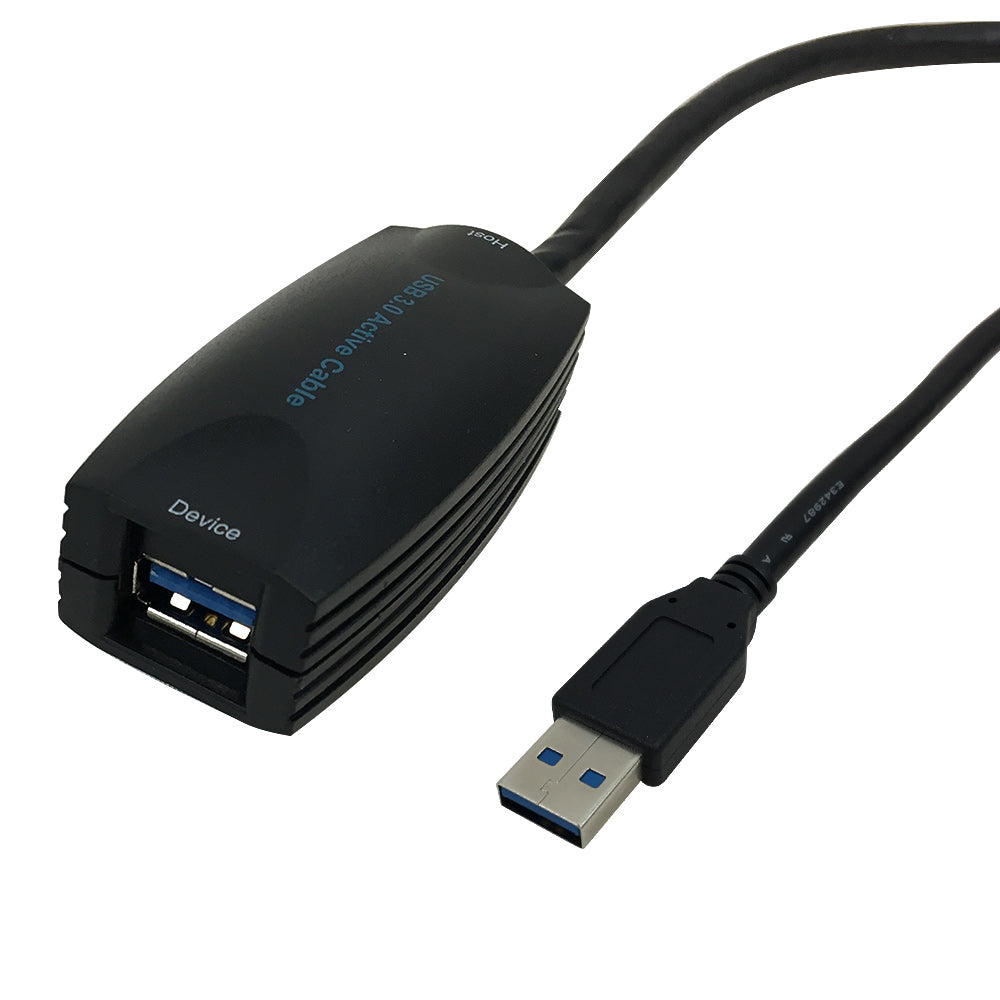

This active USB extension cable consists of a USB A male on one end and a USB A female on the other end. It is used to extend the distance between a USB 3.0 device and a computer. Unlike passive extension cables, this USB active extension cable has bus powered circuitry which enables it to reach distances beyond the length limits of standard passive USB cables.
This cable is directional and will only work when the male end is connected to the computer and the female end is connected to the device.
NOTE: only the 16ft cable supports cascading with 1x1 connection.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Wire Gauge | 28AWG Data, 24AWG Power |
| Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shielding | 100% Aluminum-Mylar Foil, 65% Tinned Copper Braid |
| Strain Relief | Molded PVC |
| Connector(s) | |
| Connector A | USB 3.0 Type A Hi-Speed Male |
| Connector B | USB 3.0 Type A Hi-Speed Female |
| Performance | |
| Rating | USB 3.0 Hi-Speed Compliant Cable |
| Speed | 5 Gbps |
| Compatibility | Backwards Compatible with 2.0 and 1.0 |
| Maximum Length |
Can be cascaded one time with another USB-E316 Cables |
| System Requirements | |
| Windows | Windows 98, ME 2000/XP, Vista, 7, 8, 10 |
| Apple Mac | OX 9 and OS X |
| Linux, Unix | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty |
3-Years Limited Warranty |
