Description
Overview

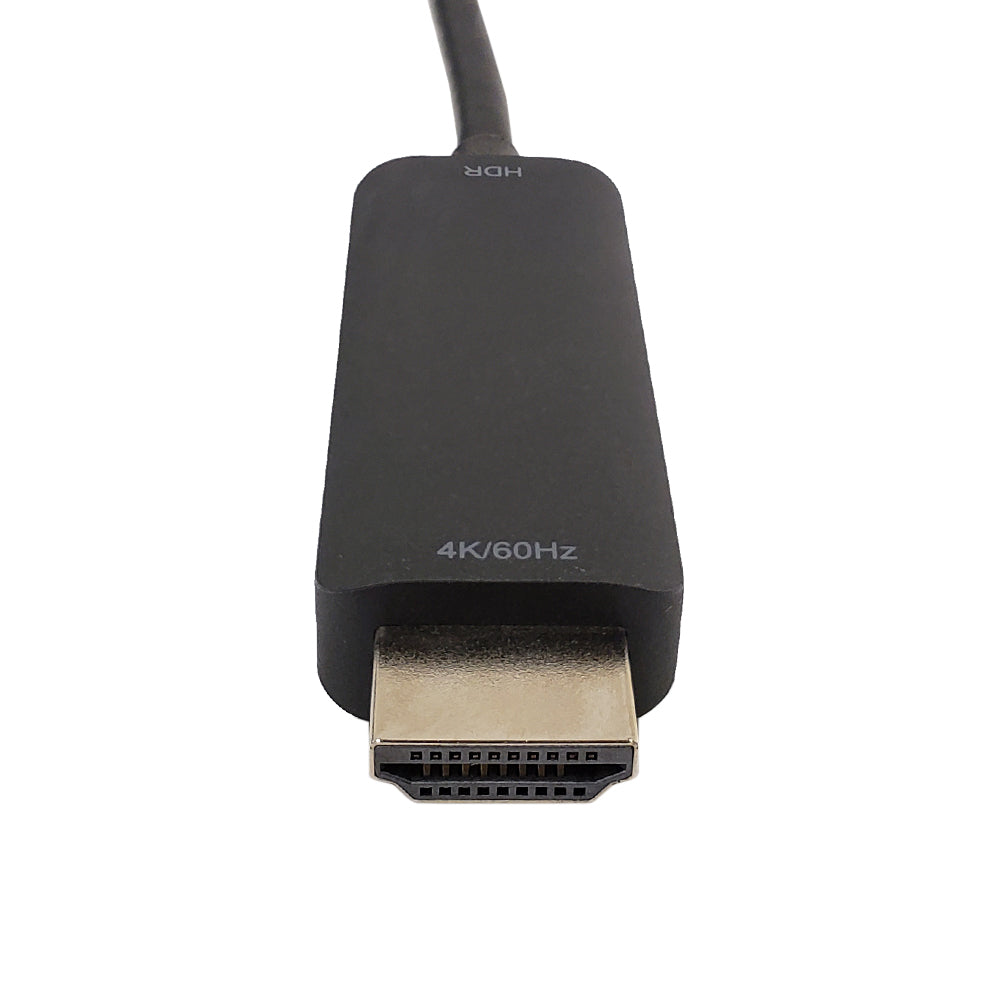

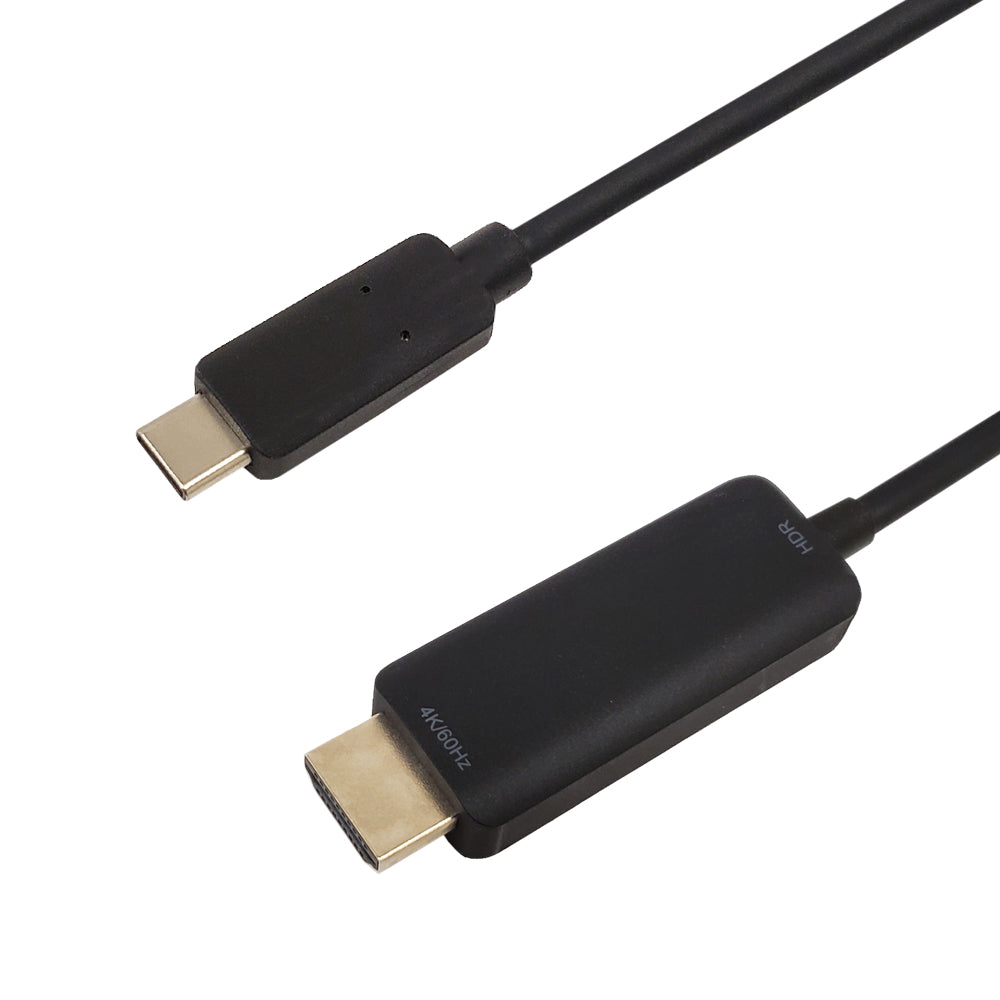

This Type-C male to HDMI male cable supports resolutions of Ultra HD 4K x 2K at 60Hz. It is typically used to connect a Type-C source (Smartphone, PC, Laptop, Mac Computer, Mac Laptop, etc.) to an HDMI display (TVs, monitors, projectors, etc.). This cable is uni-directional, therefore it will only work from a Type-C source to a HDMI display and not in the reverse direction.
|
|
Ultra High-Definition ResolutionThis cable supports maximum video resolutions up to a breath-taking Ultra HD 4K x 2K (4096 x 2160) @ 60Hz. Stream from AnywhereStream TV shows, movies, sports, games and show photos/videos directly from your devices onto the display! DisplayPort Alt ModeThis adapter works on all Type-C hosts that support DP 1.2 Alt mode.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Jacket Material | TPE |
| Cable Type | Active |
| Connectors | |
| Connector A | Type-C Male |
| Connector B | HDMI Male |
| Performance | |
| Bandwidth | 18 Gbps |
| Supports | DP1.2 Alt mode with max 4 lanes 21.6Gbps |
| HDMI Resolution | Ultra HD 4k x 2k (4096 x 2160) @ 60Hz Supports 8/10/12 bit color depth output Supports output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2 Supports HDR Supports HDCP2.2/1.4 |
| Power Source | USB Bus Power (No External Power Supply) |
| Certifications | |
| FCC | Compliant |
| CE | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Packaging Quantity | 1 |
| Warranty | |
| Warranty | Lifetime Limited |
| 3ft | 6ft | 10ft | 15ft |
|---|---|---|---|
| 0.19 lbs | 0.3 lbs | 0.46 lbs | 0.64 lbs |
