Overview

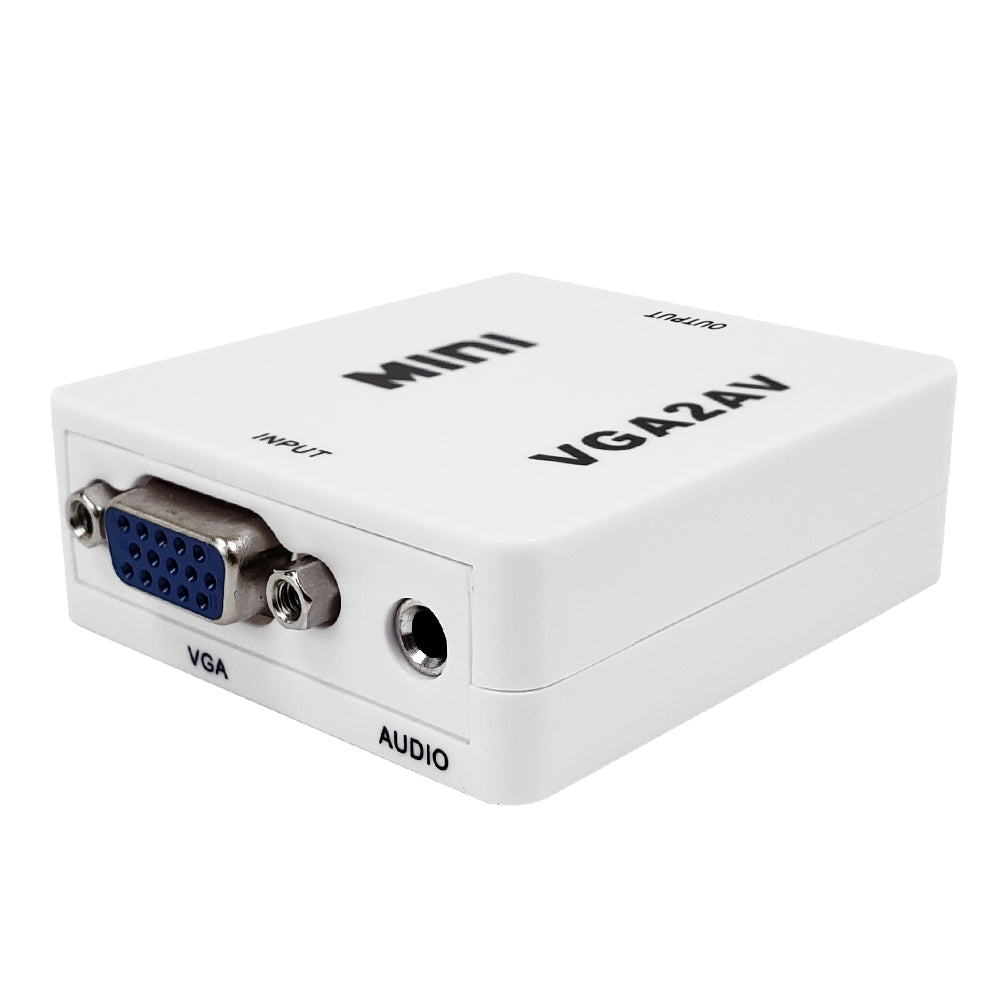

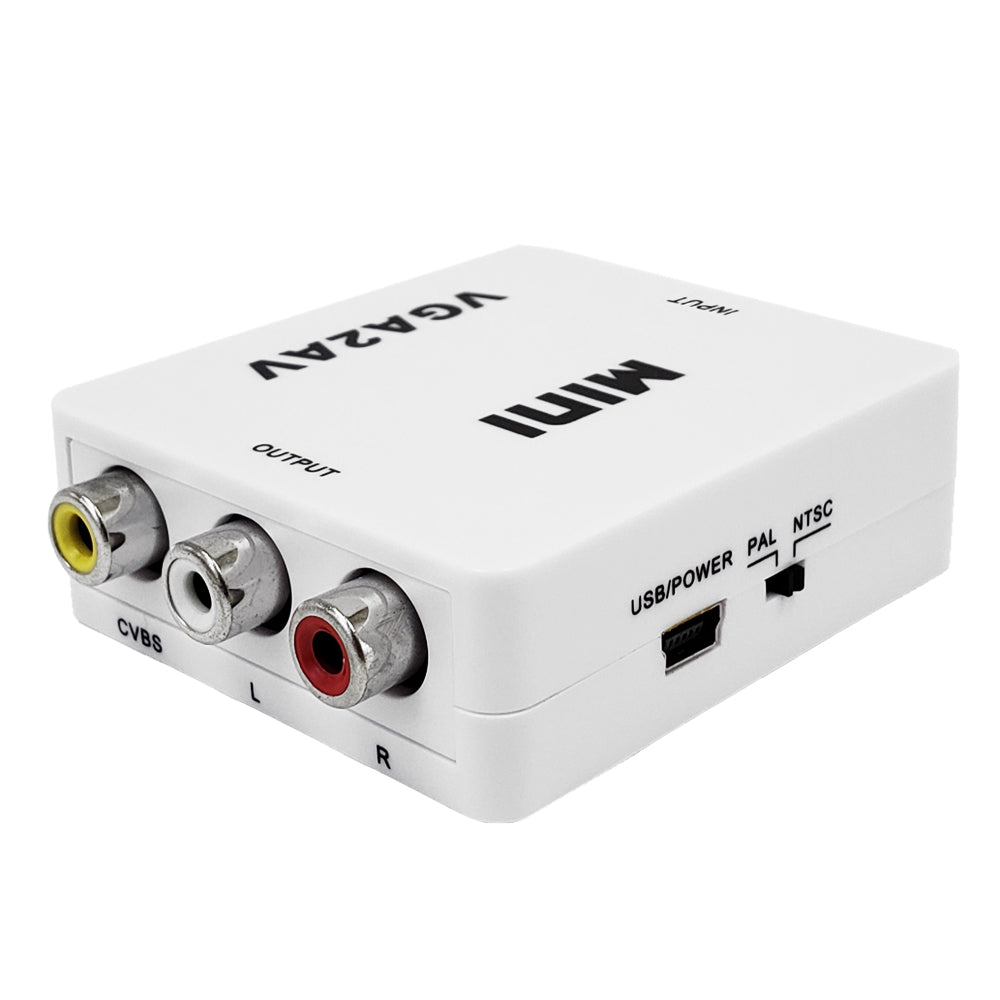

This converter consists of a composite VGA video input, 3.5mm input, a composite RCA video output and a RCA L/R audio output. It is used to convert a VGA source such to a composite video, or S-Video display. The converter can typically be used in video conferences, home theatres, business presentations or lecture rooms.
Application
| Physical Characteristics | |
|---|---|
| Color | White |
| Housing | Plastic |
| Operating Temperature | 0℃ ~ 40℃ |
| Power | |
| Power Supply | USB |
| Power Consumption | 2.5W (Max) |
| Connector(s) | |
| Output | 1 - Composite RCA Female 1 - L/R Audio RCA Female |
| Input | 1 - Composite VGA Female 1 - 3.5mm Female |
| Performance | |
| Supports | 640x480, 800x600, 1024x768, 1280x768, 1280x1024, 1360x768, 1400x1050, 1440x900, 1680x1050, 1600x1200, 1920x1080 |
| PAL | Compliant |
| NTSC | Compliant |
| Frequency Bandwidth | 165MHz |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.1 lbs [0.1kg] |
| Package Weight | 0.7 lbs [0.3kg] |
| Contents | |
| Included in Package | 1 - Converter |
| 1 - USB Cable | |
| 1 - User Manual | |
